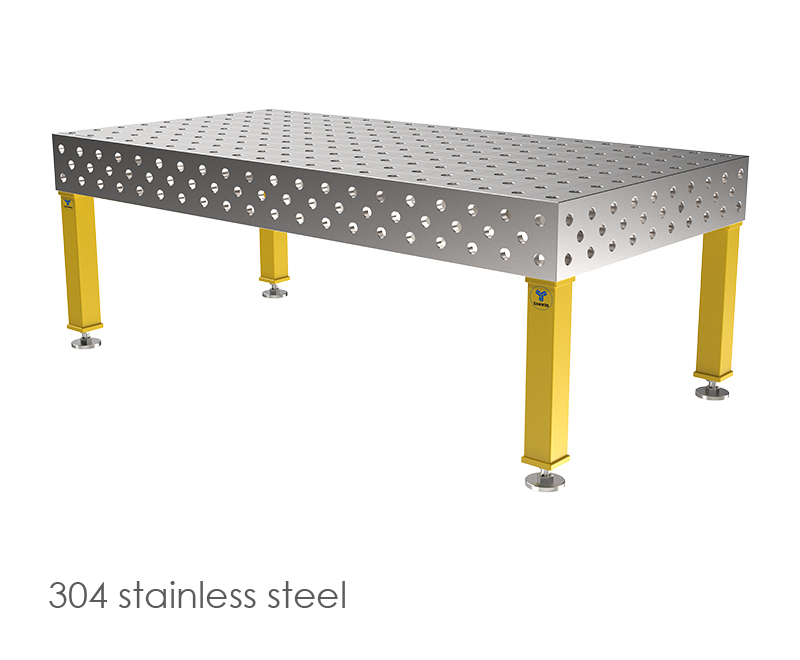

D28-3D SUS304 Welding Table (B0)

< >

Product Parameters

Description:D28-3D SUS304 Welding Table , Standard grid 100x100mm

• Material: 304 Stainless Steel

• Surface: Passivated

• Hardness: Steel material hardness

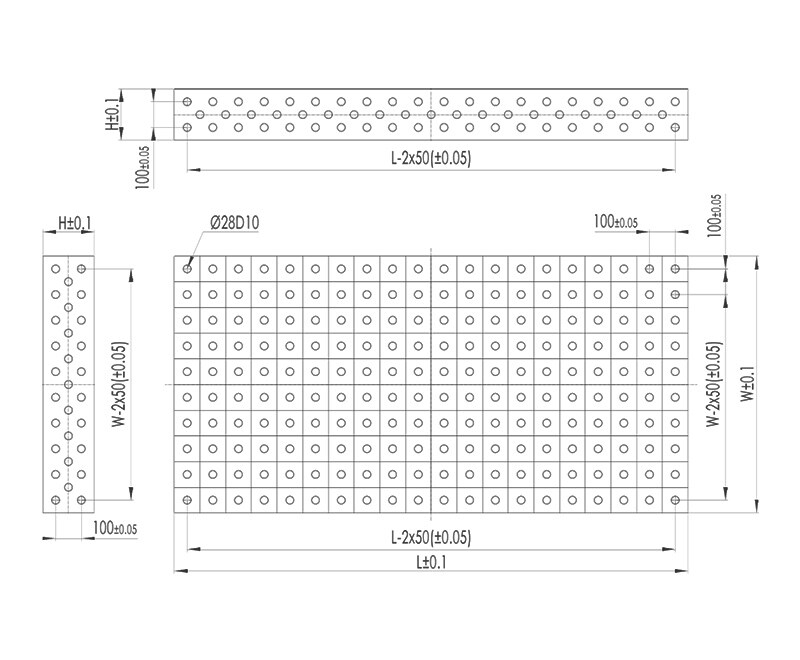

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅28D10(+0.149/+0.065) □ Flatness: 0.1mm/m²

∥ Parallelism: 0.1/1000 (mm) ⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:h=24-25 (mm)

• Worktop with D28 system bores in a 100 x 100 mm grid, The 4 sides of the table adopt a 3-row hole layout.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

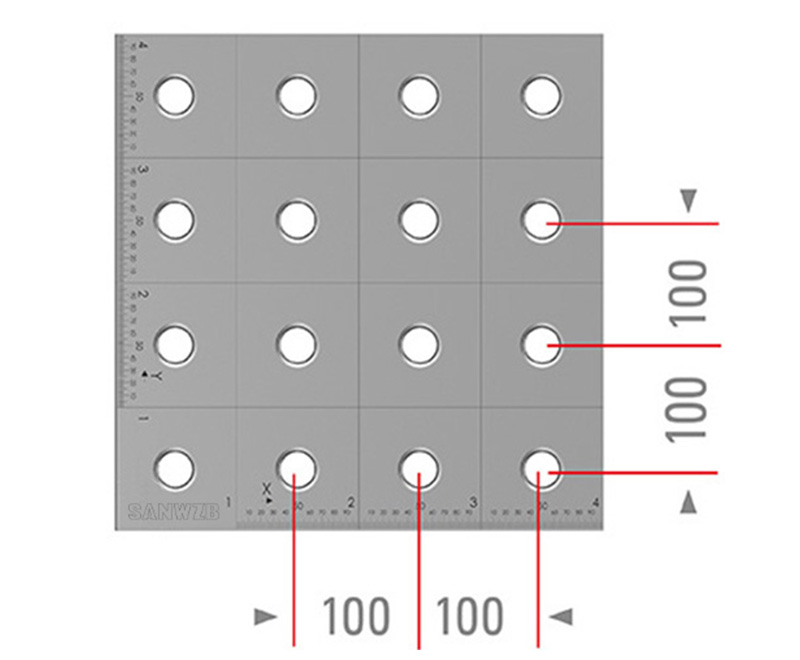

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.

※ The measurement unit is based on Metric system, Imperial system is available on request.

＞＞ 2D Table

＞ Diagonal Grid table

|

|

|

|

SUS304 table

Casting table

● Commonly used Specifications and Sizes:

No.	OD(LxWxH)	Order Code	Product Description	Weight（kg）	Leg QTY
1	1000x1000x200	SWK28-10201-B0	1000x1000x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	342.0	4
2	1200x1200x200	SWK28-10202-B0	1200x1200x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	434.0	4
3	1500x1000x200	SWK28-10203-B0	1500x1000x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	475.0	4
4	1500x1500x200	SWK28-10204-B0	1500x1500x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	680.0	4
5	2000x1000x200	SWK28-10205-B0	2000x1000x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	625.0	4
6	2000x1500x200	SWK28-10206-B0	2000x1500x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	860.0	4
7	2400x1200x200	SWK28-10207-B0	2400x1200x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	880.0	6
8	3000x1500x200	SWK28-10208-B0	3000x1500x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	1,380.0	6
9	4000x2000x200	SWK28-10209-B0	4000x2000x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	2,310.0	11
10	3000x2000x200	SWK28-10210-B0	3000x2000x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	1,780.0	8
11	2000x2000x200	SWK28-10211-B0	2000x2000x200,D28-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm	1,176.0	5
