D28-3D Steel Welding Table (X1)

>D22 >D16

< >

Product Parameters

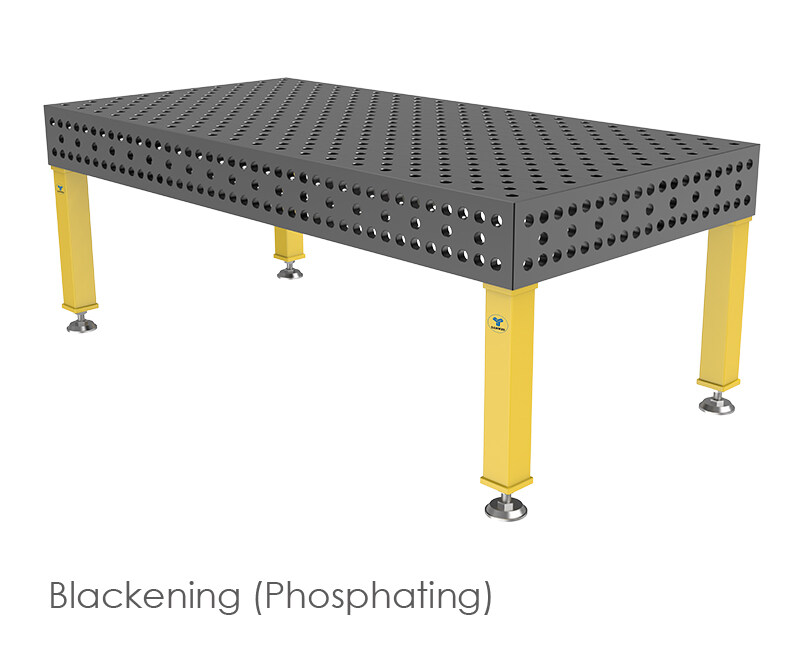

Description:D28-3D Steel Welding Table with Blackening, Diagonal grid 100x100mm

• Material: Q355B

• Surface: Blackening (Phosphating)

• Hardness: Overall Hardness HV 280-320

• Tolerance parameters

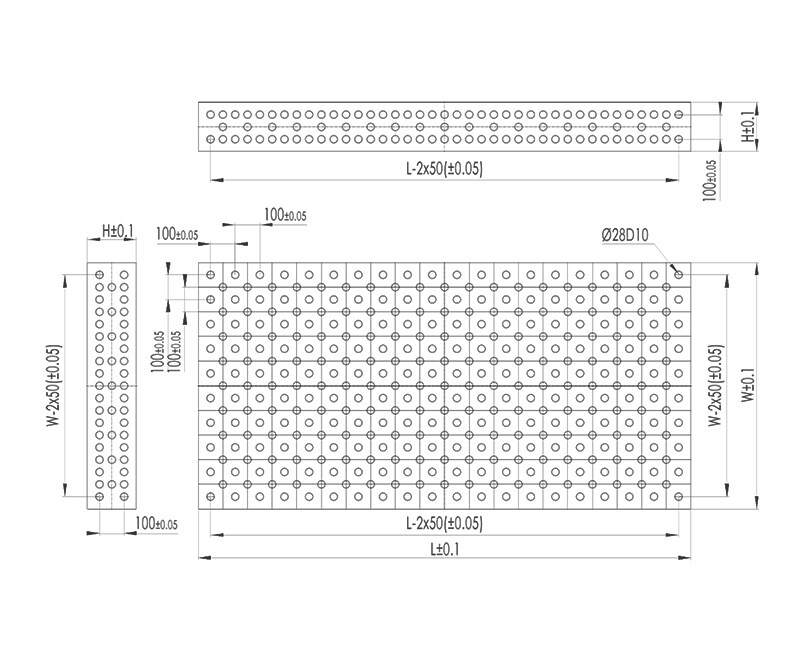

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅28D10(+0.149/+0.065) □ Flatness: 0.1mm/m²

∥ Parallelism: 0.1/1000 (mm) ⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:h=24-25 (mm)

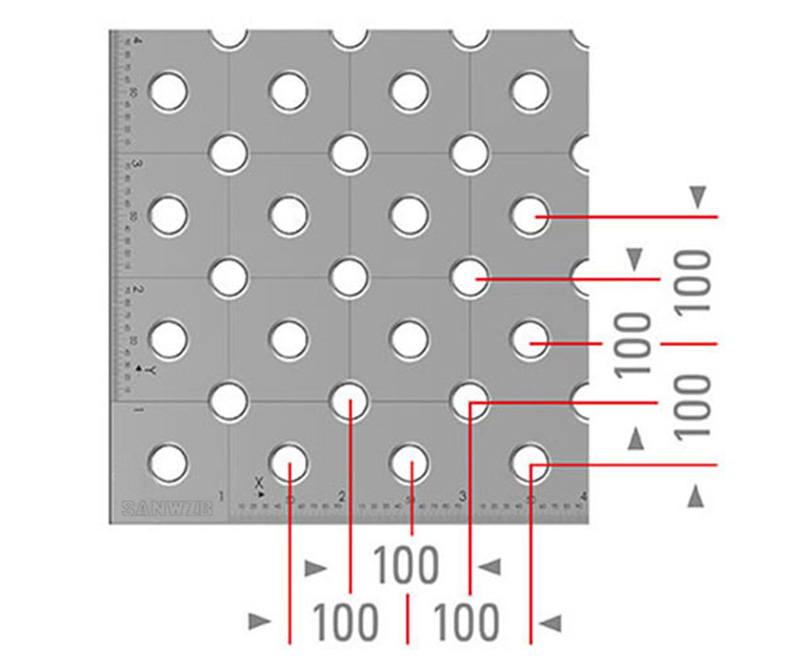

• Worktop with D28 system bores in a double 100 x 100 mm grid(Diagonal grid 100x100mm), resulting in approx. 80 % more clamping options than Standard and conventional worktables.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.

※ The measurement unit is based on Metric system, Imperial system is available on request.

＞＞ 2D Table

＞ Standard Grid table

Blackening

|

|

SUS304 table

|

Casting table

● Commonly used Specifications and Sizes:

No.	OD(LxWxH)	Order Code	Product Description	Weight（kg）	Leg QTY
1	1000x1000x200	SWK28-10001-X1	1000x1000x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	342.0	4
2	1200x1200x200	SWK28-10002-X1	1200x1200x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	434.0	4
3	1500x1000x200	SWK28-10003-X1	1500x1000x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	475.0	4
4	1500x1500x200	SWK28-10004-X1	1500x1500x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	680.0	4
5	2000x1000x200	SWK28-10005-X1	2000x1000x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	625.0	4
6	2000x1500x200	SWK28-10006-X1	2000x1500x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	860.0	4
7	2400x1200x200	SWK28-10007-X1	2400x1200x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	880.0	6
8	3000x1500x200	SWK28-10008-X1	3000x1500x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	1,380.0	6
9	4000x2000x200	SWK28-10009-X1	4000x2000x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	2,310.0	11
10	3000x2000x200	SWK28-10010-X1	3000x2000x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	1,780.0	8
11	2000x2000x200	SWK28-10011-X1	2000x2000x200,D28-3D steel welding table,with Blackening (Phosphating),Diagonal grid 100x100mm	1,176.0	5
