D28-3D Octagonal Table (B)

>D22 >D16

< >

Product Parameters

Description:D28-3D Octagonal Welding Table,Standard grid 100x100mm

• Material:Q355B

• Surface and Hardness:

① Painting(Non-working surface) ② Blackening(Phosphating) ①②Overall Hardness HV 280-320③ Nitriding(Plasma):The comprehensive hardness HV280-320, Metallographic hardening layer hardness ＞HV450.Nitriding depth 0.25-0.35 mm,prevent welding splashing.

• Tolerance parameters

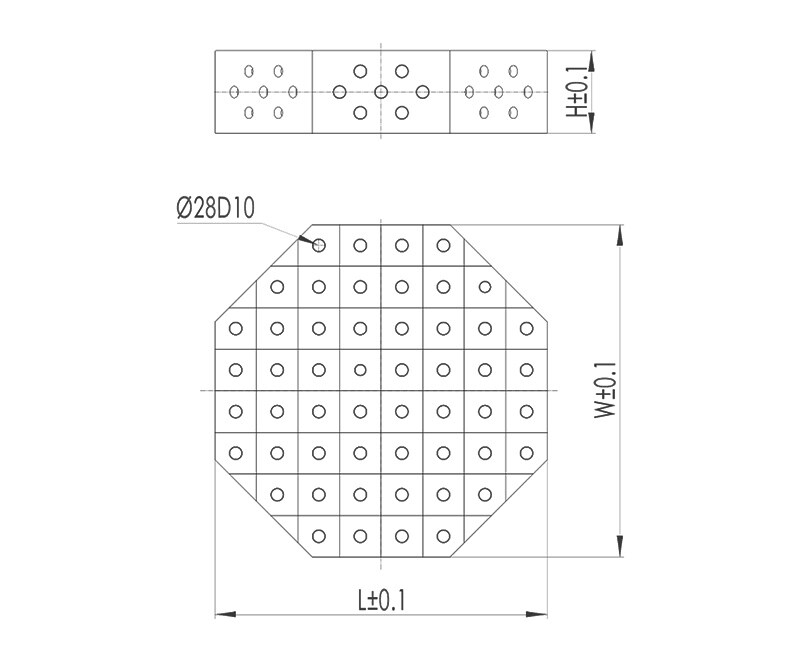

□ L^±0.1 x W^±0.1 x 200^±0.1(mm) ○ Hole: ∅28D10(+0.149/+0.065) □ Flatness: 0.1mm/m²

∥ Parallelism: 0.1/1000 (mm) ⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:24-25 (mm)

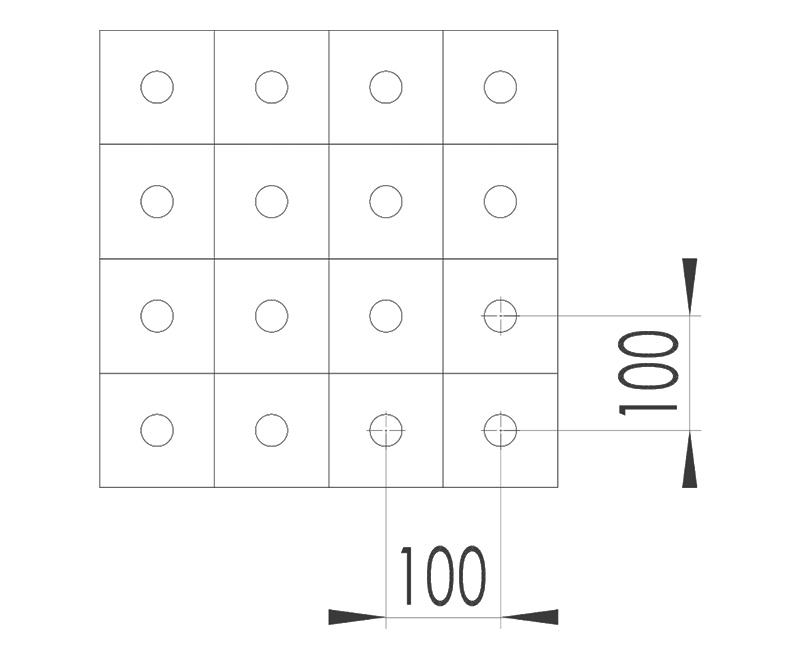

• Worktop with D28 system bores in a 100 x 100 mm grid.

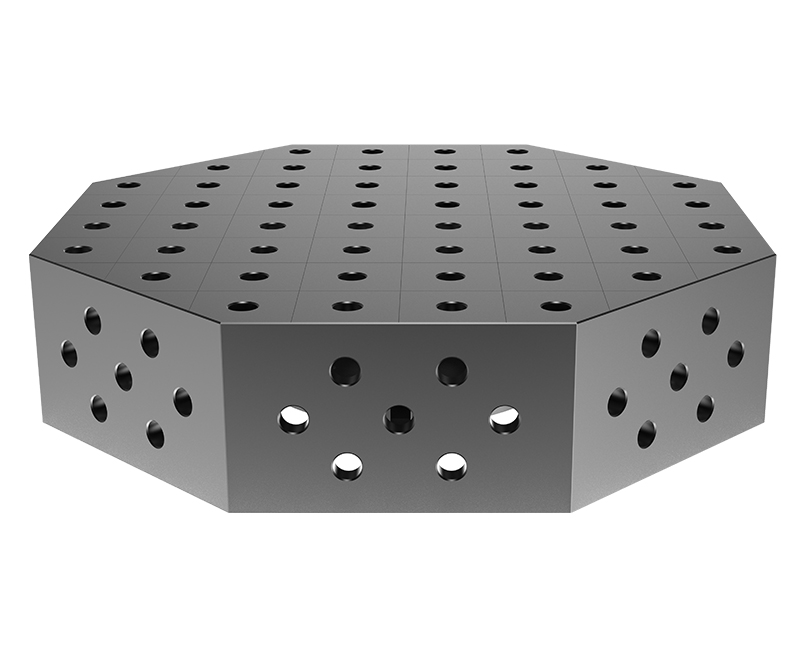

• There are universal mounting holes on the back of the table,Through the conversion of the flange plate, you can adapt to the different installation mechanism,Also, there are holes installed to support the legs.

• SANWZB logo recessed in the upper surface of the table.

※ The measurement unit is based on metric system, imperial system is available on request.

＞＞ 2D Table

● Commonly used Specifications and Sizes:

No.	Product Description	OD(LxWxH) mm	Order Code (Painting)	Order Code (Blackening)	Order Code (Nitriding)	Weight（kg）
1	D28-3D Octagonal Welding Table	800x800x200	SWK28-12001-B0	SWK28-12001-B1	SWK28-12001-B2	224.0
2	D28-3D Octagonal Welding Table	1000x1000x200	SWK28-12002-B0	SWK28-12002-B1	SWK28-12002-B2	310.0
3	D28-3D Octagonal Welding Table	1200x1200x200	SWK28-12003-B0	SWK28-12003-B1	SWK28-12003-B2	392.0
4	D28-3D Octagonal Welding Table	1500x1500x200	SWK28-12004-B0	SWK28-12004-B1	SWK28-12004-B2	622.0
5	D28-3D Octagonal Welding Table	2000x2000x200	SWK28-12005-B0	SWK28-12005-B1	SWK28-12005-B2	965.0
