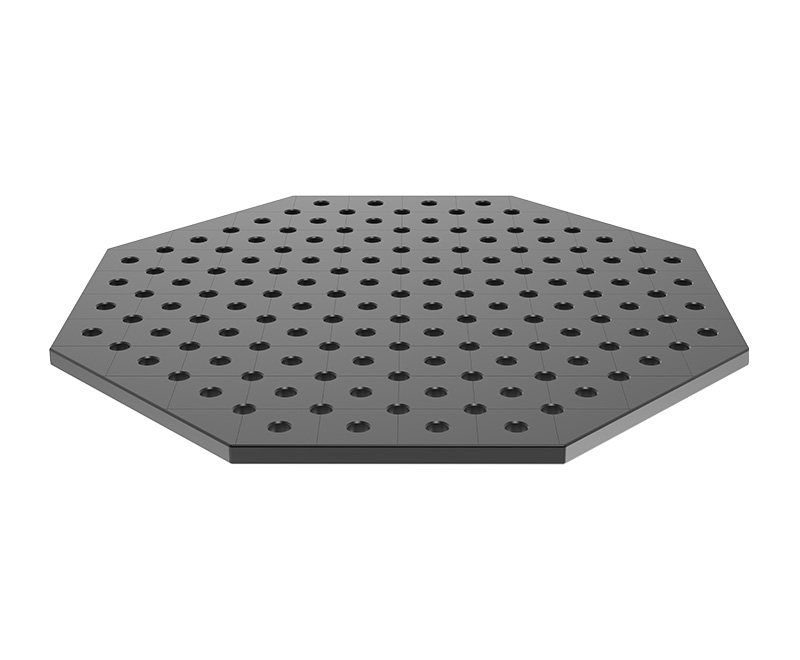

D28-Clamping and adapter plate (X)

< >

Product Parameters

Description:D28 Clamping and adapter plate, Diagonal grid 100x100mm

• Material: High carbon steel

• Tolerance parameters

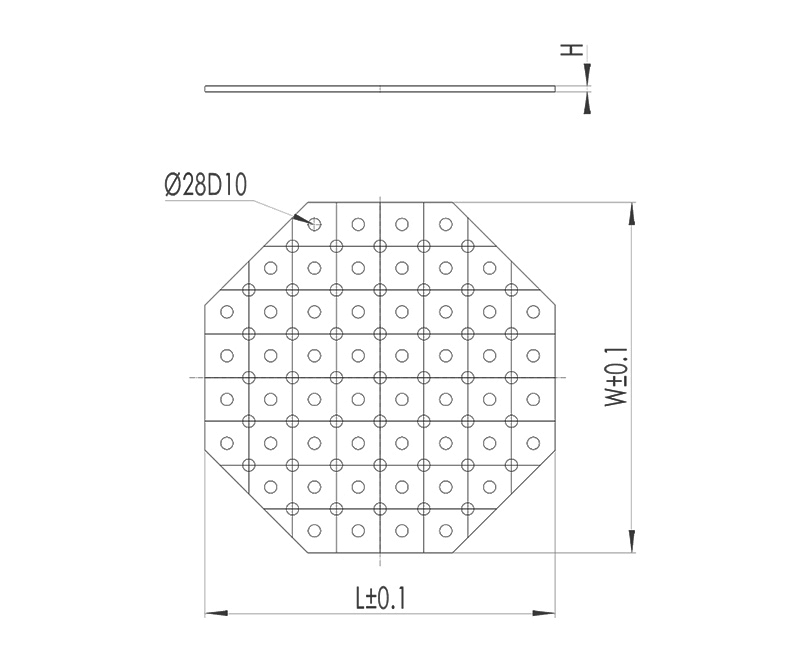

□ L^±0.1 x W^±0.1 x H(mm) ○ Hole: ∅28D10（+0.149/+0.065） □ Flatness: 0.1～0.2mm/m²

∥ Parallelism: 0.1/1000 (mm) ≒ Finished plate thickness:H=24.5-25.5 (mm)

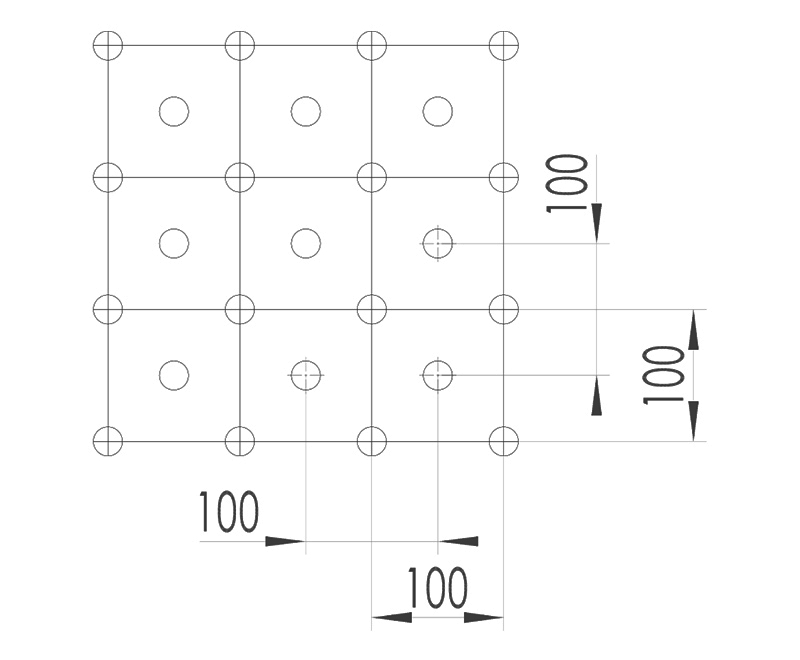

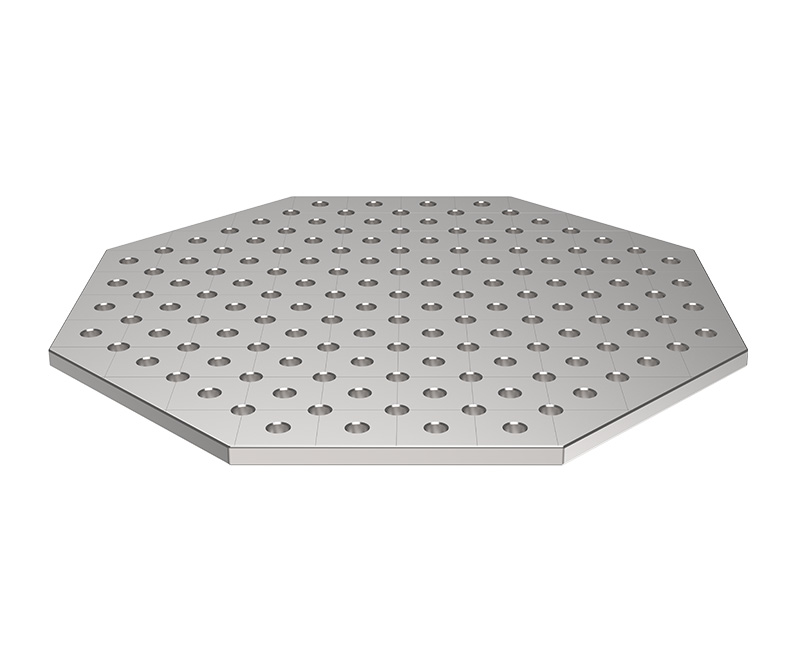

• Worktop with D28 system bores in a 100 x 100 mm Diagonal grid

• All system bores with protective countersink, perfect design and ultimate functionality

• SANWZB logo recessed in the upper surface of the table.

• Hardness

① Blackening(Phosphating):Overall Hardness HV 280-320② Nitriding (Plasma):The comprehensive hardness HV280-320, Metallographic hardening layer hardness ＞HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing③ Plating(Hard Chrome):Comprehensive Hardness: HV 280-320,Surface hardness HV> 600

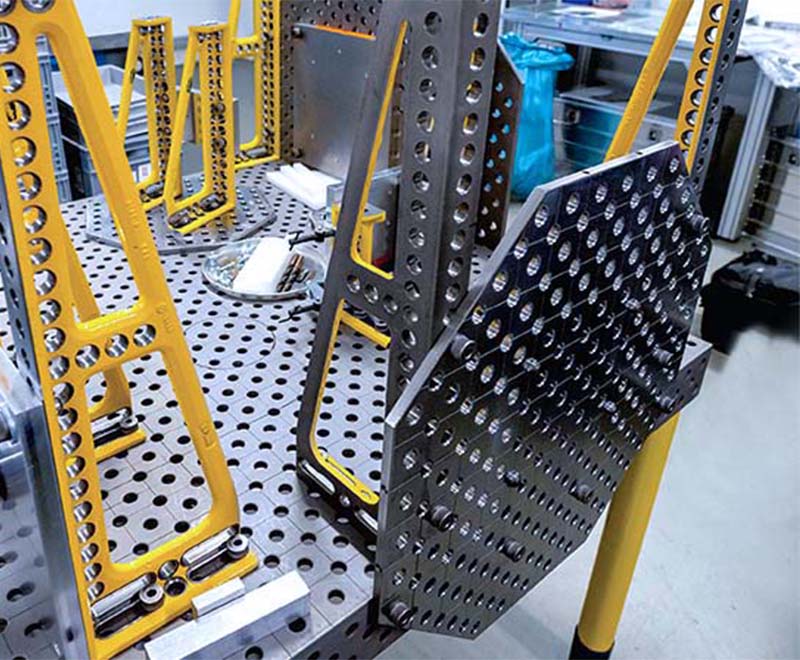

• Used in combination with 3D welding tables and welding positioners.

• SANWZB logo recessed in the upper surface of the table.

● Commonly used Specifications and Sizes:
No.
Product Description
OD(LxWxH) mm
Order Code (Blackening)
Order Code (Nitriding)
Order Code (Hard Chrome Plating)
Weight（kg）
1
D28-Clamping and adapter plate
600x600x25
SWK28-15001-B1
SWK28-15001-B2
SWK28-15001-B4
55.0
2
D28-Clamping and adapter plate
800x800x25
SWK28-15002-B1
SWK28-15002-B2
SWK28-15002-B4
95.0
3
D28-Clamping and adapter plate
1000x1000x25
SWK28-15003-B1
SWK28-15003-B2
SWK28-15003-B4
145.0
　
　
　
　
　
　
　
