D28-2D Steel Welding Table (B4)

  • D28-2D Steel Welding Table (B4)
  • D28-2D Steel Welding Table (B4)
  • D28-2D Steel Welding Table (B4)
Product Parameters

Description:D28-2Steel Welding Table with Plating, Standard grid  100x100mm

Material: Q355B

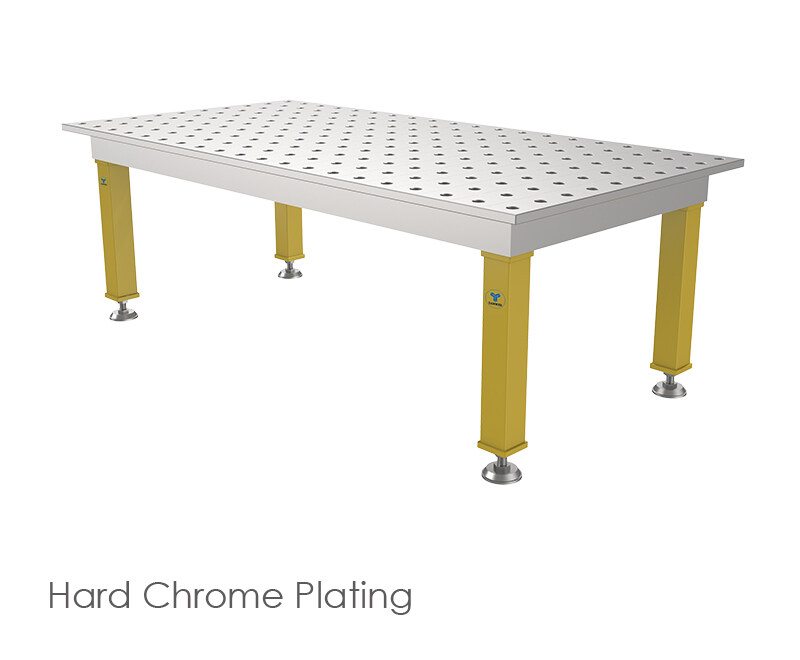

Surface: Hard  Chrome plating

• Hardness: Comprehensive Hardness: HV 280-320,Surface hardness HV> 600

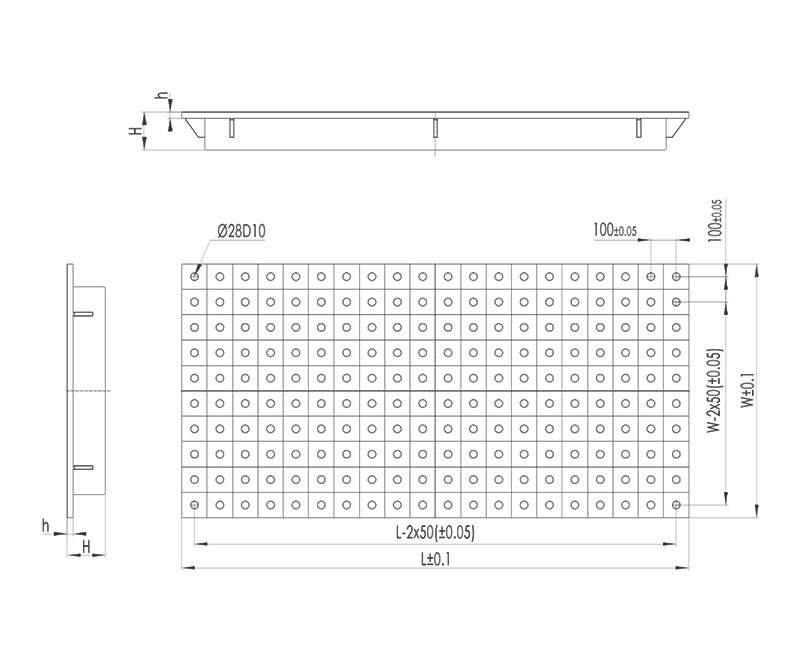

• Tolerance parameters

  □ L±0.1 x W±0.1 x H±0.1 (mm)             Hole: ∅28D10(+0.149/+0.065)        □  Flatness: 0.1mm/m2

  ∥ Parallelism:  0.1/1000 (mm)         Finished plate thickness:h=23-24.5 (mm)

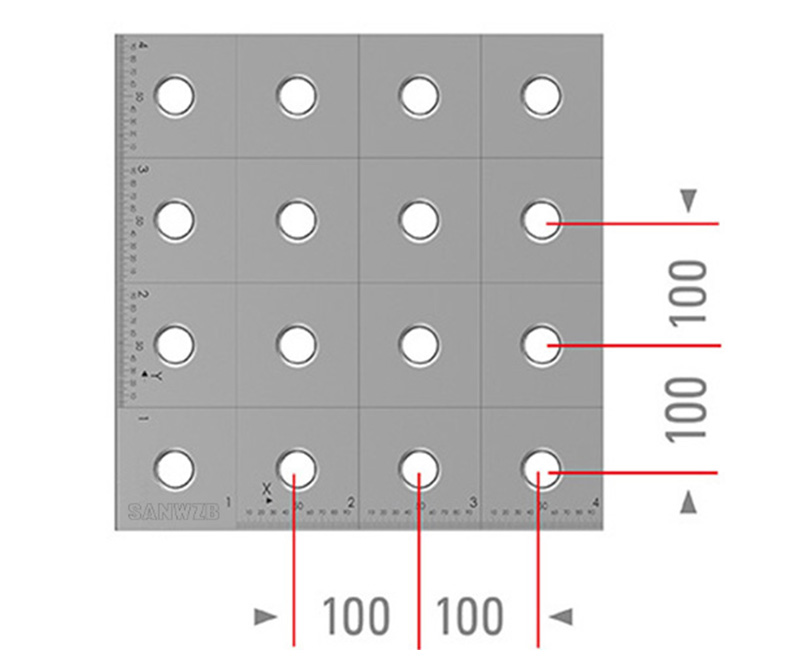

• Worktop with D28 system bores in a 100 x 100 mm grid.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

Coordinate marking of the bores in the X and Y-direction,SANWZB logo recessed in the upper surface.

The measurement unit is based on Metric system, Imperial system is available on request.


>> 3D table


> Diagonal Grid table

Painting

|

Blackening

|

Nitriding

|

Superhard Nitriding


Plating



 SUS304 table

|

Casting table

● Commonly used Specifications and Sizes:

No.

OD(LxWxH)

Order Code

Product Description

Weightkg

Leg QTY

1

1000x1000x150

SWK28-11001-B4

1000x1000x150,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

253.0

4

2

1200x1200x150

SWK28-11002-B4

1200x1200x150,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

345.0

4

3

1500x1000x150

SWK28-11003-B4

1500x1000x150,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

374.0

4

4

1500x1500x150

SWK28-11004-B4

1500x1500x150,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

552.0

4

5

2000x1000x150

SWK28-11005-B4

2000x1000x150,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

482.0

4

6

2000x1500x150

SWK28-11006-B4

2000x1500x150,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

710.0

4

7

2400x1200x150

SWK28-11007-B4

2400x1200x150,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

681.0

4

8

3000x1500x200

SWK28-11008-B4

3000x1500x200,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

1,153.0

6

9

4000x2000x200

SWK28-11009-B4

4000x2000x200,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

2,190.0

8

10

3000x2000x200

SWK28-11010-B4

3000x2000x200,D28-2D steel welding table,with Plating(Hard  Chrome),Standard Grid 100x100mm

1,628.0

6







● Choose the right support leg

Square Leg
Square Leg
Telescoping Leg
Telescoping Leg
Scissor Lift
Scissor Lift

● Universal installation and maintenance tools
