D28-2D Steel Welding Table (B3)

>D22 >D16

< >

Product Parameters

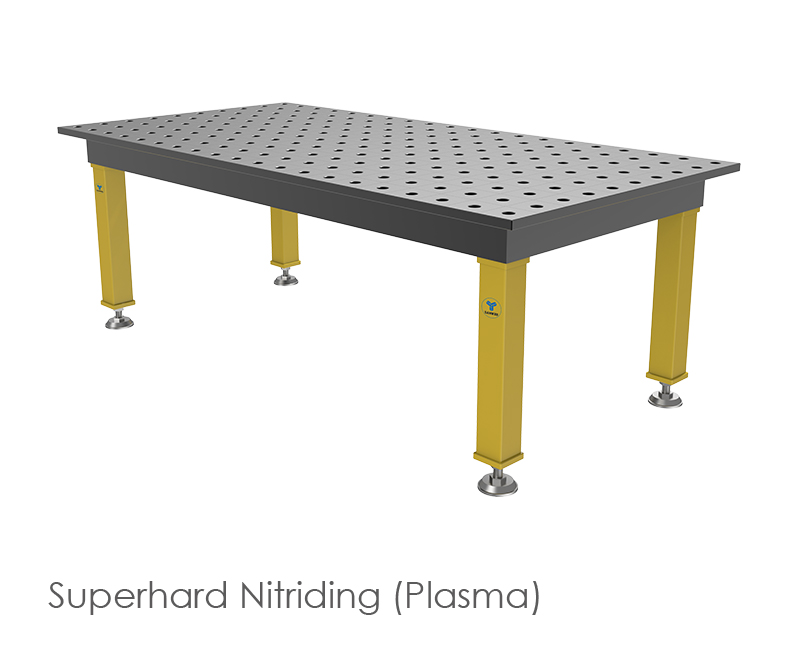

Description:D28-2D Steel Welding Table with Superhard Nitriding, Standard grid 100x100mm

• Material: Hardened tool steel

• Surface: Superhard Nitriding (Dark grey or Black)

• Hardness: The comprehensive hardness HV320-350, Metallographic hardening layer hardness ＞HV700, Nitriding depth 0.25-0.35 mm, prevent welding splashing

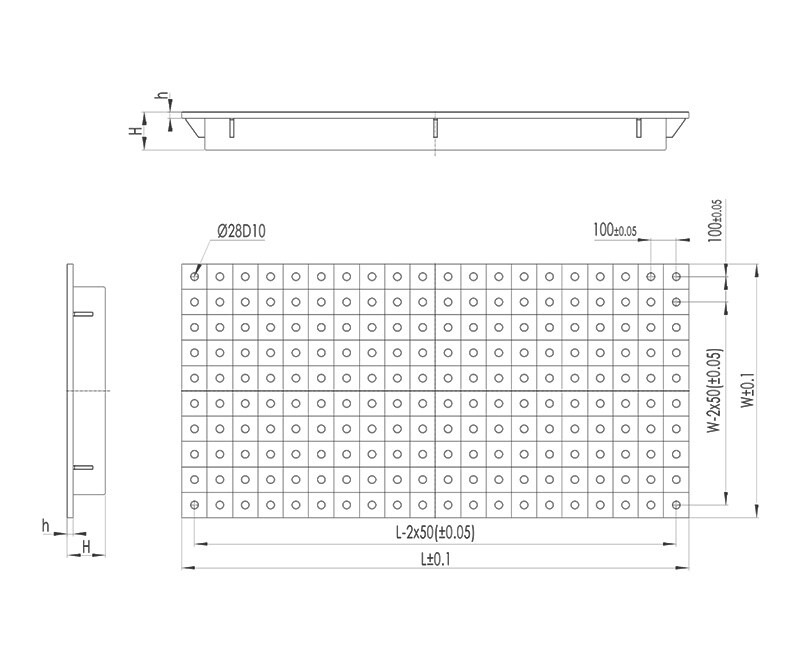

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅28D10(+0.149/+0.065) □ Flatness: 0.2mm/m²

∥ Parallelism: 0.1/1000 (mm) ≒ Finished plate thickness:h=23-24.5 (mm)

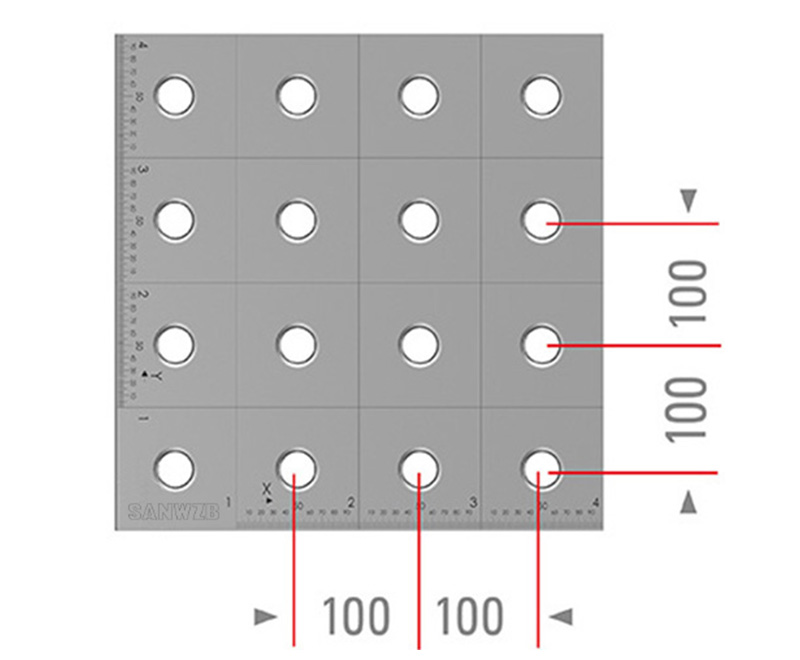

• Worktop with D28 system bores in a 100 x 100 mm grid.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

• Coordinate marking of the bores in the X and Y-direction,SANWZB logo recessed in the upper surface.

※ The measurement unit is based on Metric system, Imperial system is available on request.

＞＞ 3D Table

＞ Diagonal Grid table

|

|

Superhard Nitriding

SUS304 table

|

Casting table

● Commonly used Specifications and Sizes:

No.	OD(LxWxH)	Order Code	Product Description	Weight（kg）	Leg QTY
1	1000x1000x150	SWK28-11001-B3	1000x1000x150,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	253.0	4
2	1200x1200x150	SWK28-11002-B3	1200x1200x150,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	345.0	4
3	1500x1000x150	SWK28-11003-B3	1500x1000x150,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	374.0	4
4	1500x1500x150	SWK28-11004-B3	1500x1500x150,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	552.0	4
5	2000x1000x150	SWK28-11005-B3	2000x1000x150,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	482.0	4
6	2000x1500x150	SWK28-11006-B3	2000x1500x150,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	710.0	4
7	2400x1200x150	SWK28-11007-B3	2400x1200x150,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	681.0	4
8	3000x1500x200	SWK28-11008-B3	3000x1500x200,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	1,153.0	6
9	4000x2000x200	SWK28-11009-B3	4000x2000x200,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	2,190.0	8
10	3000x2000x200	SWK28-11010-B3	3000x2000x200,D28-2D steel welding table,with Nitriding (Hardened tool steel),Standard Grid 100x100mm	1,628.0	6
