D28-2D simple welding table(B)

>D22
  • D28-2D simple welding table(B)
  • D28-2D simple welding table(B)
  • D28-2D simple welding table(B)
Product Parameters

Description:D28-2D Simple Welding Table,Standard grid 100x100mm

Material: High carbon steel

Tolerance parameters

  □ L±0.1 x W±0.1 x H±0.1 (mm)            Hole: ∅28D10(+0.149/+0.065)          □  Flatness: 0.1mm/m2

  ∥ Parallelism:  0.1/1000 (mm)        Finished plate thickness:h=24.5-25.5 (mm)

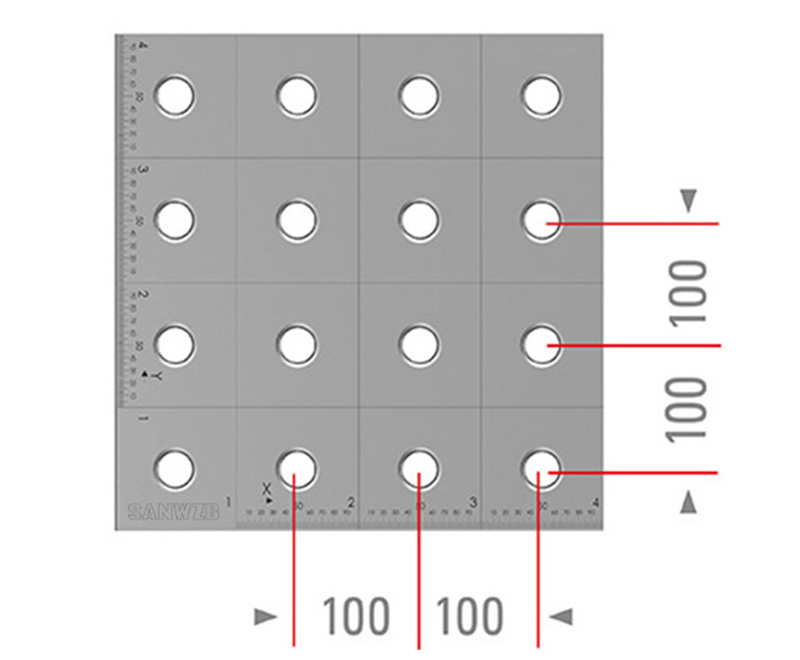

• Worktop with D28 system bores in a 100 x 100 mm grid.

• All system bores with protective countersink, perfect design and ultimate functionality.

• SANWZB logo recessed in the upper surface of the table.

Hardness

Standard: Overall Hardness HV 280-320(surface:anti-rust oil)② Blackening(Phosphating):Overall Hardness HV 280-320③ Nitriding (Plasma):The comprehensive hardness HV280-320, Metallographic hardening layer hardness >HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing④ Plating(Hard  Chrome):Comprehensive Hardness: HV 280-320,Surface hardness HV> 600

• The measurement unit is based on metric system, imperial system is available on request.

>>Standard 2D welding table


● Commonly used Specifications and Sizes:

No.

Product Description

OD(LxWxH)

Order Code(Anti-rust)

Order Code(Blackening)

Order Code(Nitriding)

Weightkg

Leg QTY

1

D28-2D simple welding table

1000x600x25

SWK28-13001-B0

SWK28-13001-B1

SWK28-13001-B2

110.0

4

2

D28-2D simple welding table

1000x800x25

SWK28-13002-B0

SWK28-13002-B1

SWK28-13002-B2

147.0

4

3

D28-2D simple welding table

1000x1000x25

SWK28-13003-B0

SWK28-13003-B1

SWK28-13003-B2

184.0

4

4

D28-2D simple welding table

1200x800x25

SWK28-13004-B0

SWK28-13004-B1

SWK28-13004-B2

176.0

4

5

D28-2D simple welding table

1200x1000x25

SWK28-13005-B0

SWK28-13005-B1

SWK28-13005-B2

220.0

4

6

D28-2D simple welding table

1200x1200x25

SWK28-13006-B0

SWK28-13006-B1

SWK28-13006-B2

265.0

4

7

D28-2D simple welding table

1500x800x25

SWK28-13007-B0

SWK28-13007-B1

SWK28-13007-B2

220.0

4

8

D28-2D simple welding table

1500x1000x25

SWK28-13008-B0

SWK28-13008-B1

SWK28-13008-B2

276.0

4

9

D28-2D simple welding table

1500x1500x25

SWK28-13009-B0

SWK28-13009-B1

SWK28-13009-B2

414.0

4

10

D28-2D simple welding table

2000x1000x25

SWK28-13010-B0

SWK28-13010-B1

SWK28-13010-B2

368.0

5

11

D28-2D simple welding table

2400x1200x25

SWK28-13011-B0

SWK28-13011-B1

SWK28-13011-B2

530.0

6

● Choose the right support leg

Round Leg
Round Leg

● Universal installation and maintenance tools
