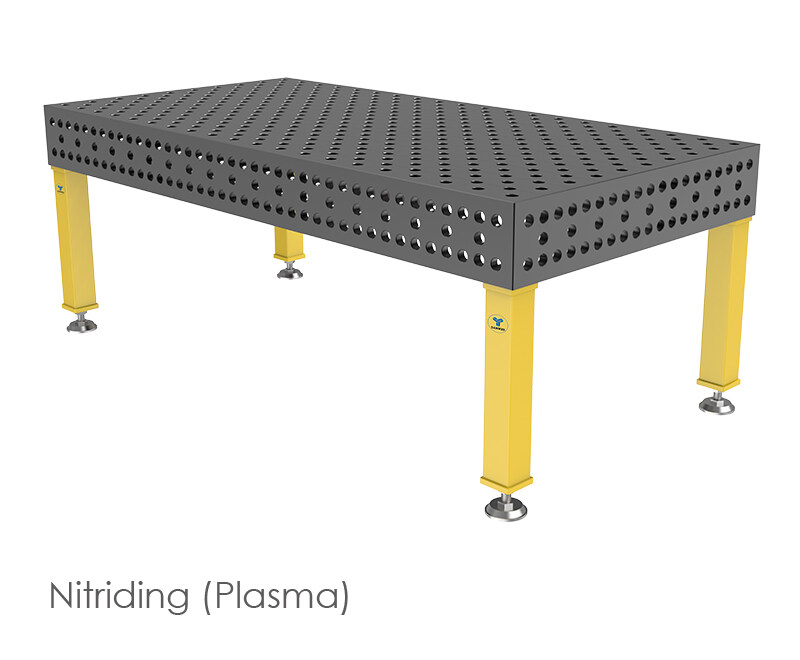

Description:D28-3D Steel Welding Table with Nitriding, Diagonal grid 100x100mm
• Material: Q355B • Surface: Nitriding (Dark grey or Black)
• Hardness: The comprehensive hardness HV280-320, Metallographic hardening layer hardness >HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing.

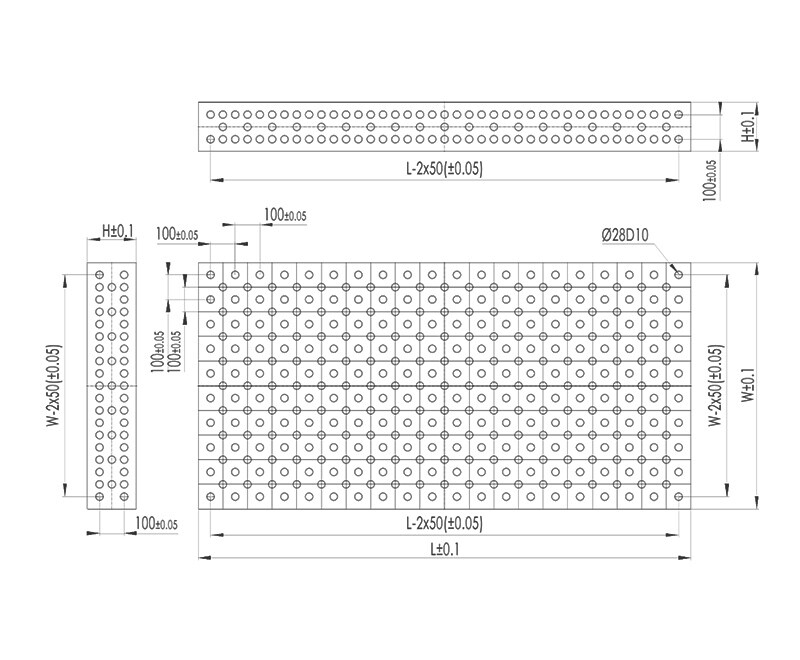

• Tolerance parameters
•
• All
system bores with protective countersink, perfect design and ultimate
functionality.
• Improved
table reinforcement through additional cross-ribs.

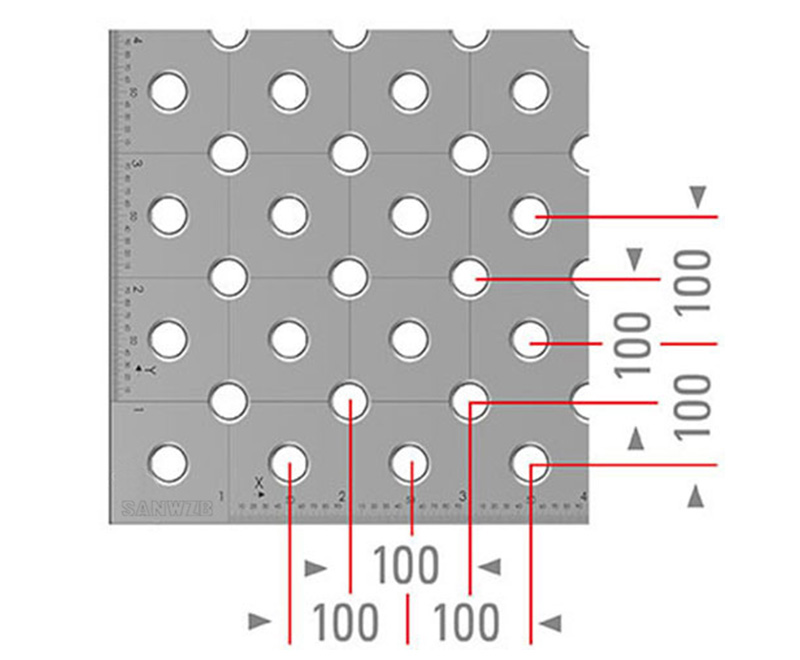

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.
※ The measurement unit is based on Metric system, Imperial system is available on request.
| | Nitriding | | | | SUS304 table | | | Casting table |
No. | OD(LxWxH) | Order Code | Product Description | Weight(kg) | Leg QTY |
1 | 1000x1000x200 | SWK28-10001-X2 | 1000x1000x200,D28-3D steel welding table,with | 342.0 | 4 |
2 | 1200x1200x200 | SWK28-10002-X2 | 1200x1200x200,D28-3D steel welding table,with | 434.0 | 4 |
3 | 1500x1000x200 | SWK28-10003-X2 | 1500x1000x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 475.0 | 4 |
4 | 1500x1500x200 | SWK28-10004-X2 | 1500x1500x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 680.0 | 4 |
5 | 2000x1000x200 | SWK28-10005-X2 | 2000x1000x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 625.0 | 4 |
6 | 2000x1500x200 | SWK28-10006-X2 | 2000x1500x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 860.0 | 4 |
7 | 2400x1200x200 | SWK28-10007-X2 | 2400x1200x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 880.0 | 6 |
8 | 3000x1500x200 | SWK28-10008-X2 | 3000x1500x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 1,380.0 | 6 |
9 | 4000x2000x200 | SWK28-10009-X2 | 4000x2000x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 2,310.0 | 11 |
10 | 3000x2000x200 | SWK28-10010-X2 | 3000x2000x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 1,780.0 | 8 |
11 | 2000x2000x200 | SWK28-10011-X2 | 2000x2000x200,D28-3D steel welding table,with Nitriding (Plasma),Diagonal grid 100x100mm | 1,176.0 | 5 |
