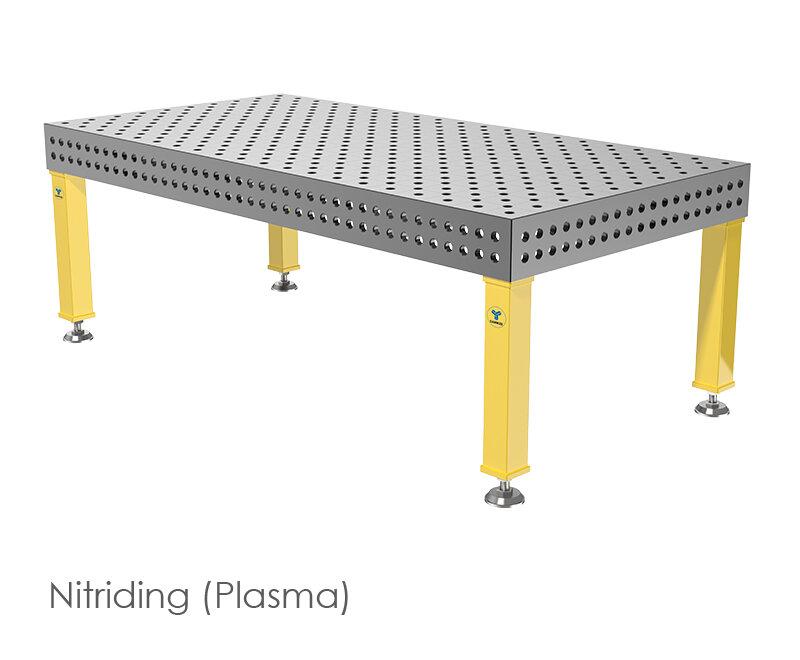

D22-3D Steel Welding Table (X2)

>D28 >D16

< >

Product Parameters

Description:D22-3D Steel Welding Table with Nitriding, Diagonal grid 100x100mm

• Material: Q355B • Surface: Nitriding (Dark grey or Black)

• Hardness: The comprehensive hardness HV280-320, Metallographic hardening layer hardness ＞HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing.

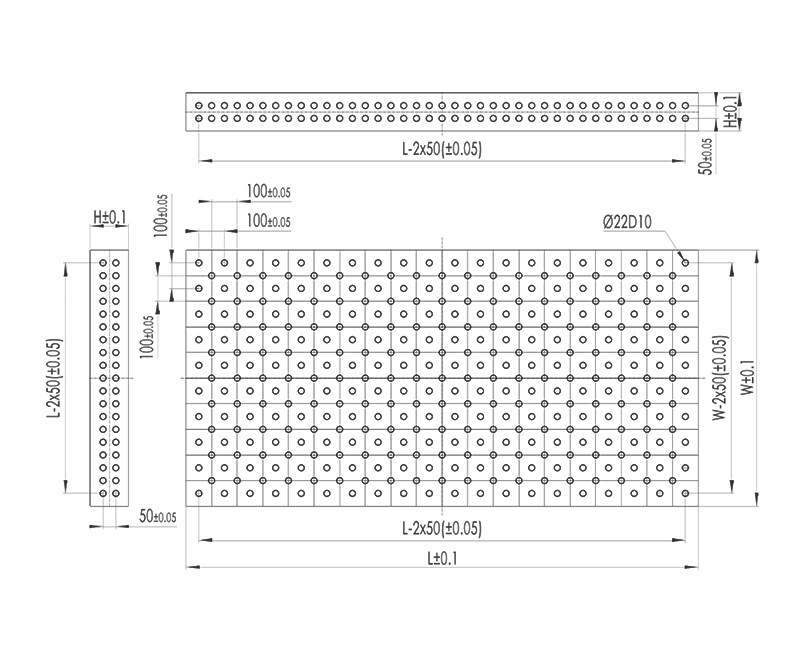

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅22D10(+0.149/+0.065) □ Flatness: 0.2mm/m²

∥ Parallelism: 0.1/1000 (mm) ⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:h=18-18.5 (mm)

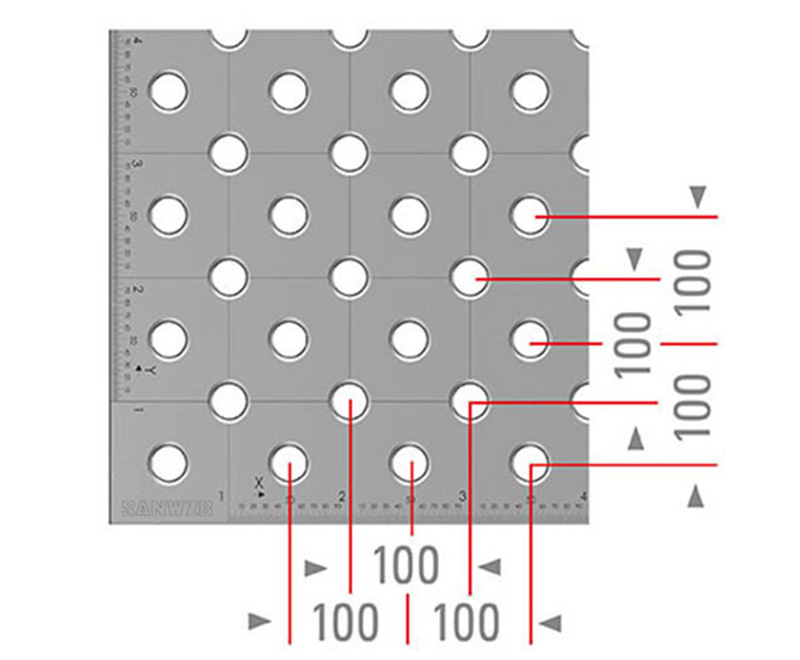

• Worktop with D22 system bores in a double 100 x 100 mm grid(Diagonal grid 100x100mm), resulting in approx. 80 % more clamping options than Standard and conventional worktables.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.

※ The measurement unit is based on Metric system, Imperial system is available on request.

＞＞ 2D Table

＞ Standard Grid table

Painting

|

Blackening

Nitriding

Superhard Nitriding

|

Plating

SUS304 table

|

Casting table

● Commonly used Specifications and Sizes:

No.	OD(LxWxH)	Order Code	Product Description	Weight（kg）	Leg QTY
1	1000x1000x150	SWK22-10001-X2	1000x1000x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	258.0	4
2	1200x1200x150	SWK22-10002-X2	1200x1200x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	341.0	4
3	1500x1000x150	SWK22-10003-X2	1500x1000x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	369.0	4
4	1500x1500x150	SWK22-10004-X2	1500x1500x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	529.0	4
5	2000x1000x150	SWK22-10005-X2	2000x1000x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	481.0	4
6	2000x1500x150	SWK22-10006-X2	2000x1500x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	690.0	4
7	2400x1200x150	SWK22-10007-X2	2400x1200x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	646.0	6
8	3000x1500x150	SWK22-10008-X2	3000x1500x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	1,084.0	6
9	2000x2000x150	SWK22-10011-X2	2000x2000x200,D22-3D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	903.0	5
