D22-3D Steel Welding Table (B3)

>D28>D16

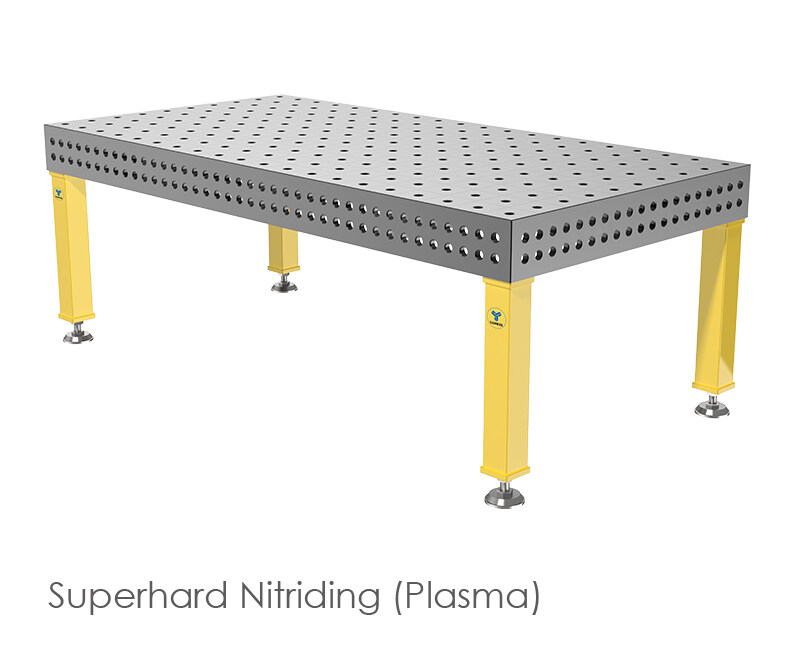

  • D22-3D Steel Welding Table (B3)
  • D22-3D Steel Welding Table (B3)
  • D22-3D Steel Welding Table (B3)
Product Parameters

Description:D22-3Steel Welding Table with Superhard Nitriding, Standard grid  100x100mm

Material: Hardened tool steel

Surface: Superhard Nitriding  (Dark grey or Black)

• Hardness: The comprehensive hardness HV320-350, Metallographic hardening layer hardness >HV700, Nitriding depth 0.25-0.35 mm, prevent welding splashing.

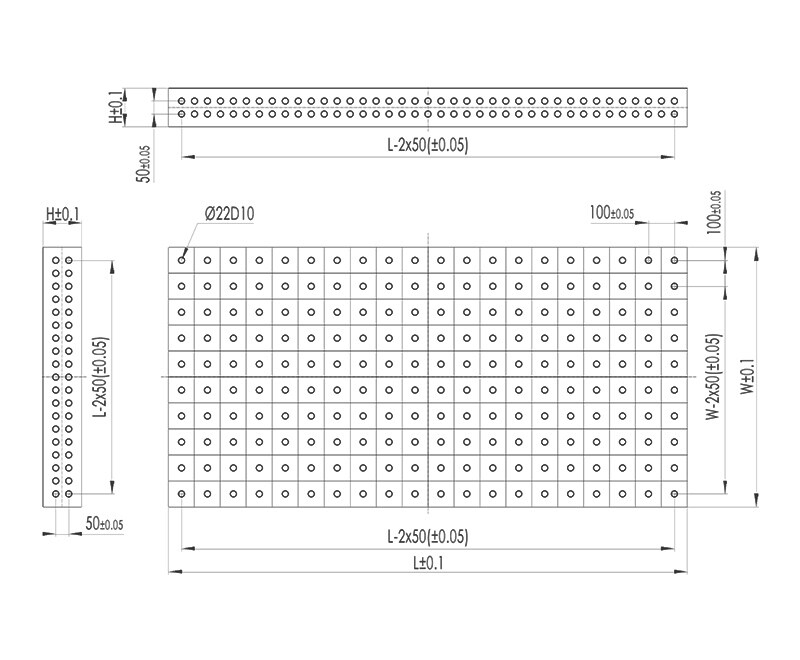

• Tolerance parameters

  □ L±0.1 x W±0.1 x H±0.1 (mm)            Hole: ∅22D10(+0.149/+0.065)         Flatness: 0.1mm/m2

  ∥ Parallelism:  0.1/1000 (mm)      ⊥ Verticality: 0.1/200 (mm)              Finished plate thickness:h=18-18.5 (mm)

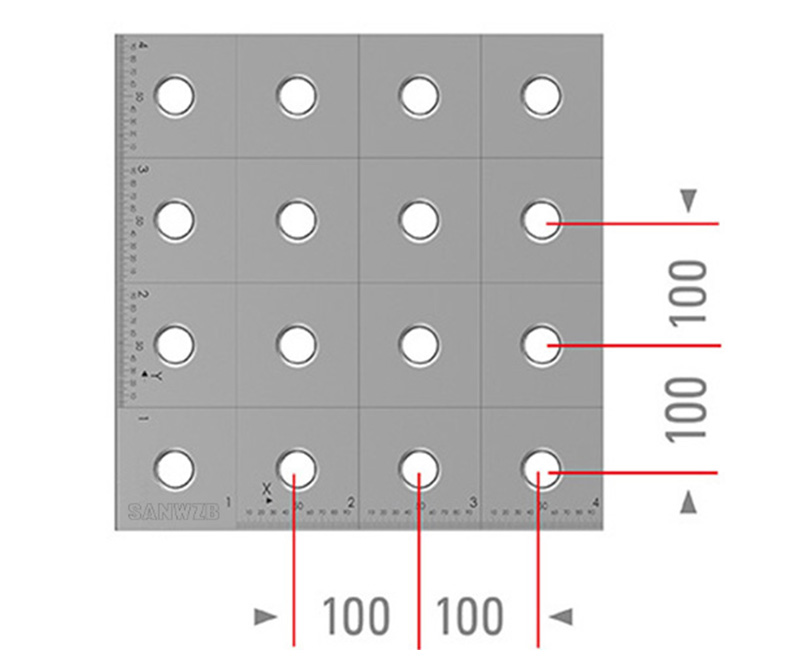

• Worktop with D22 system bores in a 100 x 100 mm grid, The 4 sides of the table adopt a 2-row hole layout.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.

The measurement unit is based on Metric system, Imperial system is available on request.
