D22-2D Steel Welding Table (B2)

>D28 >D16

< >

Product Parameters

Description:D22-2D Steel Welding Table with Nitriding, Standard grid 100x100mm

• Material: Q355B

• Surface: Nitriding (Dark grey or Black)

• Hardness: The comprehensive hardness HV280-320, Metallographic hardening layer hardness ＞HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing

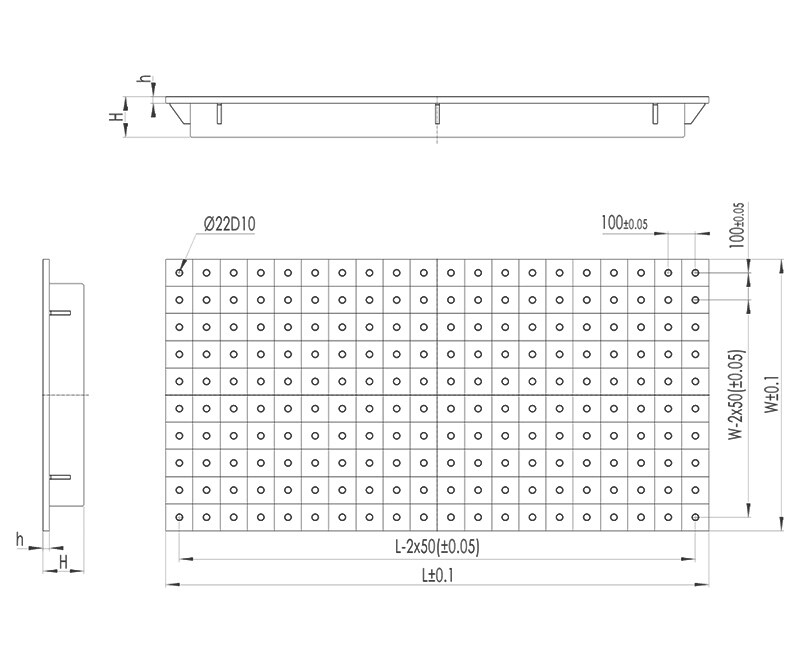

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅22D10(+0.149/+0.065) □ Flatness: 0.2mm/m²

∥ Parallelism: 0.1/1000 (mm) ≒ Finished plate thickness:h=18-18.5 (mm)

• Worktop with D22 system bores in a 100 x 100 mm grid.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

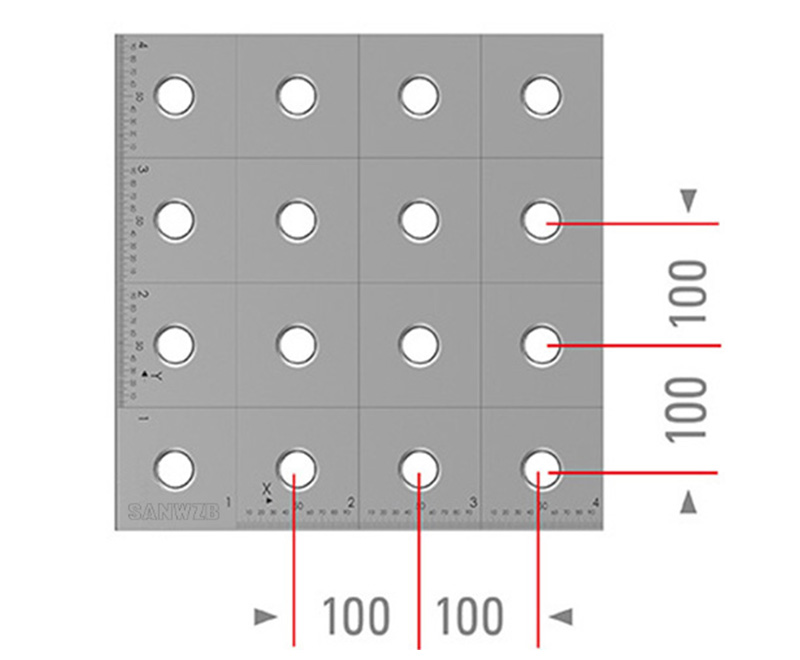

• Coordinate marking of the bores in the X and Y-direction,SANWZB logo recessed in the upper surface.

※ The measurement unit is based on Metric system, Imperial system is available on request.

＞＞ 3D Table

＞ Diagonal Grid table

Painting

|

Blackening

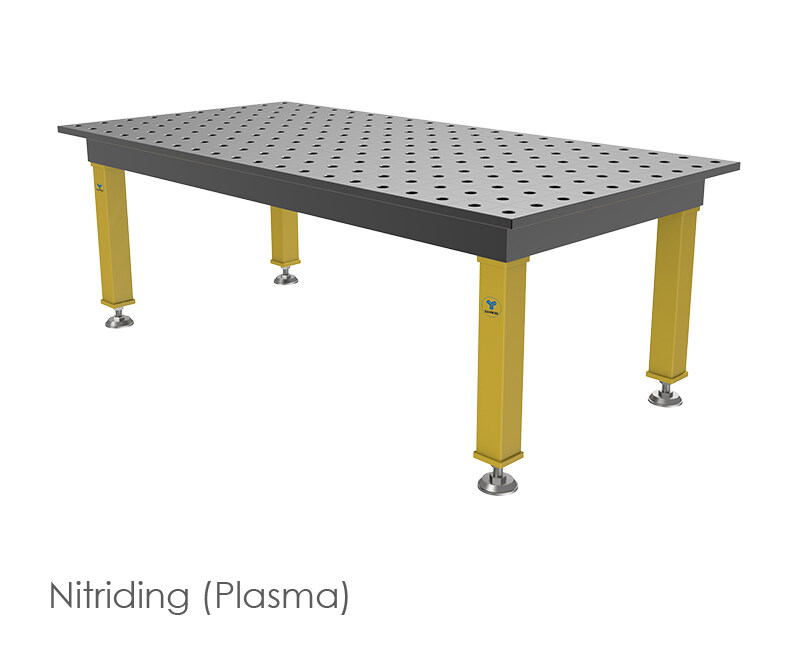

Nitriding

Superhard Nitriding

|

Plating

SUS304 table

|

Casting table

● Commonly used Specifications and Sizes:

No.	OD(LxWxH)	Order Code	Product Description	Weight（kg）	Leg QTY
1	1000x1000x150	SWK22-11001-B2	1000x1000x150,D22-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	217.0	4
2	1200x1200x150	SWK22-11002-B2	1200x1200x150,D22-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	296.0	4
3	1500x1000x150	SWK22-11003-B2	1500x1000x150,D22-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	320.0	4
4	1500x1500x150	SWK22-11004-B2	1500x1500x150,D22-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	473.0	4
5	2000x1000x150	SWK22-11005-B2	2000x1000x150,D22-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	424.0	4
6	2000x1500x150	SWK22-11006-B2	2000x1500x150,D22-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	626.0	4
7	2400x1200x150	SWK22-11007-B2	2400x1200x150,D22-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	580.0	4
8	3000x1500x200	SWK28-11008-B2	3000x1500x150,D28-2D steel welding table,with Nitriding (Plasma),Standard Grid 100x100mm	1,015.0	6
