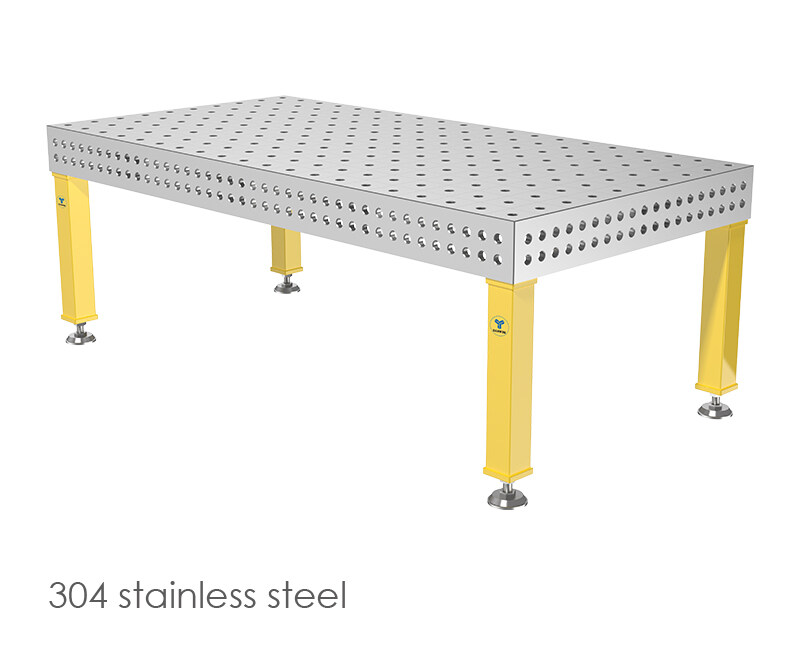

Description:D22-3D SUS304 Steel Welding Table , Standard grid 100x100mm
• Material: 304 stainless steel
• Surface: Passivated
• Hardness: Steel material hardness
• Tolerance parameters
•
• All
system bores with protective countersink, perfect design and ultimate
functionality.
• Improved
table reinforcement through additional cross-ribs.

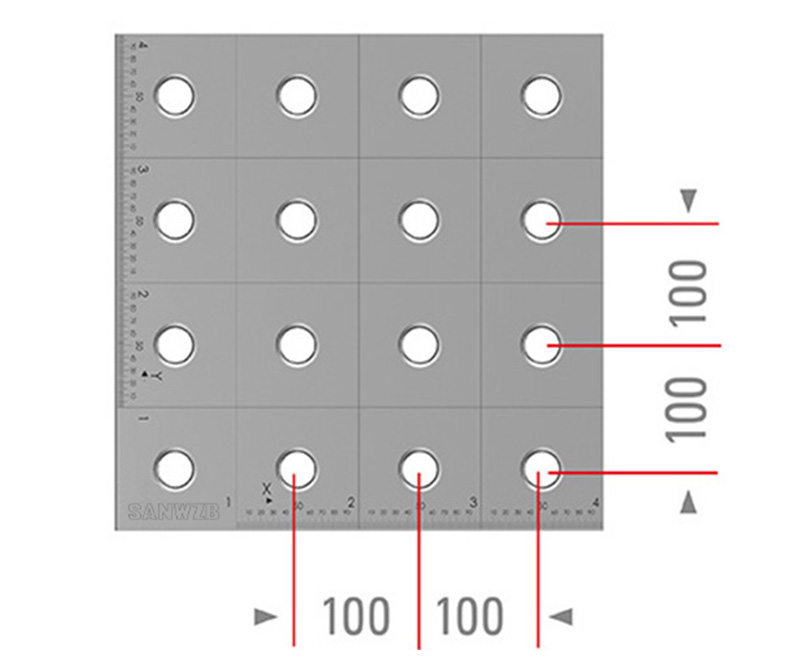

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.
※ The measurement unit is based on Metric system, Imperial system is available on request.

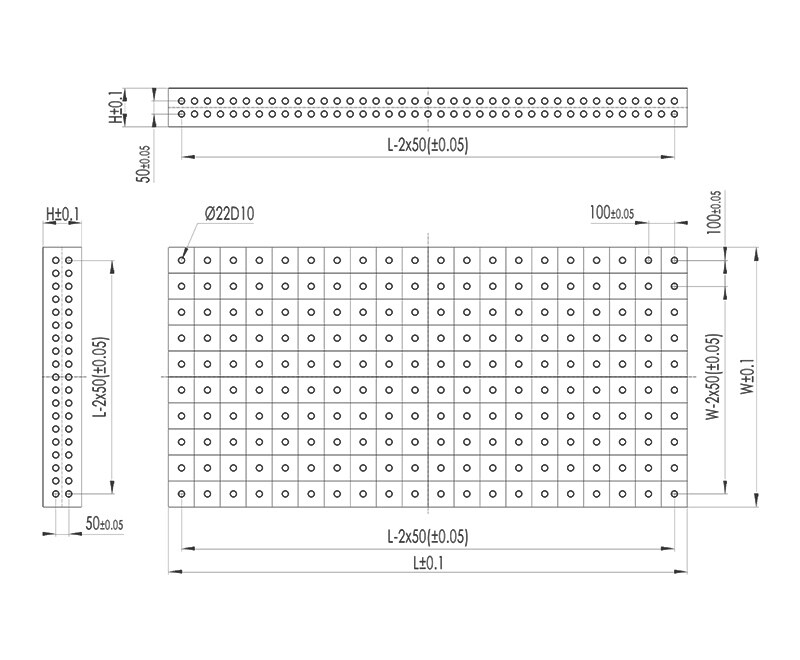

>> 2D Table
> Diagonal Grid table | | | | | | | | | Plating | | SUS304 table | Casting table |
No. | OD(LxWxH) | Order Code | Product Description | Weight(kg) | Leg QTY |
1 | 1000x1000x150 | SWK22-10201-B0 | 1000x1000x200,D22-3D | 258.0 | 4 |
2 | 1200x1200x | SWK22-10202-B0 | 1200x1200x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 341.0 | 4 |
3 | 1500x1000x | SWK22-10203-B0 | 1500x1000x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 369.0 | 4 |
4 | 1500x1500x | SWK22-10204-B0 | 1500x1500x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 529.0 | 4 |
5 | 2000x1000x | SWK22-10205-B0 | 2000x1000x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 481.0 | 4 |
6 | 2000x1500x | SWK22-10206-B0 | 2000x1500x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 690.0 | 4 |
7 | 2400x1200x | SWK22-10207-B0 | 2400x1200x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 646.0 | 6 |
8 | 3000x1500x | SWK22-10208-B0 | 3000x1500x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 1,084.0 | 6 |
9 | 2000x2000x | SWK22-10211-B0 | 2000x2000x200,D22-3D SUS304 welding table,with Passivated,Standard Grid 100x100mm | 903.0 | 5 |
