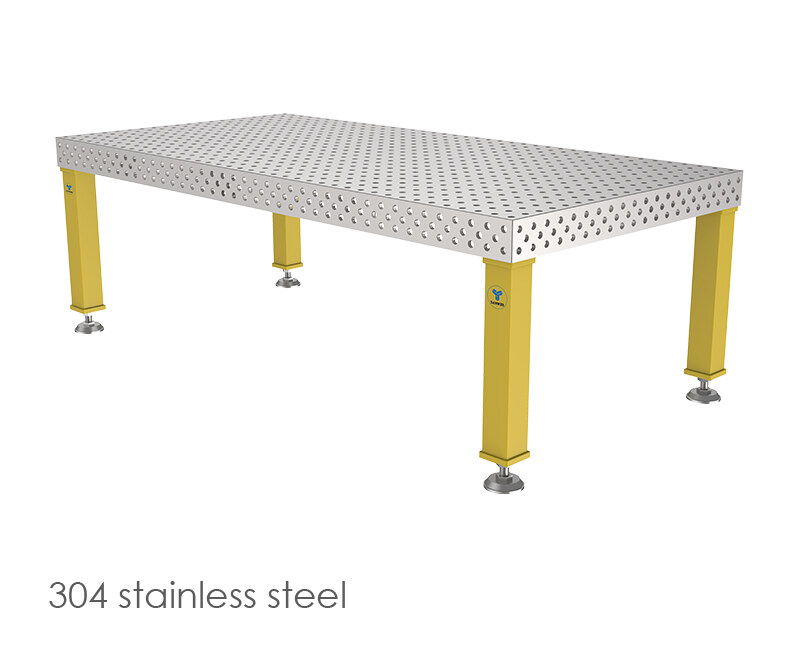

D16-3D SUS304 Welding Table (B0)

< >

Product Parameters

Description:D16-3D Welding Table with SUS304,Standard grid 50x50mm

• Material: 304 Stainless Steel

• Surface: Painting (non-working surface)

• Hardness: Steel material hardness

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅16D10(+0.120/+0.050) □ Flatness: 0.1mm/m²

∥ Parallelism: 0.1/1000 (mm) ⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:h=12-12.5 (mm)

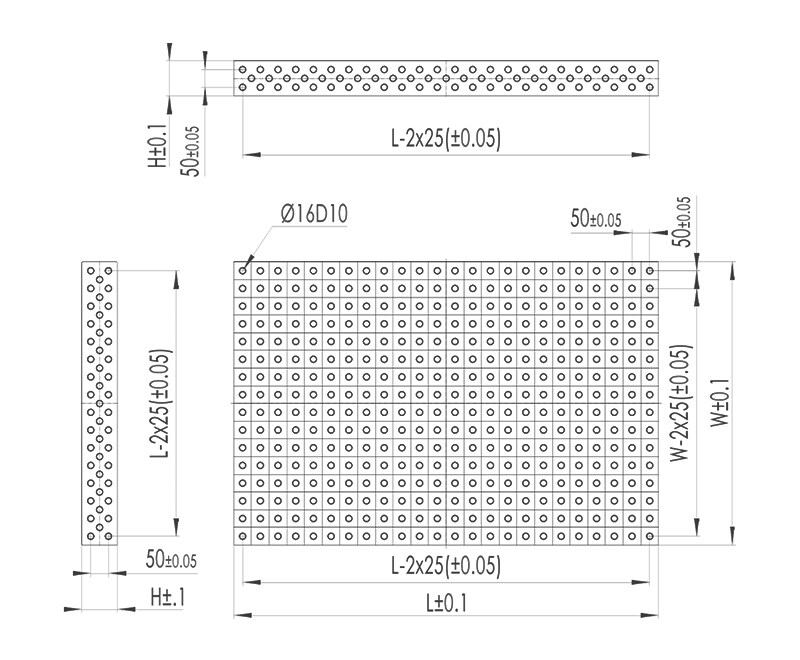

• Worktop with D16 system bores in a 50 x 50 mm grid, The 4 sides of the table adopt a 3-row hole layout.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

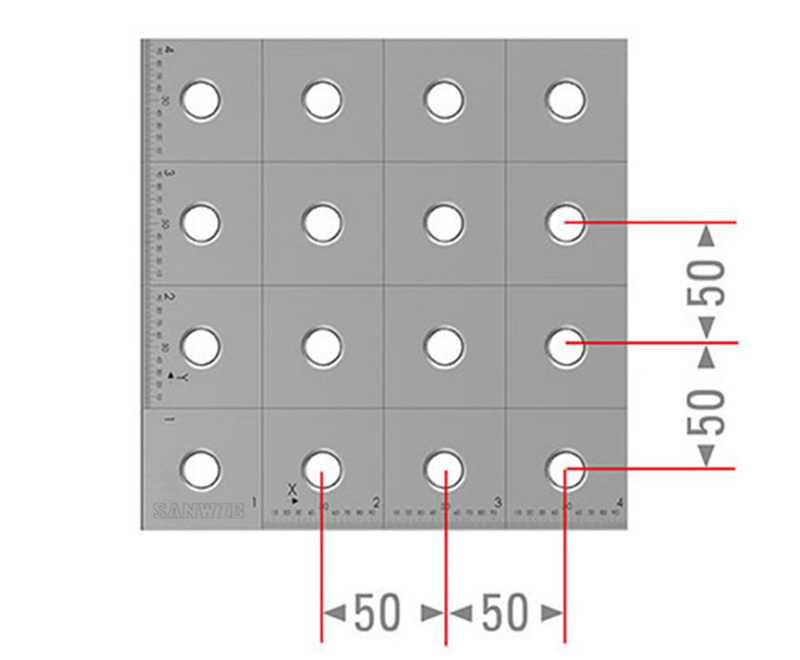

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.

※ The measurement unit is based on Metric system, Imperial system is available on request.

＞＞ 2D Table

＞ Diagonal Grid table

|

|

|

|

Plating

SUS304 table

Casting table

● Commonly used Specifications and Sizes:

No.	OD(LxWxH)	Order Code	Product Description	Weight（kg）	Leg QTY
1	1000x500x100	SWK16-10201-B0	1000x500x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	78.0	4
2	1000x1000x100	SWK16-10202-B0	1000x1000x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	145.0	4
3	1200x800x100	SWK16-10203-B0	1200x800x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	160.0	4
4	1200x1200x100	SWK16-10204-B0	1200x1200x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	230.0	4
5	1500x1500x100	SWK16-10205-B0	1500x1500x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	238.0	4
6	1500x1500x100	SWK16-10206-B0	1500x1500x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	334.0	4
7	2000x1000x100	SWK16-10207-B0	2000x1000x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	275.0	4
8	2400x1200x100	SWK16-10208-B0	2400x1200x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	471.0	6
9	3000x1500x100	SWK16-10209-B0	3000x1500x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	817.0	6
10	1500x800x100	SWK16-10210-B0	1500x800x100,D16-3D SUS304 welding table,with Passivated,Standard Grid 50x50mm	199.0	4
