D16-2D Steel Welding Table (B1)

< >

Product Parameters

Description:D16-2D Steel Welding Table with Blackening, Standard grid 50x50mm

• Material: Q355B

• Surface: Blackening(Phosphating)

• Hardness: Overall Hardness HV 280-320

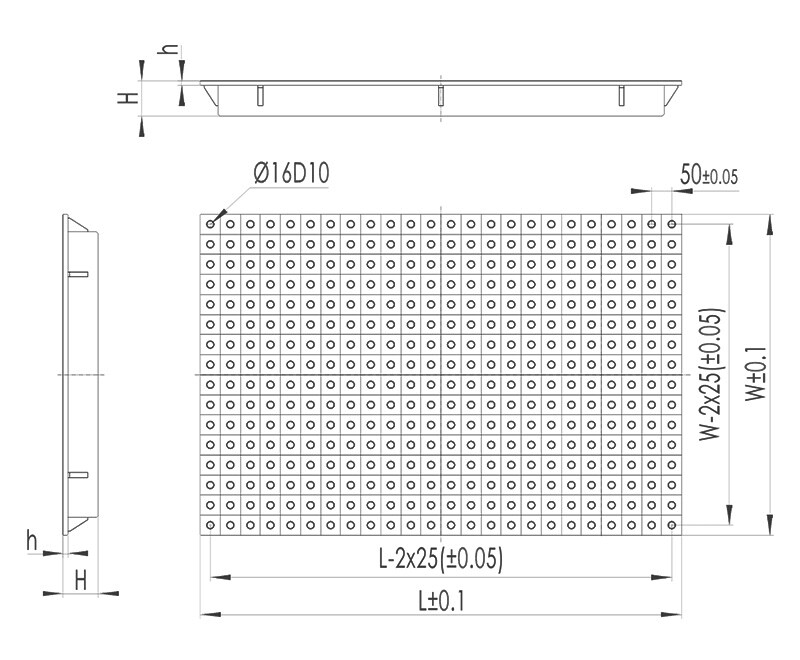

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅16D10(+0.120/+0.050) □ Flatness: 0.1mm/m²

∥ Parallelism: 0.1/1000 (mm) ≒ Finished plate thickness:h=12-12.5 (mm)

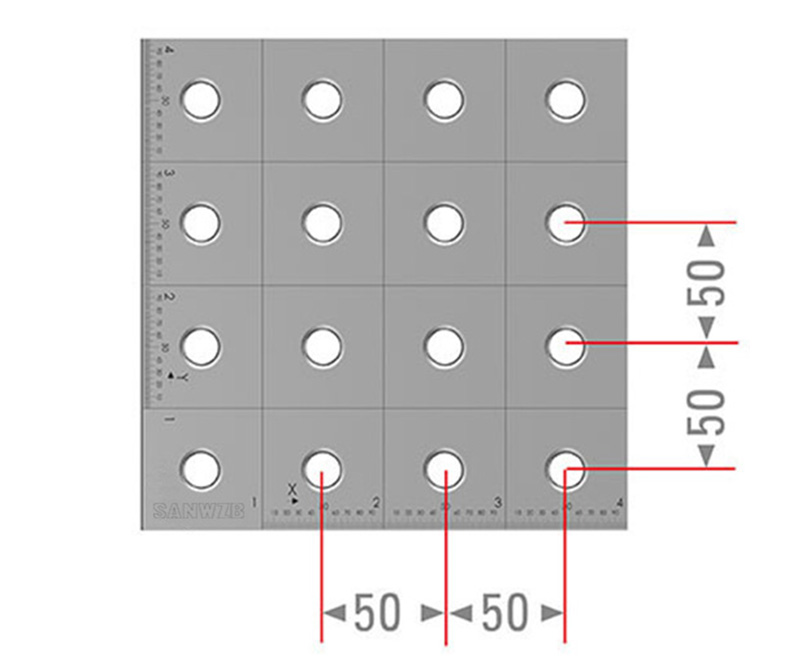

• Worktop with D16 system bores in a 50 x 50 mm grid.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

• Coordinate marking of the bores in the X and Y-direction,SANWZB logo recessed in the upper surface.

※ The measurement unit is based on Metric system, Imperial system is available on request.

＞ Diagonal Grid table

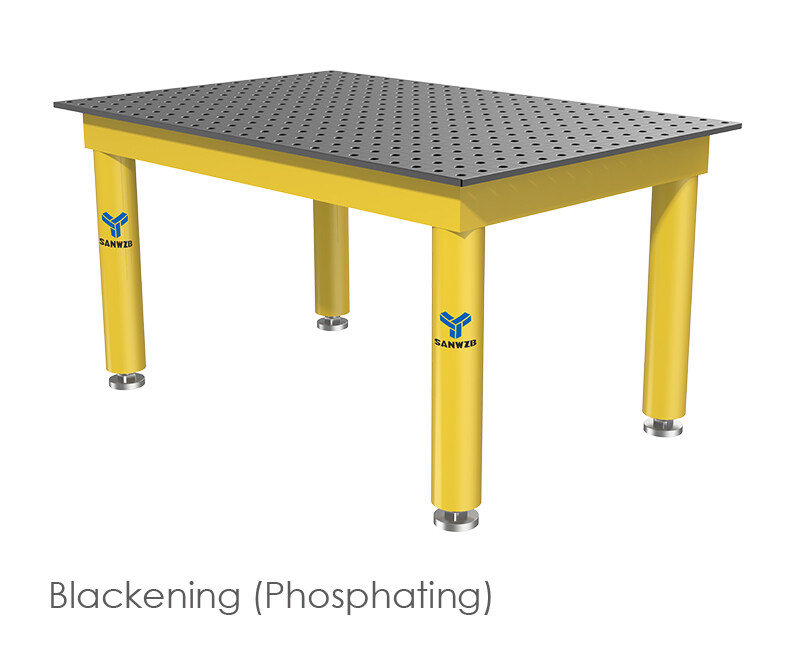

Blackening

|

|

SUS304 table

|

Casting table

● Commonly used Specifications and Sizes:

No.	OD(LxWxH)	Order Code	Product Description	Weight（kg）	Leg QTY
1	1000x500x100	SWK16-11001-B0	1000x500x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	77.0	4
2	1000x1000x100	SWK16-11002-B0	1000x1000x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	145.0	4
3	1200x800x100	SWK16-11003-B0	1200x800x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	133.0	4
4	1200x1200x100	SWK16-11004-B0	1200x1200x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	197.0	4
5	1500x1000x100	SWK16-11005-B0	1500x1000x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	212.0	4
6	1500x1500x100	SWK16-11006-B0	1500x1500x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	312.0	4
7	2000x1000x100	SWK16-11007-B0	2000x1000x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	279.0	4
8	2400x1200x100	SWK16-11008-B0	2400x1200x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	386.0	6
9	1500x800x100	SWK16-11009-B0	1500x800x100,D16-2D steel welding table,with Blackening(Phosphating),Standard Grid 50x50mm	166.0	6

● Choose the right support leg
