D16-2D Octagonal Table(B)

>D28>D22
  • D16-2D Octagonal Table(B)
  • D16-2D Octagonal Table(B)
  • D16-2D Octagonal Table(B)
Product Parameters

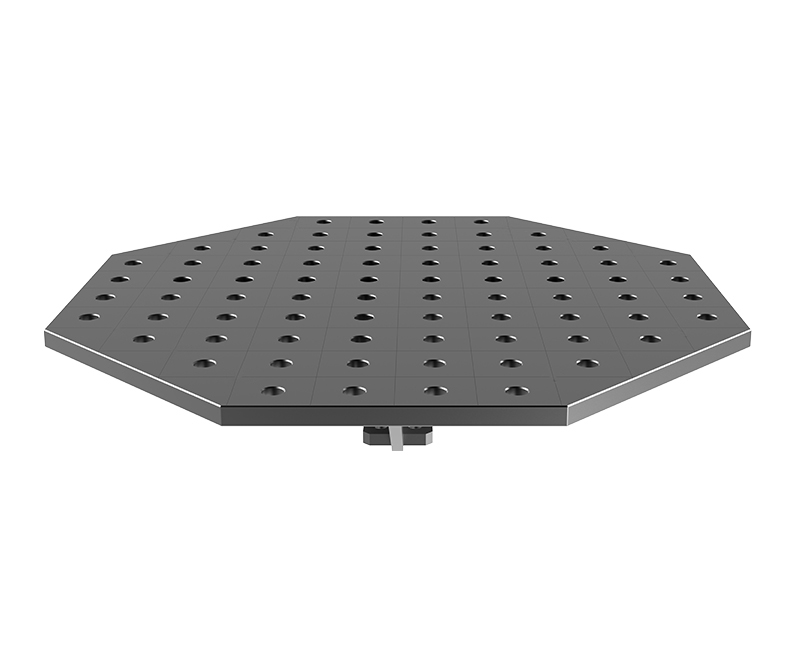

Description:D16-2Octagonal Welding Table,Standard grid 50x50mm

Material:Q355B

• Surface and Hardness:

① Painting(Non-working surface)  ② Blackening(Phosphating)  Overall Hardness HV 280-320③ Nitriding(Plasma):The comprehensive hardness HV280-320, Metallographic hardening layer hardness >HV450.Nitriding depth 0.25-0.35 mm,prevent welding splashing.

• Tolerance parameters

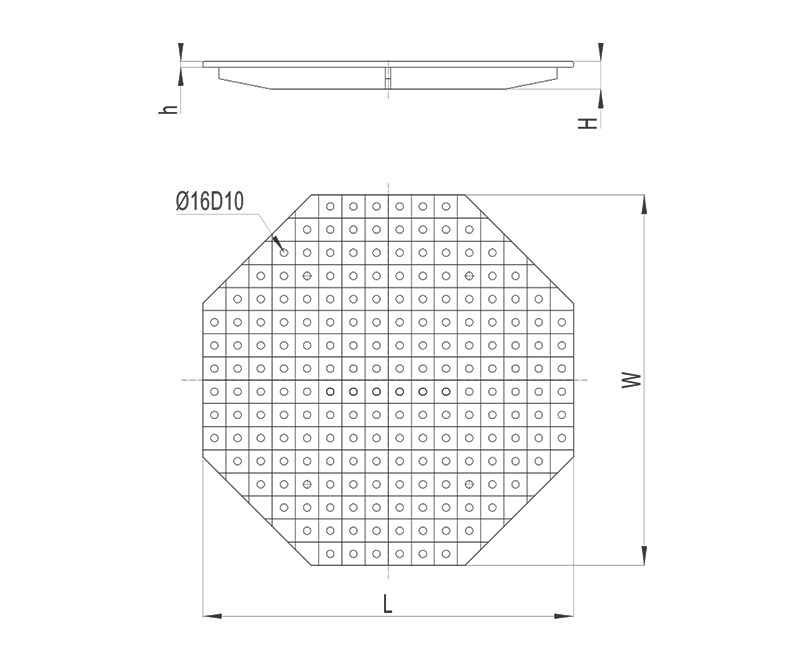

  □ L±0.1 x W±0.1 x H±0.1 (mm)               Hole: ∅16D10(+0.120/+0.050)        Flatness: 0.1mm/m2

  ∥ Parallelism:  0.1/1000 (mm)           Finished plate thickness:h=11.5-12.5 (mm)

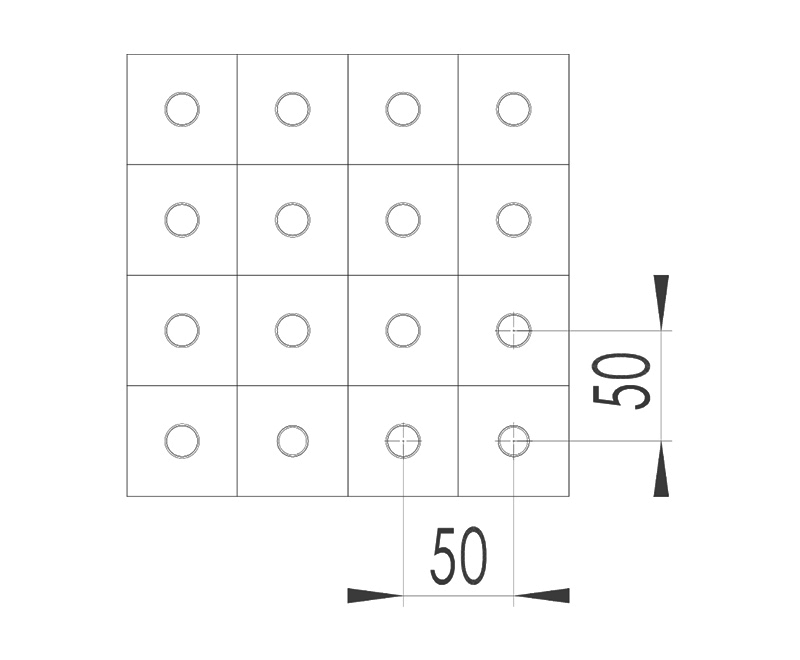

• Worktop with D16 system bores in a 50 x 50 mm grid.

There are universal mounting holes on the back of the table,Through the conversion of the flange plate, you can adapt to the different installation mechanism.

SANWZB logo recessed in the upper surface of the table.

※ The measurement unit is based on metric system, imperial system is available on request.
