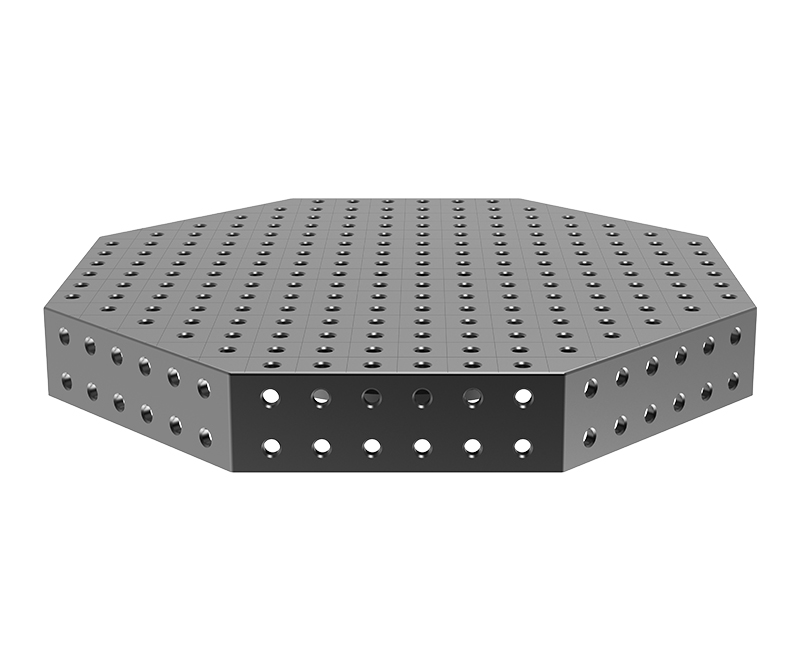

D16-3D Octagonal Table(B)

>D28>D22
  • D16-3D Octagonal Table(B)
  • D16-3D Octagonal Table(B)
  • D16-3D Octagonal Table(B)
Product Parameters

Description:D16-3Octagonal Welding Table,Standard grid 50x50mm

Material:Q355B

• Surface and Hardness:

① Painting(Non-working surface)  ② Blackening(Phosphating)  Overall Hardness HV 280-320③ Nitriding(Plasma):The comprehensive hardness HV280-320, Metallographic hardening layer hardness >HV450.Nitriding depth 0.25-0.35 mm,prevent welding splashing.

• Tolerance parameters

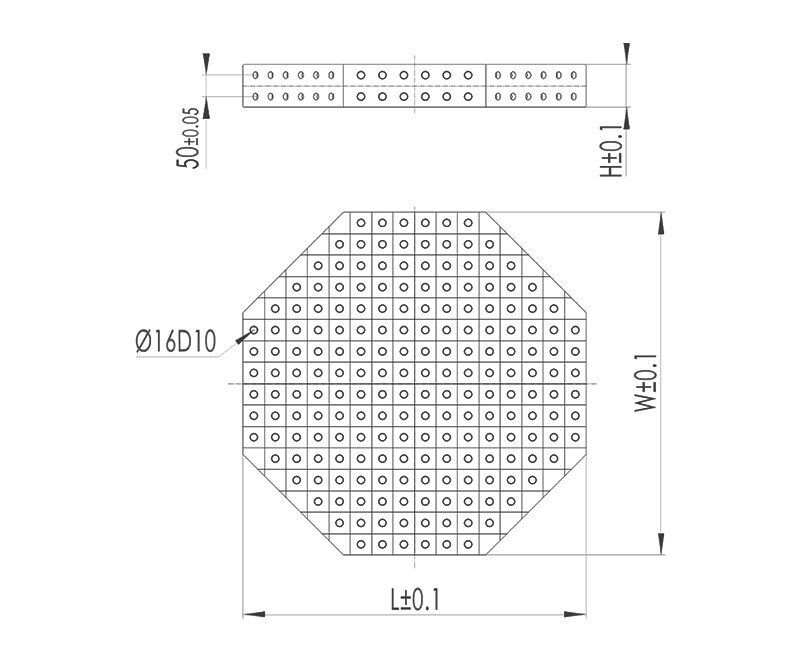

  □ L±0.1 x W±0.1 x 100±0.1 (mm)            Hole: ∅16D10(+0.120/+0.050)        Flatness: 0.1mm/m2

  ∥ Parallelism:  0.1/1000 (mm)          ⊥ Verticality: 0.1/200 (mm)            Finished plate thickness:11.5-12.5 (mm)

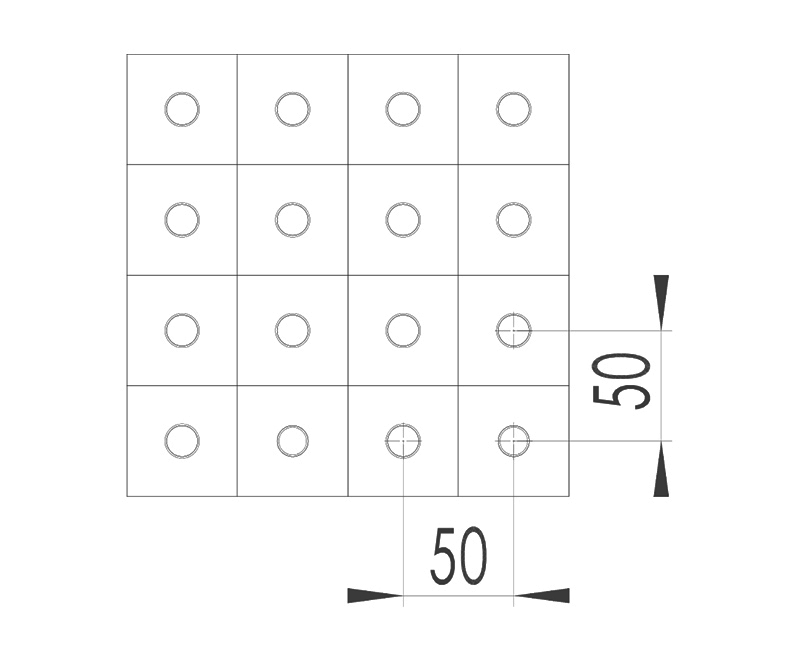

• Worktop with D16 system bores in a 50 x 50 mm grid.

There are universal mounting holes on the back of the table,Through the conversion of the flange plate, you can adapt to the different installation mechanism.

SANWZB logo recessed in the upper surface of the table.

※ The measurement unit is based on metric system, imperial system is available on request.

>> 2D Table


● Commonly used Specifications and Sizes:

No.

Product Description

OD(LxWxH) mm

Order Code (Anti-rust)

Order Code (Blackening)

Order Code (Nitriding)

Weightkg

1

D16-3D Octagonal Welding Table

600x600x100

SWK16-12001-B0

SWK16-12001-B1

SWK16-12001-B2

89.0

2

D16-3D Octagonal Welding Table

800x800x100

SWK16-12002-B0

SWK16-12002-B1

SWK16-12002-B2

137.0

3

D16-3D Octagonal Welding Table

1000x1000x100

SWK16-12003-B0

SWK16-12003-B1

SWK16-12003-B2

213.0

4

D16-3D Octagonal Welding Table

1200x1200x100

SWK16-12004-B0

SWK16-12004-B1

SWK16-12004-B2

316.0

● The same type of products

D28-3D Octagonal Table (B)
D28-3D Octagonal Table (B)
D22-3D Octagonal Table(X)
D22-3D Octagonal Table(X)
D16-2D Octagonal Table(B)
D16-2D Octagonal Table(B)

● Universal installation and maintenance tools



Related D16 Welding Tables Products

D16-2D Steel Welding Table (B4)
D16-2D Steel Welding Table (B4)
D16-2D Octagonal Table(B)
D16-2D Octagonal Table(B)
D16-2D Steel Welding Table (B3)
D16-2D Steel Welding Table (B3)
D16-2D Steel Welding Table (B2)
D16-2D Steel Welding Table (B2)
D16-2D Steel Welding Table (B1)
D16-2D Steel Welding Table (B1)
D16-2D Steel Welding Table(B0)
D16-2D Steel Welding Table(B0)
D16-3D SUS304 Welding Table (B0)
D16-3D SUS304 Welding Table (B0)
D16-3D Steel Welding Table (X3)
D16-3D Steel Welding Table (X3)
D16-3D Steel Welding Table (X2)
D16-3D Steel Welding Table (X2)
D16-3D Steel Welding Table (X1)
D16-3D Steel Welding Table (X1)
D16-3D Steel Welding Table (X0)
D16-3D Steel Welding Table (X0)
D16-3D Steel Welding Table (B3)
D16-3D Steel Welding Table (B3)
D16-3D Steel Welding Table (B1)
D16-3D Steel Welding Table (B1)
D16-3D Steel Welding Table (B0)
D16-3D Steel Welding Table (B0)
D16-3D Steel Welding Table (B2)
D16-3D Steel Welding Table (B2)
