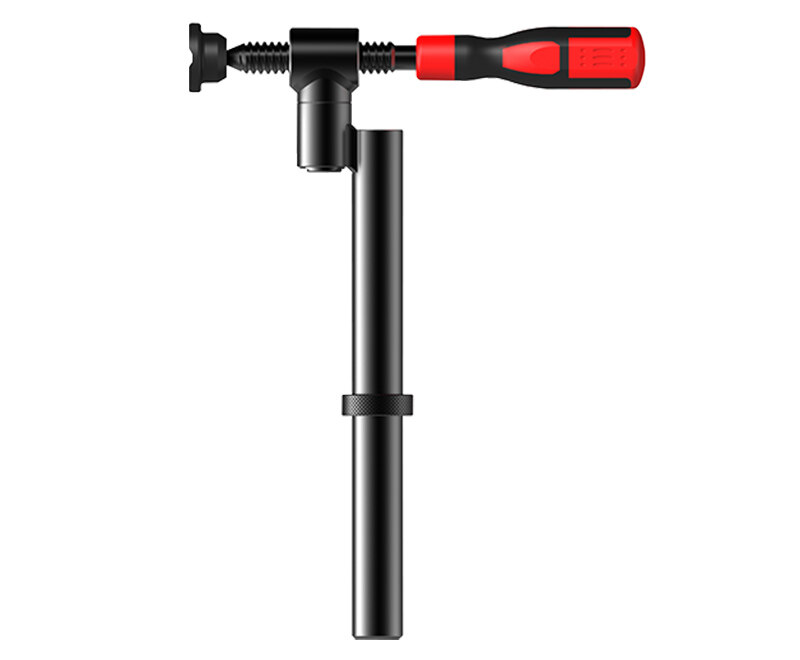

D22-90° Flexible Screw Clamp

>D28 >D16

< >

Product Parameters

Description:D22-90° Flexible Screw Clamp

● Highest force transmission with sturdy round tube

● Pressure direction 90° to the system bore,Spindle stroke ~ 70 mm

● 180° quick-acting swivel with ball stop in the joint

● With stop ring for height fixation

● Use of clamping bridges possible

● Clamping pad can be exchanged for clamping other materials such as stainless steel, Product code SWK22-81001-B0 / SWK22-81101-B0 clamping bridge can also be used.

"L" can be ordered as needed.

Technical data

Order Mark:Description + Specifications + Products Code + Quantities

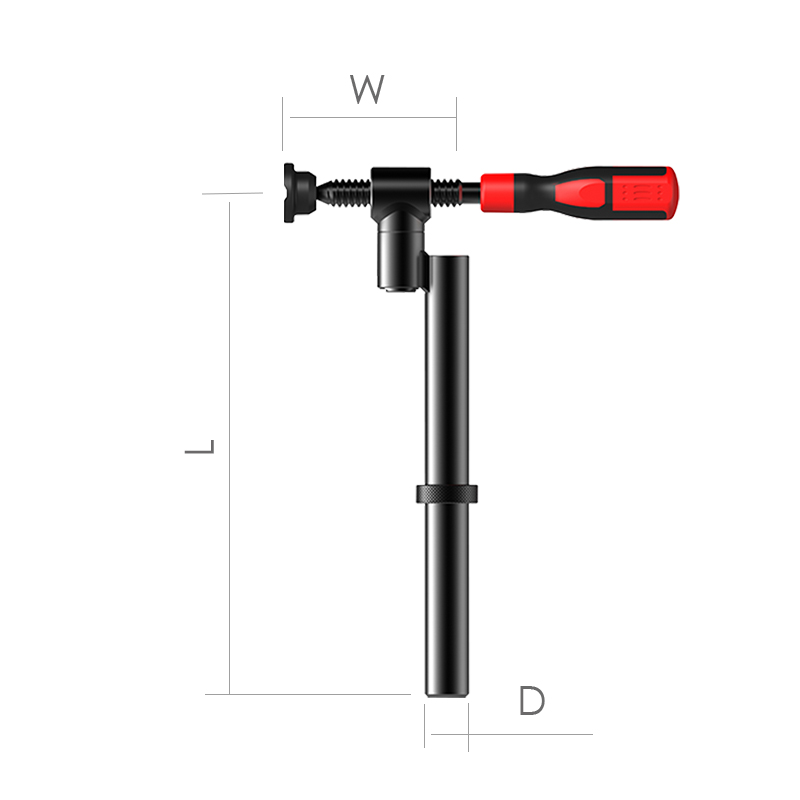

	Description	Specifications	Products Code	W(mm)	L(mm)	D(mm)	Weight(kg)	clamp force (KN)
	D22-90° Fixed Screw Clamp with Plastic Handle	100x320	SWK22-53001-B1	100	320	22	1.4

D22-90° Flexible Screw Clamp

Technical data

Order Mark:Description + Specifications + Products Code + Quantities
