D28-Toggle Clamp with Round-base

< >

Product Parameters

Description:D28-Toggle Clamp with round-base

With a fixed round-base, the complete set is provided

● Captive clamping screw at clamping arm end.

● With universal stop for indirect locations, therefore continuously.

● Toggle clamp galvanised and passivated, adapter blackened.

● Safety clamping piece with finger protection.

● Ergonomic, oil-resistant handle with large grip and soft component.

● With open support arm and horizontal leg.

Technical data

Order Mark:Description + Specifications + Products Code + Quantities

	Pictures	Description	Specifications	Products Code				Weight(kg)	clamp force (KN)

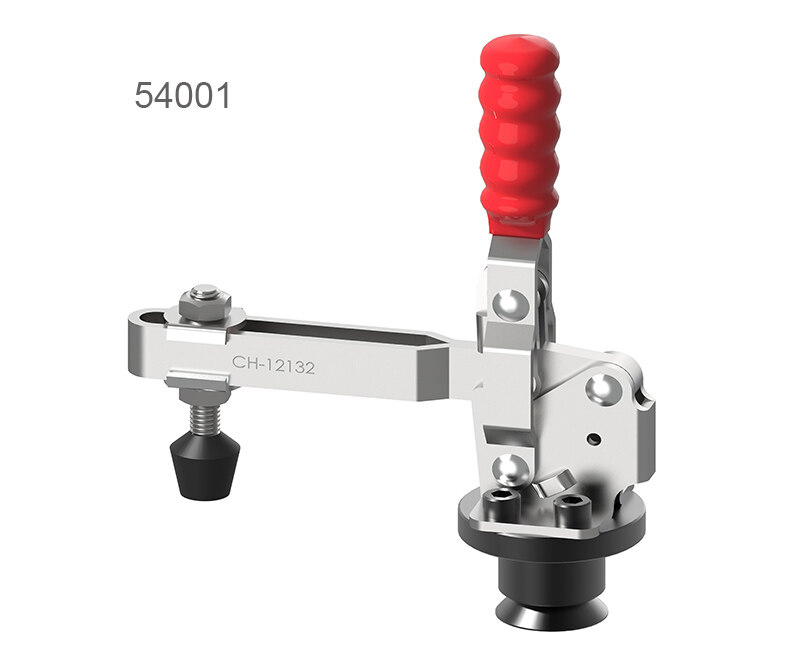

		D28-Toggle Clamp with Round-base（Vertical ）	SW-Y12132	SWK28-54001-B1
		D28-Toggle Clamp with Round-base（Horizontal）	SW-Y304-CM	SWK28-54002-B1

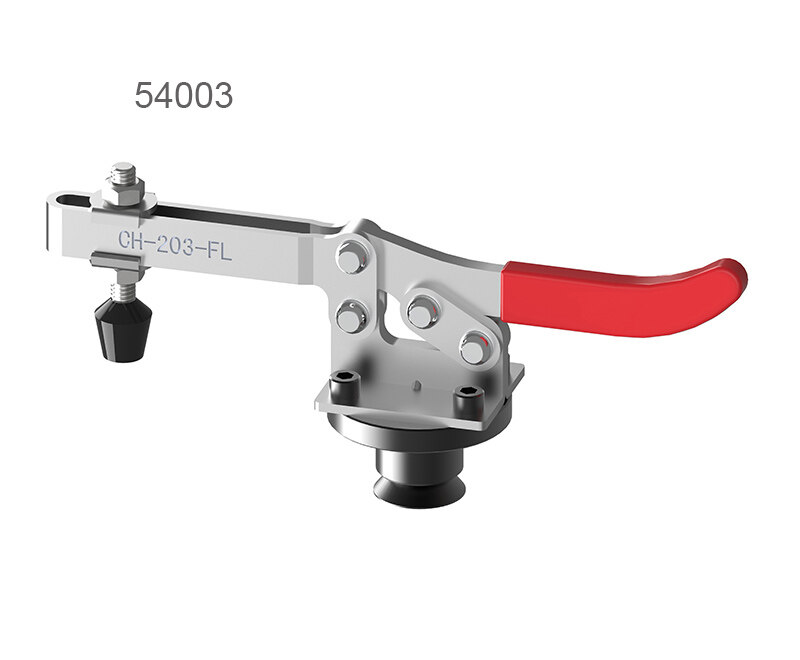

		D28-Toggle Clamp with Round-base（Vertical）	SW-Y203FL	SWK28-54003-B1
