D28-90°Fixed Screw Clamp

>D22 >D16

< >

Product Parameters

Description:D28-90°Fixed Screw Clamp

● For fast, powerful and accurately positioned clamping of many different work pieces.

● With stop ring for height fixation.

● Exchangeable actuator (e.g. spindle, short boring spindle or quick-action clamping cylinder)

● Clamping pad can be exchanged for clamping other materials such as stainless steel , Product code SWK28-81001-B0 / SWK28-81101-B0 clamping bridge can also be used.

● Exchangeable clamping tubes, available in different lengths.

"L" can be ordered as needed.

Technical data

Order Mark:Description + Specifications + Products Code + Quantities

Pictures	Description	Specifications	Products Code	W(mm)	L(mm)	D(mm)	Weight(kg)	clamp force (KN)
	D28-90°Fixed Screw Clamp with Plastic Handle	150x320	SWK28-50001-B0	150	320	28	2.3
	D28-90°Fixed Screw Clamp with Plastic Handle	200x320	SWK28-50002-B0	200	320	28	2.4

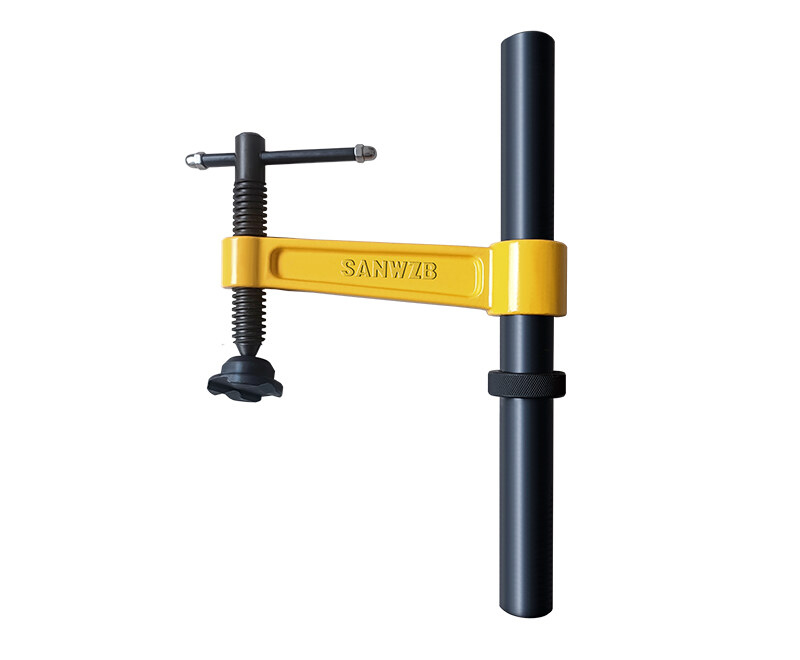

	D28-90°Fixed Screw Clamp with Quick-action Handle	150x320	SWK28-50101-B0	150	320	28	2.3
	D28-90°Fixed Screw Clamp with Quick-action Handle	200x320	SWK28-50102-B0	200	320	28	2.4

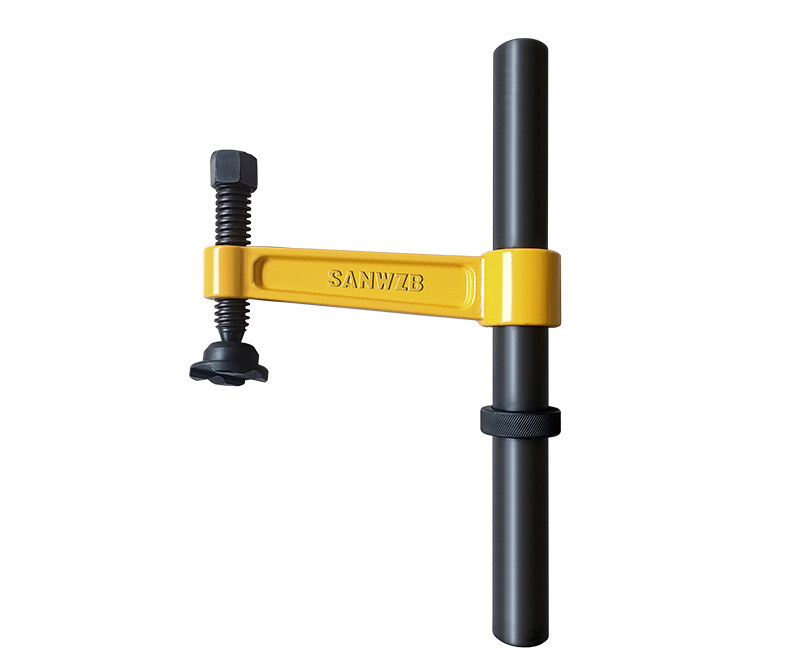

	D28-90°Fixed Screw Clamp with External hexagonal handle	150x320	SWK28-50201-B0	150	320	28	2.3
	D28-90°Fixed Screw Clamp with External hexagonal handle	200x320	SWK28-50202-B0	200	320	28	2.3
	D28-90°Fixed Screw Clamp with Ratchet handle	150x320	SWK28-50301-B0	150	320	28
	D28-90°Fixed Screw Clamp with Ratchet handle	200x320	SWK28-50302-B0	200	320	28

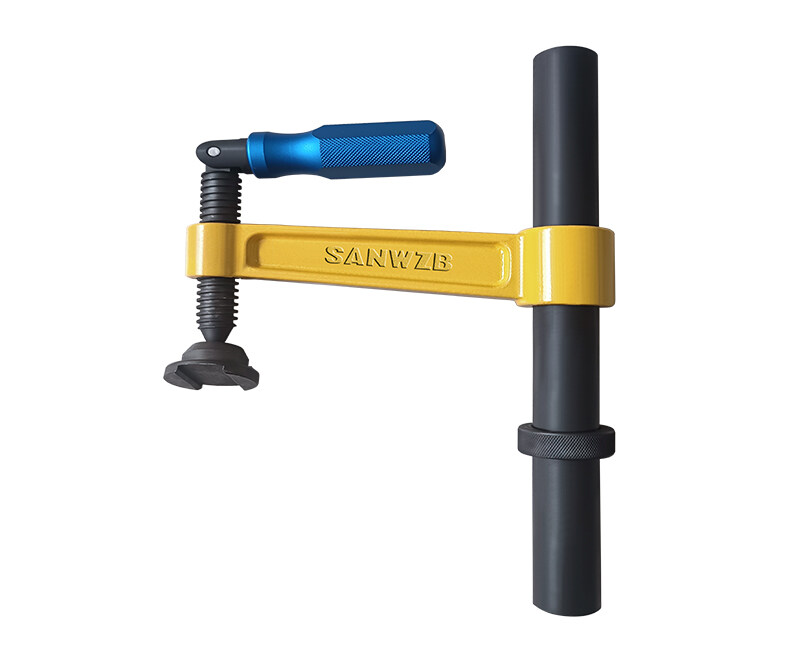

	D28-90°Fixed Screw Clamp with Rotating handle	150x320	SWK28-50401-B0	150	320	28	2.4
	D28-90°Fixed Screw Clamp with Rotating handle	200x320	SWK28-50402-B0	200	320	28	2.4

D28-90°Fixed Screw Clamp
