D22-45° Flexible Screw Clamp

< >

Product Parameters

Description:D22-45° Flexible Screw Clamp

● Higher clamping forces quickly with little expenditure of energy

● Up to 5x faster clamping than conventional screw clamps

● 360° swivelling lever bypasses interfering edges

● Highest force transmission with sturdy round tubes

● Entire clamping mechanism is exchangeable

● The pressure plate can be replaced with other materials,Such as stainless steel, aluminum alloy.

"L" can be ordered as needed.

Technical data

Order Mark:Description + Specifications + Products Code + Quantities

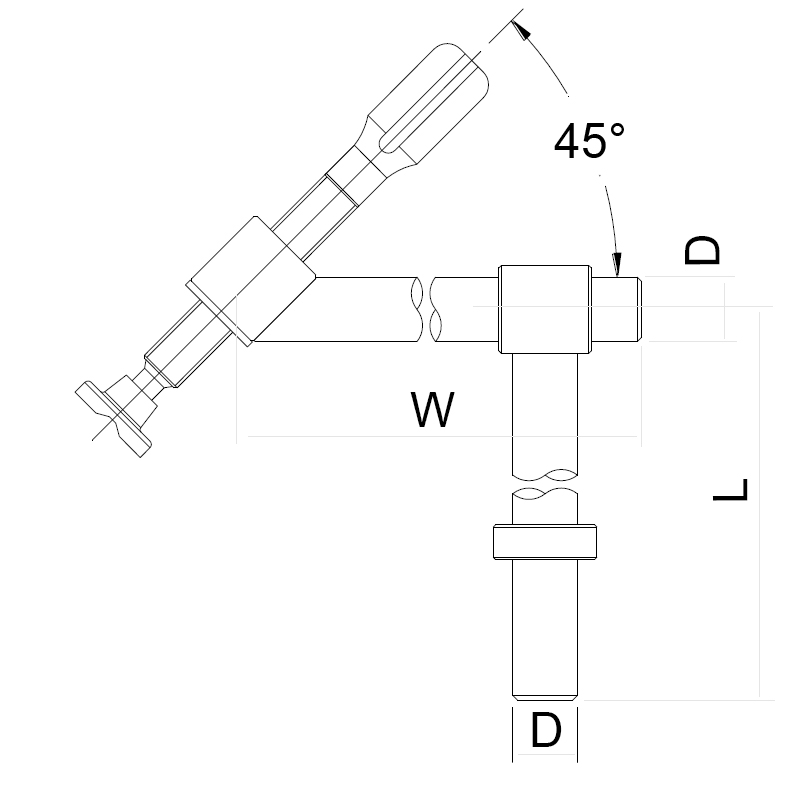

Pictures	Description	Specifications	Products Code	W(mm)	L(mm)	D(mm)	Weight(kg)	clamp force (KN)

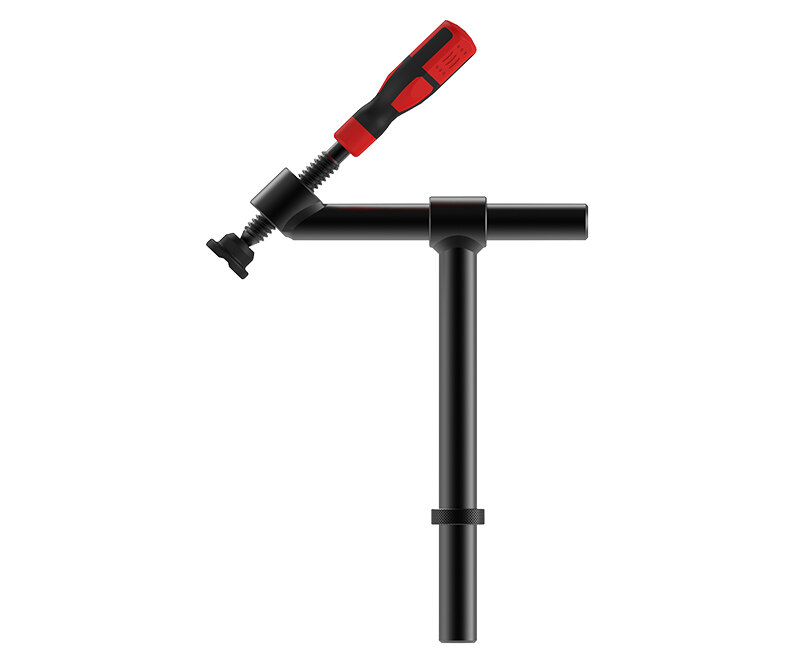

	D22-45°Flexible Screw Clamp with Plastic Handle	220x220	SWK22-52001-B1	220	220	22	2.3
	D22-45°Flexible Screw Clamp with Plastic Handle	220x320	SWK22-52002-B1	220	320	22	2.4
	D22-45°Flexible Screw Clamp with Quick-action Handle	220x220	SWK22-52101-B1	220	220	22	2.3
	D22-45°Flexible Screw Clamp with Quick-action Handle	220x320	SWK22-52102-B1	220	320	22	2.4

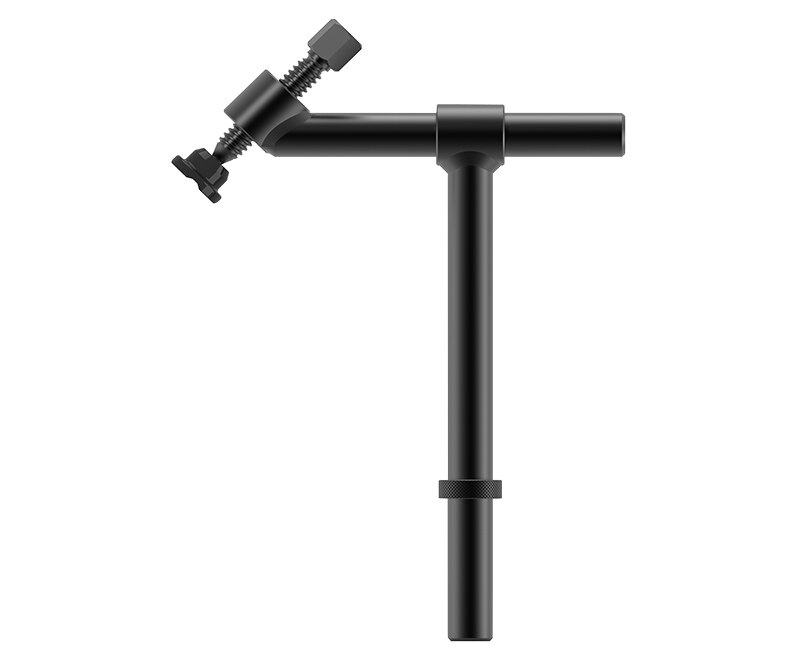

	D22-45°Flexible Screw Clamp with External hexagonal handle	220x220	SWK22-52201-B1	220	220	22	2.3
	D22-45°Flexible Screw Clamp with External hexagonal handle	220x320	SWK22-52202-B1	220	320	22	2.3
