D28-180° Flexible Screw Clamp

>D22>D16
  • D28-180° Flexible Screw Clamp
  • D28-180° Flexible Screw Clamp
  • D28-180° Flexible Screw Clamp
  • D28-180° Flexible Screw Clamp
  • D28-180° Flexible Screw Clamp
Product Parameters
Description:D28-180° Flexible Screw Clamp
● Can be inserted through system bores, eliminating avoidable interfering edgesEach tube can be used individually.
● Adjustable projection.
● Highest force transmission with sturdy round tubes.
● Clamping pad can be exchanged for clamping other materials such as stainless steel, Product code SWK28-81001-B0 SWK28-81101-B0 clamping bridge can also be used.
"L" can be ordered as needed.


Technical data


        Order Mark:Description + Specifications + Products Code + Quantities

Pictures

Description

Specifications

Products Code

W(mm)

L(mm)

D(mm)

Weight(kg)

clamp force (KN)

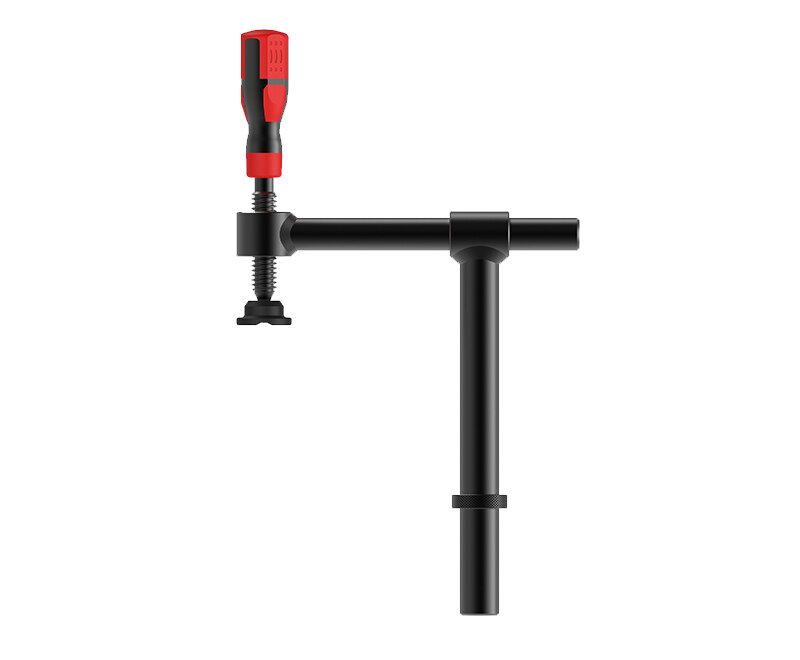

D28-180°Flexible Screw Clamp with Plastic Handle

220x220

SWK28-51001-B1

220

220

28

2.3



220x320

SWK28-51002-B1

220

320

28

2.4

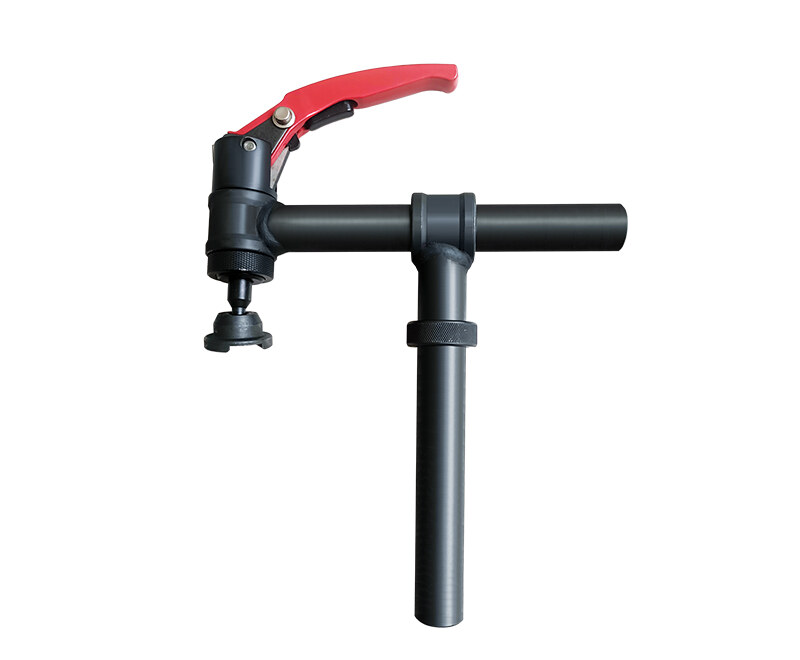

D28-180°Flexible Screw Clamp with Quick-action Handle

220x220

SWK28-51101-B1

220

220

28

2.3



220x320

SWK28-51102-B1

220

320

28

2.4

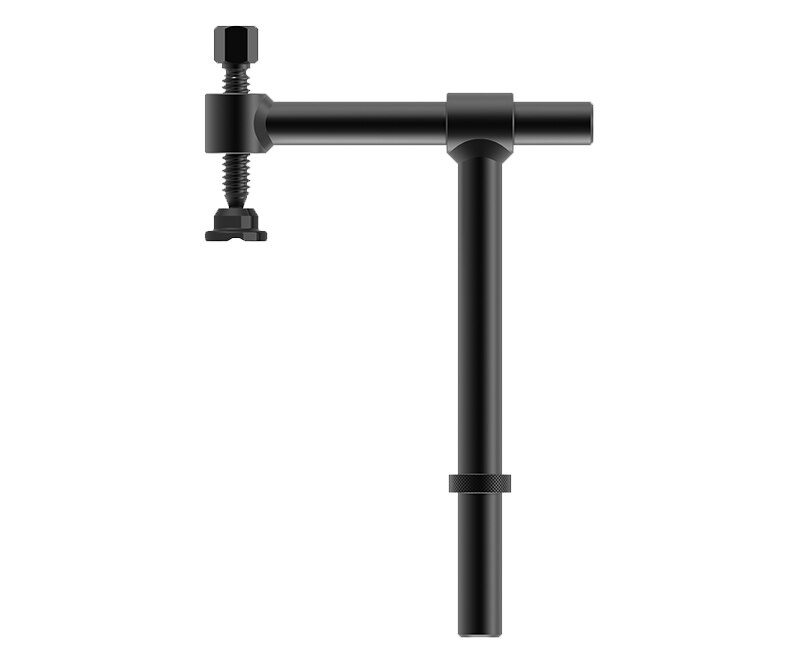

D28-180°Flexible Screw Clamp with External hexagonal handle

220x220

SWK28-51201-B1

220

220

28

2.3



220x320

SWK28-51202-B1

220

320

28

2.3

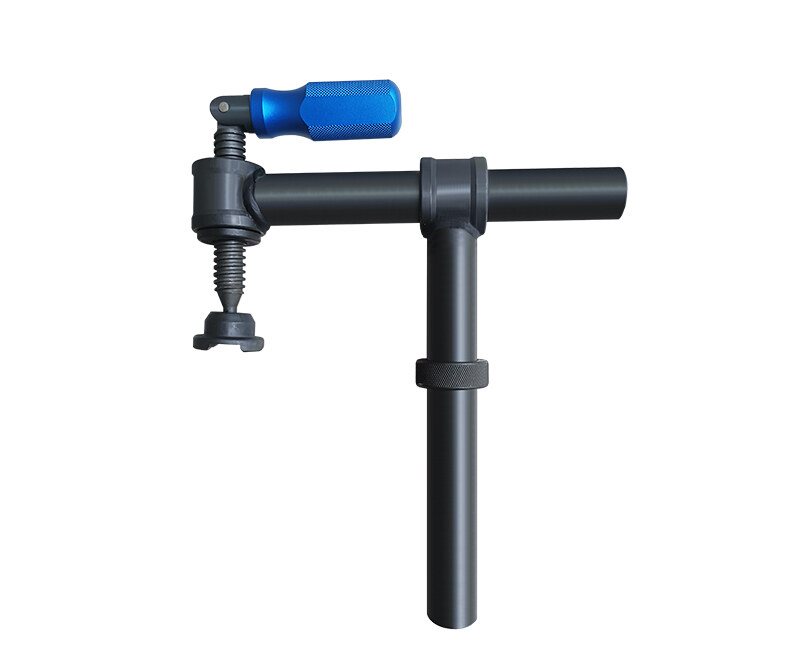

D28-180°Flexible Screw Clamp with Ratchet handle

220x220

SWK28-51301-B1

220

220

28





220x320

SWK28-51302-B1

220

320

28

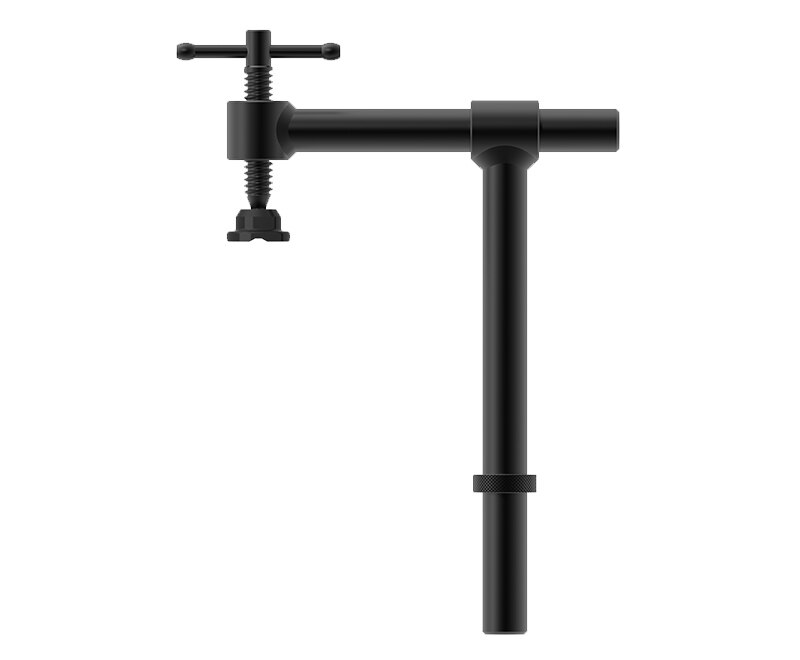

D28-180°Flexible Screw Clamp with Rotating handle

220x220

SWK28-51401-B1

220

220

28

2.4



220x320

SWK28-51402-B1

220

320

28

2.4
