D28-Clamping with thread bushing

< >

Product Parameters

Description:D28-Clamping with thread bushing

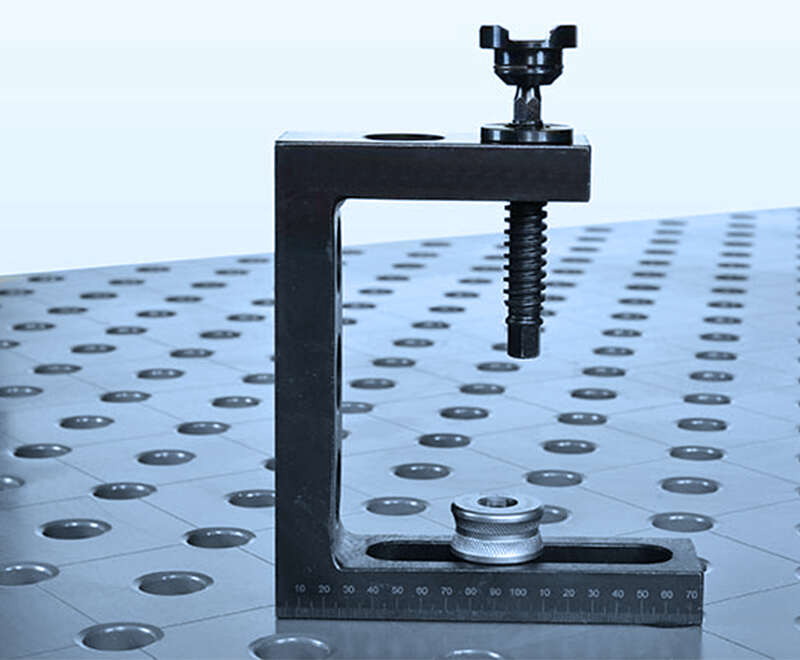

● Clamping with thread bushing（Plastic Rotating Handle）:

○ High-quality 2-component plastic handle

○ Long threaded spindle

○ Threaded bushing works with system 28 bore

○ Exchangeable clamping pad (plastic, stainless steel)

○ Suitable to pretension work pieces

● Clamp with thread bushing（External hexagonal handle）:

○ Highly recommended for confined spaces

○ Direct use in system bores possible，Threaded bushing works with system 28 bore

○ Ideal to pretension work pieces

● Quick-action clamping cylinder( with clamping pads):

○ Up to 5x faster clamping than conventional screw clamps

○ The locking mechanism ensures controlled, fast and vibration-proof clamping

○ Higher clamping forces quickly with little expenditure of energy

○ Large 9 mm stroke

○ The self-centring support and pressure piece clamps the work piece and can be exchanged

Technical data

Order Mark:Description + Specifications + Products Code + Quantities

Pictures	Description	Specifications	Products Code	W(mm)	L(mm)	D(mm)	Weight(kg)	clamp force (KN)

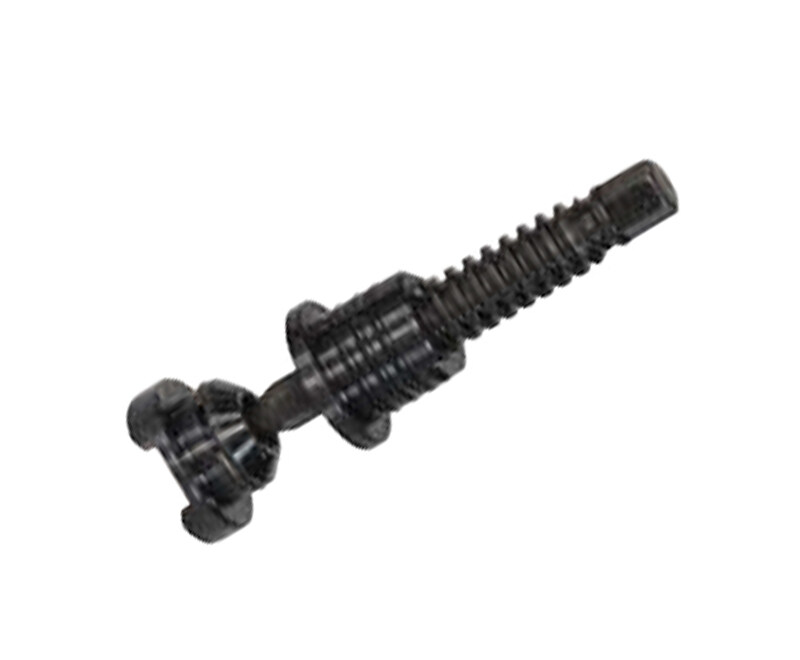

	D28-Clamping with thread bushing with Plastic Handle	φ40 x250	SWK28-55001-B1			28	0.50
	D28-Clamping with thread bushing with External hexagonal handle	φ40 x138	SWK28-55002-B1			28	0.36
	D28-Quick-action clamping cylinde with Ratchet handle	φ40 x (105+9)	SWK28-55003-B1			28	0.88
