D22-180° Flexible Screw Clamp

>D28 >D16

< >

Product Parameters

Description:D22-180° Flexible Screw Clamp

● Can be inserted through system bores, eliminating avoidable interfering edgesEach tube can be used individually.

● Adjustable projection.

● Highest force transmission with sturdy round tubes.

● Clamping pad can be exchanged for clamping other materials such as stainless steel, Product code SWK22-81001-B0 / SWK22-81101-B0 clamping bridge can also be used.

"L" can be ordered as needed.

Technical data

Order Mark:Description + Specifications + Products Code + Quantities

Pictures	Description	Specifications	Products Code	W(mm)	L(mm)	D(mm)	Weight(kg)	clamp force (KN)

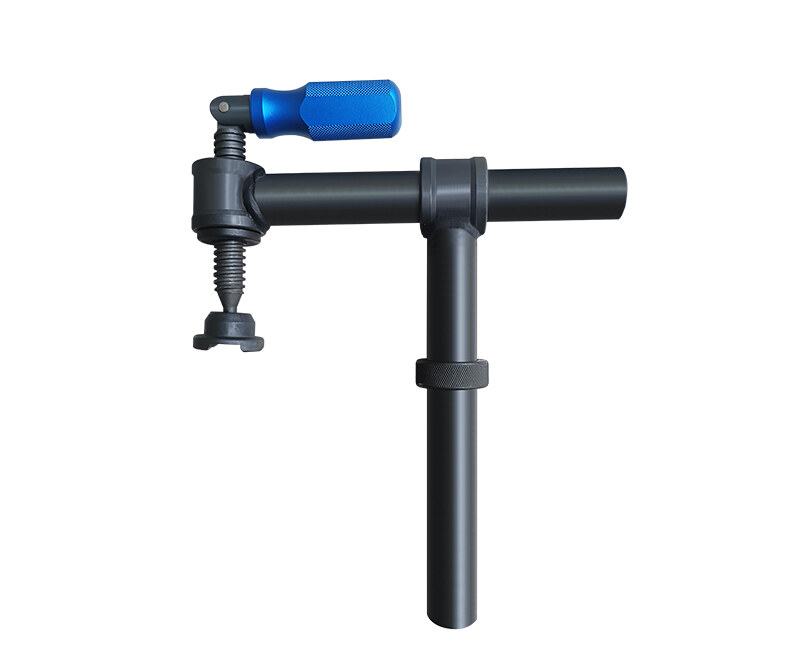

	D22-180°Flexible Screw Clamp with Plastic Handle	220x220	SWK22-51001-B1	220	220	22	2.3
	D22-180°Flexible Screw Clamp with Plastic Handle	220x320	SWK22-51002-B1	220	320	22	2.4

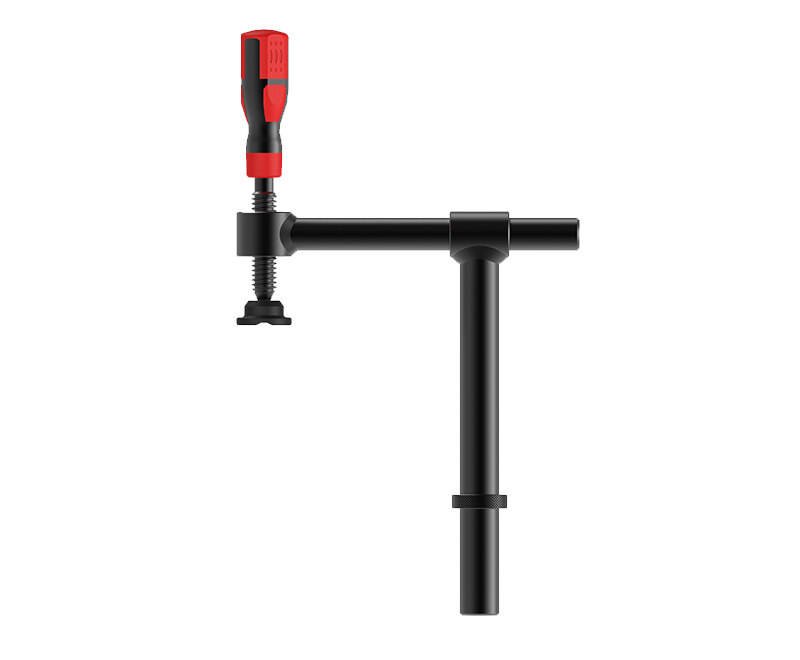

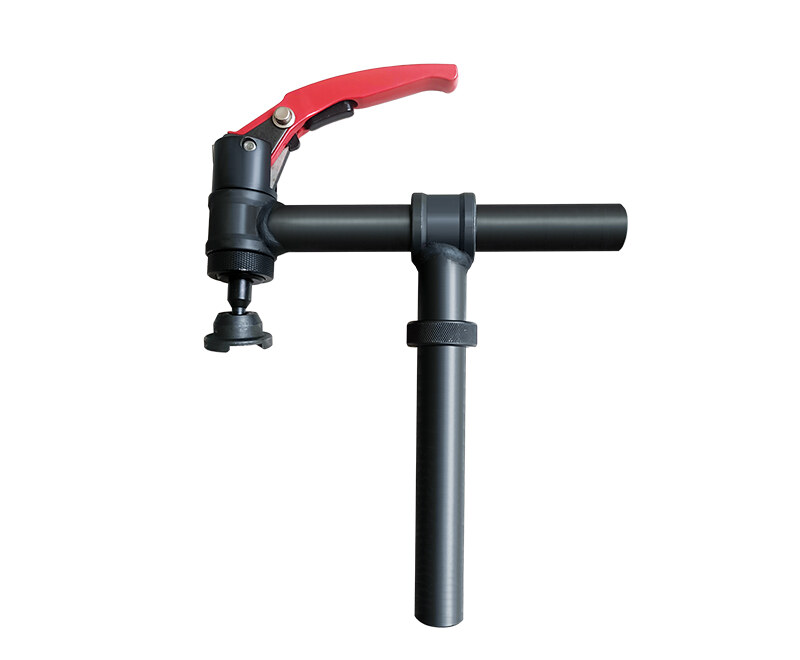

	D22-180°Flexible Screw Clamp with Quick-action Handle	220x220	SWK22-51101-B1	220	220	22	2.3
	D22-180°Flexible Screw Clamp with Quick-action Handle	220x320	SWK22-51102-B1	220	320	22	2.4

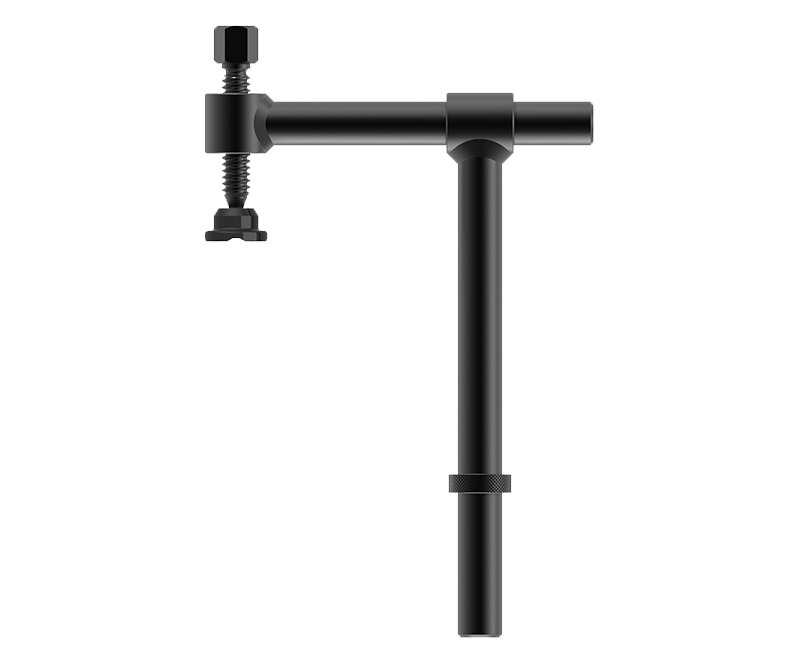

	D22-180°Flexible Screw Clamp with External hexagonal handle	220x220	SWK22-51201-B1	220	220	22	2.3
	D22-180°Flexible Screw Clamp with External hexagonal handle	220x320	SWK22-51202-B1	220	320	22	2.3
	D22-180°Flexible Screw Clamp with Ratchet handle	220x220	SWK22-51301-B1	220	220	22
	D22-180°Flexible Screw Clamp with Ratchet handle	220x320	SWK22-51302-B1	220	320	22

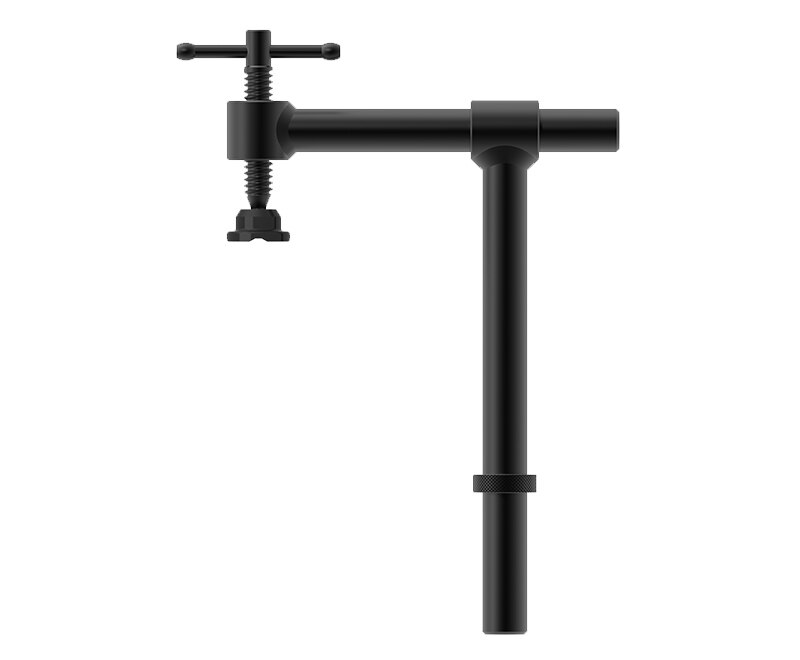

	D22-180°Flexible Screw Clamp with Rotating handle	220x220	SWK22-51401-B1	220	220	22	2.4
	D22-180°Flexible Screw Clamp with Rotating handle	220x320	SWK22-51402-B1	220	320	22	2.4
