D16-90° Fixed Screw Clamp

>D28 >D22

< >

Product Parameters

Description:D16-90°Fixed Screw Clamp

● For fast, powerful and accurately positioned clamping of many different work pieces.

● With stop ring for height fixation.

● Exchangeable actuator (e.g. spindle, short boring spindle or quick-action clamping cylinder)

● Clamping pad can be exchanged for clamping other materials such as stainless steel , Product code SWK16-81001-B0 / SWK16-81101-B0 clamping bridge can also be used.

● Exchangeable clamping tubes, available in different lengths.

"L" can be ordered as needed.

Technical data

Order Mark:Description + Specifications + Products Code + Quantities

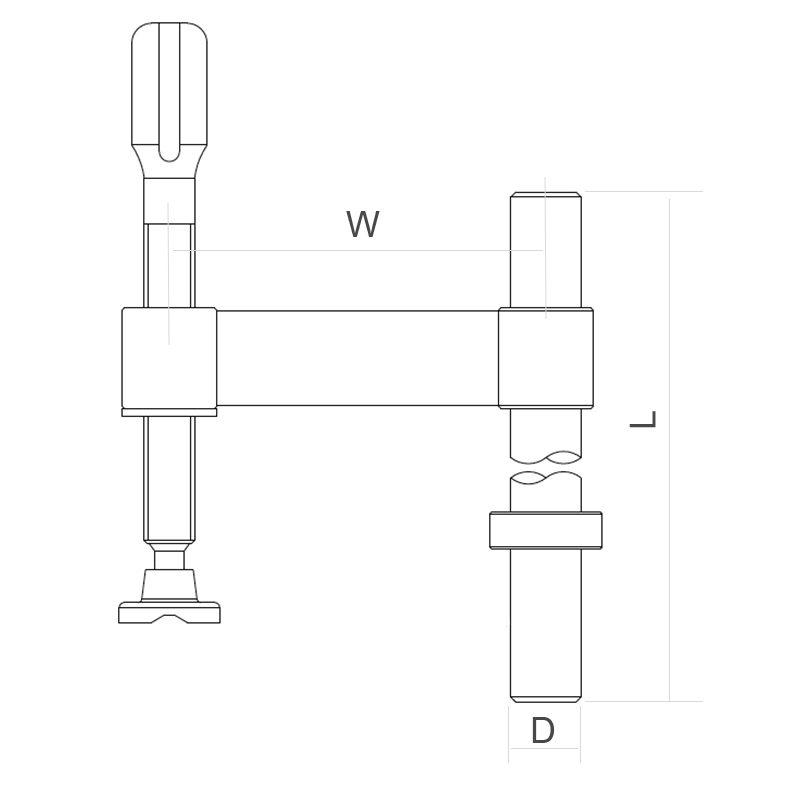

Pictures	Description	Specifications	Products Code	W(mm)	L(mm)	D(mm)	Weight(kg)	clamp force (KN)

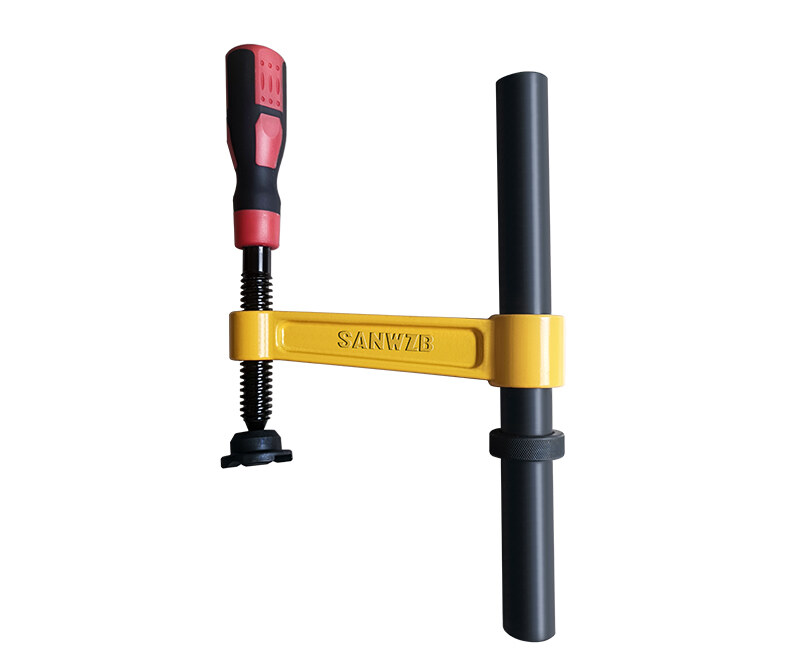

	D16-90°Fixed Screw Clamp with Plastic Handle	120x200	SWK16-50001-B0	120	200	16
	D16-90°Fixed Screw Clamp with Plastic Handle

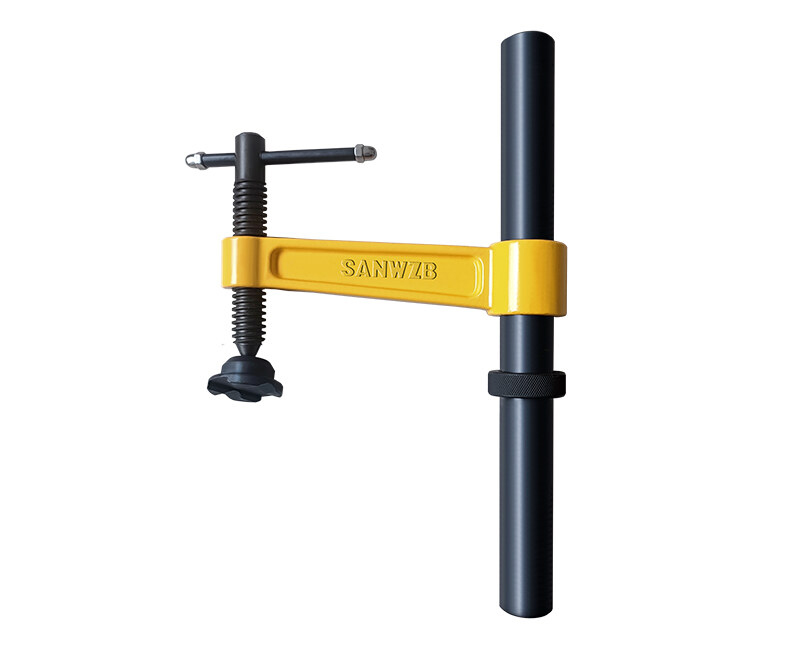

	D16-90°Fixed Screw Clamp with Quick-action Handle	120x200	SWK16-50101-B0	120	200	16
	D16-90°Fixed Screw Clamp with Quick-action Handle

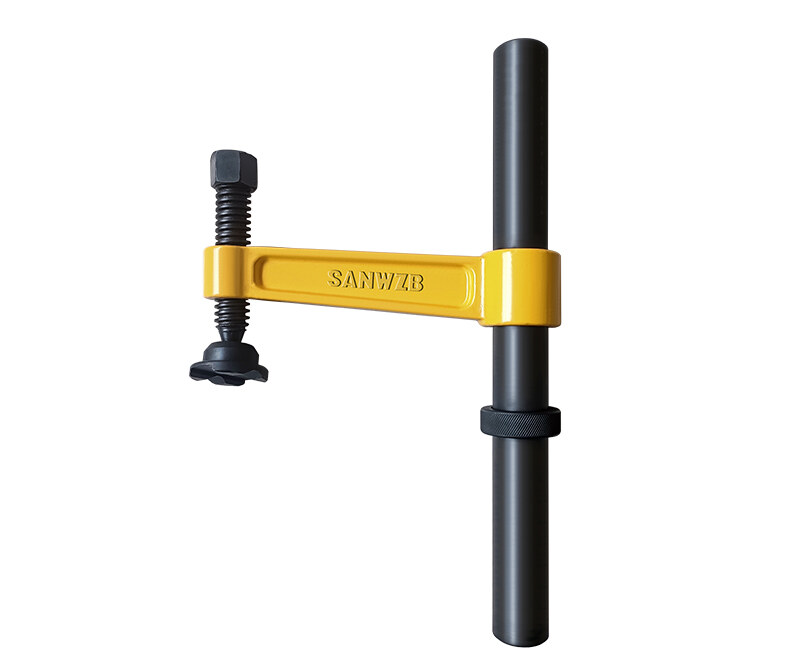

	D16-90°Fixed Screw Clamp with External hexagonal handle	120x200	SWK16-50201-B0	120	200	16
	D16-90°Fixed Screw Clamp with External hexagonal handle

D16-90° Fixed Screw Clamp

Technical data
