Spacer blocks

System:D28|  D22  |  D16  D28 system spacer blocks

>>> PARTS CATALOGUE

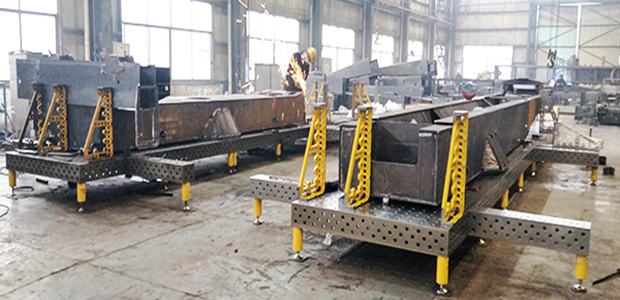

There are situations where having a bigger welding table would be nice. We developed the spacer block so the welding table can grow with your needs.

>

TABLE LEGS

· For use as a table extension

· Clamping surface: Five-sided

· 100 x 100 mm diagonal grid, with grid lines

· Spacer blocks with hardened surfaces are

protected against weld spatter adhesion, thus

reducing wear.





SPACER BLOCKS

>

ANGLE & OTHER

>

LOCATING PARTS

>

CLAMPS

>

CLAMPING BOLTS

>

SPACER & OTHERS

>

TABLE ACCESSORIES

>

FIXTURING KITS




200x200 Square block U-shape 400x200 Square block U-shape Square block C-shape Connection angle
For use as a table extension, face sides with diagonal rid For use as a table extension, face sides with diagonal rid As table extension,table stop or as connection of system components, continuously adjustable with oblong holes Used as a bridge between clamping and locating angles or 3D welding tables
Spacer block L-form
Third axis for expansion as clamping tower or laterally as exact table stop

Product details:











Product name

Spec.

Products Code

Material

Weight

ID

LxWxH(mm)

Painting

Blackening

Nitriding & Blackening

Chrome Plating

(kg)

28-20001

200x200 Square block U-shape

500x200x200

SWK28-20001-B0

SWK28-20001-B1

SWK28-20001-B3

SWK28-20001-B4

high strength steel

55.0

28-20002

200x200 Square block U-shape

1000x200x200

SWK28-20002-B0

SWK28-20002-B1

SWK28-20002-B3

SWK28-20002-B4

high strength steel

102.0

28-20003

200x200 Square block U-shape

1200x200x200

SWK28-20003-B0

SWK28-20003-B1

SWK28-20003-B3

SWK28-20003-B4

high strength steel

120.0

28-20004

200x200 Square block U-shape

1500x200x200

SWK28-20004-B0

SWK28-20004-B1

SWK28-20004-B3

SWK28-20004-B4

high strength steel

150.0

28-20005

200x200 Square block U-shape

2000x200x200

SWK28-20005-B0

SWK28-20005-B1

SWK28-20005-B3

SWK28-20005-B4

high strength steel

200.0

28-20006

200x200 Square block U-shape

2400x200x200

SWK28-20006-B0

SWK28-20006-B1

SWK28-20006-B3

SWK28-20006-B4

high strength steel

235.0

28-20007

200x200 Square block U-shape

3000x200x200

SWK28-20007-B0

SWK28-20007-B1

SWK28-20007-B3

SWK28-20007-B4

high strength steel

285.0

28-20008

200x200 Square block U-shape

4000x200x200

SWK28-20008-B0

SWK28-20008-B1

SWK28-20008-B3

SWK28-20008-B4

high strength steel

374.0

28-20015

400x200 Square block U-shape

500x400x200

SWK28-20015-B0

SWK28-20015-B1

SWK28-20015-B3

SWK28-20015-B4

high strength steel

81.0

28-20016

400x200 Square block U-shape

1000x400x200

SWK28-20016-B0

SWK28-20016-B1

SWK28-20016-B3

SWK28-20016-B4

high strength steel

149.0

28-20009

400x200 Square block U-shape

1200x400x200

SWK28-20009-B0

SWK28-20009-B1

SWK28-20009-B3

SWK28-20009-B4

high strength steel

174.0

28-20010

400x200 Square block U-shape

1500x400x200

SWK28-20010-B0

SWK28-20010-B1

SWK28-20010-B3

SWK28-20010-B4

high strength steel

215.0

28-20011

400x200 Square block U-shape

2000x400x200

SWK28-20011-B0

SWK28-20011-B1

SWK28-20011-B3

SWK28-20011-B4

high strength steel

272.0

28-20012

400x200 Square block U-shape

2400x400x200

SWK28-20012-B0

SWK28-20012-B1

SWK28-20012-B3

SWK28-20012-B4

high strength steel

320.0

28-20013

400x200 Square block U-shape

3000x400x200

SWK28-20013-B0

SWK28-20013-B1

SWK28-20013-B3

SWK28-20013-B4

high strength steel

400.0

28-20014

400x200 Square block U-shape

4000x400x200

SWK28-20014-B0

SWK28-20014-B1

SWK28-20014-B3

SWK28-20014-B4

high strength steel

526.0

28-20017

Square block C-shape

500x200x100-L



SWK28-20017-B1

SWK28-20017-B3



high strength steel

35.8

28-20018

Square block C-shape

500x200x100-R



SWK28-20018-B1

SWK28-20018-B3



high strength steel

35.8

28-20019

Square block C-shape

1000x200x100-L



SWK28-20019-B1

SWK28-20019-B3



high strength steel

68.5

28-20020

Square block C-shape

1000x200x100-R



SWK28-20020-B1

SWK28-20020-B3



high strength steel

68.5

28-20021

Connection angle

500x100x100



SWK28-20021-B1

SWK28-20021-B3



high strength steel

15.0

28-21001

Spacer block L-form

500x200x100

SWK28-21001-B0

SWK28-21001-B1

SWK28-21001-B3

SWK28-21001-B4

high strength steel

27.0

28-21002

Spacer block L-form

1000x200x100

SWK28-21002-B0

SWK28-21002-B1

SWK28-21002-B3

SWK28-21002-B4

high strength steel

51.0

28-21003

Spacer block L-form

1200x200x100

SWK28-21003-B0

SWK28-21003-B1

SWK28-21003-B3

SWK28-21003-B4

high strength steel

60.0

28-21004

Spacer block L-form

1500x200x100

SWK28-21004-B0

SWK28-21004-B1

SWK28-21004-B3

SWK28-21004-B4

high strength steel

74.0


 Product details:


200x200 Square block U-shape(system D28)
200x200 Square block U-shape(system D28)
400x200 Square block U-shape(system D28)
400x200 Square block U-shape(system D28)
Square block C-shape(system D28)
Square block C-shape(system D28)
Connection angle(system D28)
Connection angle(system D28)
Spacer block L-form(system D28)
Spacer block L-form(system D28)
