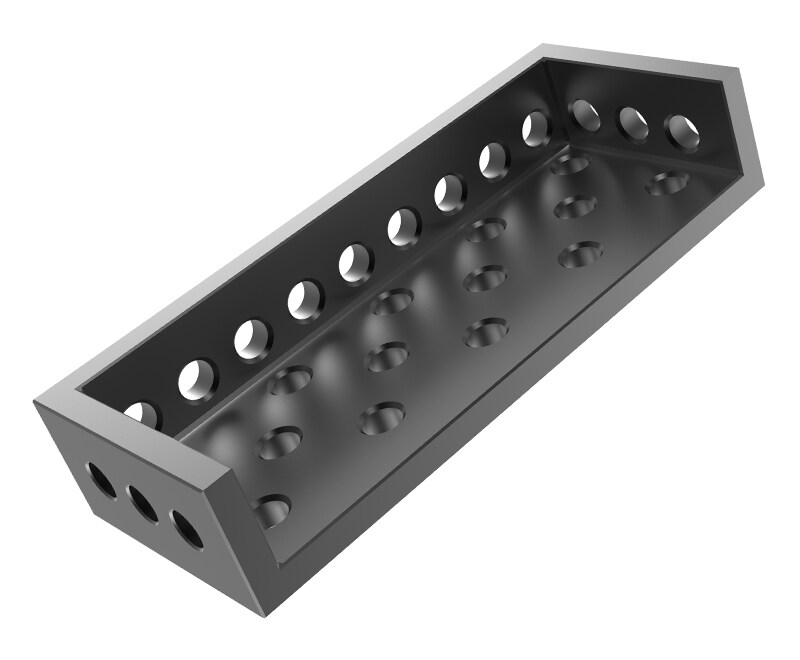

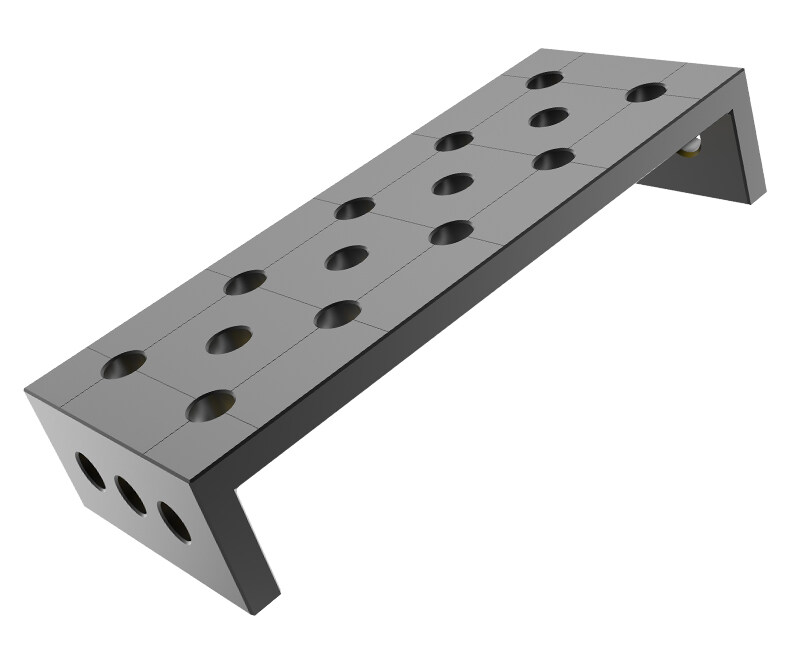

D28-200x100 Spacer Block L-form

>D22>D16
  • D28-200x100 Spacer Block L-form
  • D28-200x100 Spacer Block L-form
Product Parameters

Description:

D28-200x100 Spacer block L-form ,Diagonal grid 100x100mm



• Material: Q355B

• Surface: Refer to the technical parameter table below

 Table extension between two 3D welding tables with the help of connection bolts.

 Main application:Connection of system components,Third axis for expansion as clamping tower or laterally as exact table stop, 4-sided application.

For use in confined available space,Numerous application possibilities with system bores and oblong holes.

• Tolerance parameters

□ L±0.1 x W±0.1 x H±0.1 (mm)          Hole: ∅28D10(+0.149/+0.065)   □  Flatness: 0.1/1000 (mm)

∥ Parallelism:  0.1/1000 (mm),   ⊥ Verticality: 0.1/200 (mm)         Finished plate thickness:24-25 (mm)

• All system bores with protective countersink, perfect design and ultimate functionality

• Improved Square block reinforcement through additional cross-ribs.

• The front face  of the Square blockare labeled with SANWZB logo.Coordinate marking of the bores in the X and Y-direction,If requested by the customer.

• The measurement unit is based on metric system, imperial system is available on request.

● Commonly used Specifications and Sizes:

No.

Product Description

OD(LxWxH) mm

① Painting

② Blackening

③ Nitriding

④ Chrome Plating

Weightkg

1

D28-500x200x100 Spacer block L-form

500x200x100

SWK28-21001-B0

SWK28-21001-B1

SWK28-21001-B2

SWK28-21001-B4

27.0

2

D28-1000x200x100 Spacer block L-form

1000x200x100

SWK28-21002-B0

SWK28-21002-B1

SWK28-21002-B2

SWK28-21002-B4

51.0

3

D28-1200x200x100 Spacer block L-form

1200x200x100

SWK28-21003-B0

SWK28-21003-B1

SWK28-21003-B2

SWK28-21003-B4

60.0

4

D28-1500x200x100 Spacer block L-form

1500x200x100

SWK28-21004-B0

SWK28-21004-B1

SWK28-21004-B2

SWK28-21004-B4

74.0

● The hardness level
 We provide multiple supply status of our products,Adapt to the choices of the different users
① Painting(Non-working surface,Pray anti-rust oil on the working surface)

Overall Hardness HV 280-320

 Blackening (Phosphating)

Overall Hardness HV 280-320,The surface is black and rust resistant

 Nitriding (Dark grey or Black)


After nitride, the comprehensive hardness HV280-320, Metallographic hardening layer hardness>HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing.

 Hard Chrome Plating
After Plating, Comprehensive Hardness: HV 280-320,Surface hardness HV> 600

● Fitting accessories











Bolts Countersunk Rapid Bolts  Countersunk Bolts Bolts with handle Brush   Ball end hex wrench  Assembly lever
