D16-100x100 Spacer Block U-shape

>D28 >D22

< >

Product Parameters

Description:

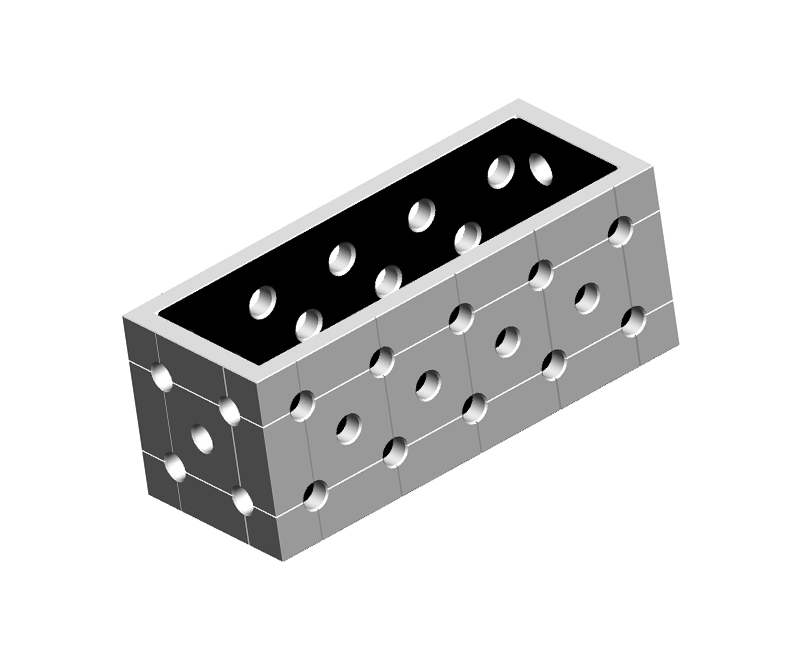

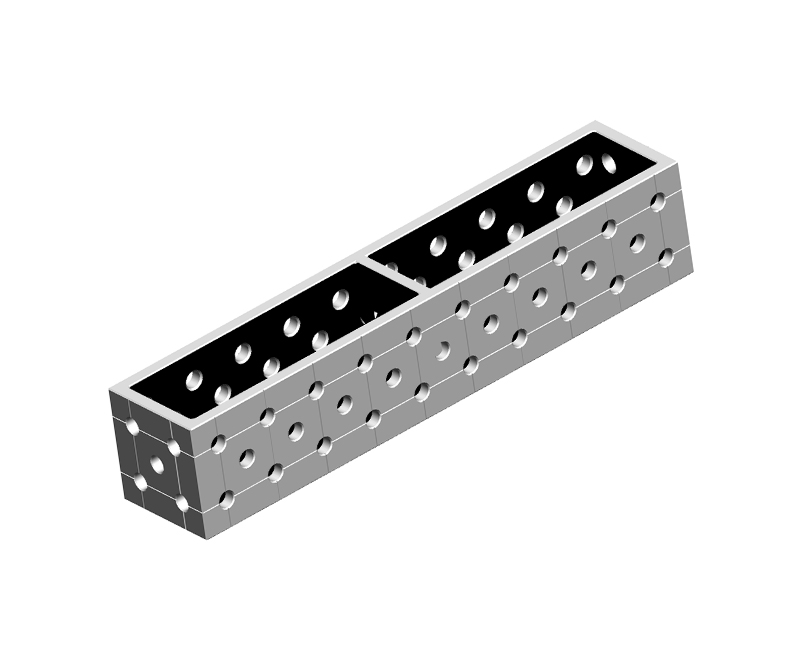

D16-100x100 Square block U-shape,Diagonal grid 50x50mm

＞

150x100

• Material: Q355B

• Surface: Refer to the technical parameter table below

• Table extension between two 3D welding tables with the help of connection bolts.

• Main application:Connection of system components.As table stop,Application: 5-sided.

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅16D10(+0.120/+0.050) □ Flatness: 0.1/1000 (mm)

∥ Parallelism: 0.1/1000 (mm), ⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:12-12.5 (mm)

• If the length ≥ 1000mm, the non-working face is equipped with mounting holes for mounting supporting legs.

• All system bores with protective countersink, perfect design and ultimate functionality

• Improved Square block reinforcement through additional cross-ribs.

• The front face of the Square blockare labeled with SANWZB logo.Coordinate marking of the bores in the X and Y-direction,If requested by the customer.

• The measurement unit is based on metric system, imperial system is available on request.

● Commonly used Specifications and Sizes:

No.	Product Description	OD(LxWxH) mm	① Painting	② Blackening	③ Nitriding	④ Chrome Plating	Weight（kg）
1	D16-150x100x100 Square block U-shape	150x100x100		SWK16-20004-B1	SWK16-20004-B2	SWK16-20004-B4	5.6
2	D16-250x100x100 Square block U-shape	250x100x200		SWK16-20005-B1	SWK16-20005-B2	SWK16-20005-B4	8.5
3	D16-300x100x100 Square block U-shape	300x100x100		SWK16-20006-B1	SWK16-20006-B2	SWK16-20006-B4	9.9
4	D16-500x100x100 Square block U-shape	500x100x100		SWK16-20007-B1	SWK16-20007-B2	SWK16-20007-B4	13.0
5	D16-1000x100x100 Square block U-shape	1000x100x100		SWK16-20009-B1	SWK16-20009-B2	SWK16-20009-B4	25.0
6	D16-1500x100x100 Square block U-shape	1500x100x100		SWK16-20011-B1	SWK16-20011-B2	SWK16-20011-B4	37.0
7	D16-2000x100x100 Square block U-shape	2000x100x100		SWK16-20012-B1	SWK16-20012-B2	SWK16-20012-B4	50.0

● The hardness level

We provide multiple supply status of our products,Adapt to the choices of the different users

① Painting(Non-working surface,Pray anti-rust oil on the working surface)
Overall Hardness HV 280-320
② Blackening (Phosphating)
Overall Hardness HV 280-320,The surface is black and rust resistant
③ Nitriding (Dark grey or Black)

After nitride, the comprehensive hardness HV280-320, Metallographic hardening layer hardness＞HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing.
④ Hard Chrome Plating
After Plating, Comprehensive Hardness: HV 280-320,Surface hardness HV> 600

Bolts

Countersunk Rapid Bolts

Countersunk Bolts

Bolts with handle

Brush

Ball end hex wrench

Assembly lever

D16-100x100 Spacer Block U-shape

● Fitting accessories

Related Spacer Blocks Products

	① Painting(Non-working surface,Pray anti-rust oil on the working surface)	Overall Hardness HV 280-320
	② Blackening (Phosphating)	Overall Hardness HV 280-320,The surface is black and rust resistant
	③ Nitriding (Dark grey or Black)	After nitride, the comprehensive hardness HV280-320, Metallographic hardening layer hardness＞HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing.
	④ Hard Chrome Plating	After Plating, Comprehensive Hardness: HV 280-320,Surface hardness HV> 600
