Location:Home » Products » 3D Welding tables » Locating parts

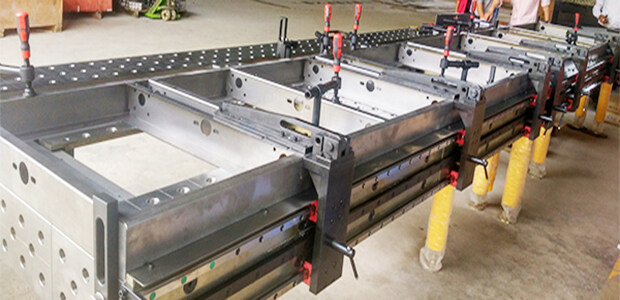

Locating parts

System:D28|  D22  |  D16  D28 system spacer blocks

>>> PARTS CATALOGUE


Easy to use in work areas with limited space.

>

TABLE LEGS

● Standard precision scaling permits fine adjustment using grid lines.
● Stops with a combination of system bore and oblong hole are continuously adjustable.
● Precision in 3D,Gentle but definite fixation,Straightforward fixation of all components,Processing of all components with positioning absolutely free of play.

>

SPACER BLOCKS

>

ANGLE & OTHER

LOCATING PARTS

>

CLAMPS

>

CLAMPING BOLTS

>

SPACER & OTHERS

>

TABLE ACCESSORIES

>

FIXTURING KITS




L-locating angle U-locating angle Angle bracket V-block locations
Continuous adjustment and locking via oblong hole,Combination system bores / oblong hole for numerous clamping possibilities. Extended face plate with two bores in the face plate,Extended mounting plate with oblong hole, therefore moveable on grid. Highly robust stop and locking angle for work pieces and system components.

Precise holding of tube elements.also suitable for rectangular tubes.

Stops L-Stops T-Stops Locating disk
Continuously adjustable with precision scaling on both sides,Combination system bore / oblong hole for numerous clamping possibilities. Full locating surfaces inside and outside, numerous possibilities due to oblong holes and system bores. Full locating surfaces inside and outside, numerous possibilities due to oblong holes and system bores. Can be used as stop or support, continuous adjustment by turning.

Adjustable Angle bracket  Adapter plate Flanges(Including bolts) Angle-setting template
With an incredible range of applications: only as a stop, or for clamping angled parts.

As interface between 3D system and individual components, i.e. for welding / screwing on special customer elements. For pipe flanges can be quickly and precisely set out on the hole circle.

Flexible angle-setting template in application with the 1° precision scaling on both sides, continuous 0°-90°.



Locating angles




Product name Spec. Products Code Material Weight
ID LxWxH(mm) Blackening Nitriding & Blackening Chrome Plating (kg)
28-30001 Clamping and locating angle 75x50x75 SWK28-30001-B1 SWK28-30001-B3 SWK28-30001-B4 steel 1.0
28-30002 Clamping and locating angle 175x50x75 SWK28-30002-B1 SWK28-30002-B3 SWK28-30002-B4 steel 1.4
28-30003 Clamping and locating angle 175x50x175-KK SWK28-30003-B1 SWK28-30003-B3 SWK28-30003-B4 steel 2.4
28-30004 Clamping and locating angle 175x50x175-CC SWK28-30004-B1 SWK28-30004-B3 SWK28-30004-B4 steel 1.8
28-30005 Clamping and locating angle 175x50x175-KC SWK28-30005-B1 SWK28-30005-B3 SWK28-30005-B4 steel 2.1
28-30006 Clamping and locating angle 175x50x275 SWK28-30006-B1 SWK28-30006-B3 SWK28-30006-B4 steel 2.8
28-30007 Clamping and locating angle 175x50x200 SWK28-30007-B1 SWK28-30007-B3 SWK28-30007-B4 steel 2.7
28-30008 Angle bracket 150x75x75 SWK28-30008-B1 SWK28-30008-B3 SWK28-30008-B4 steel 2.9
28-30009 Clamping and locating angle 175x50x300 SWK28-30009-B1 SWK28-30009-B3 SWK28-30009-B4 steel 6.3
28-30010 Clamping and locating angle 225x50x200 SWK28-30010-B1 SWK28-30010-B3 SWK28-30010-B4 steel 5.8


Stops





Product name Spec. Products Code Material Weight
ID LxWxH(mm) Blackening Nitriding & Blackening Chrome Plating (kg)
28-31001 Stops 100x50x25 SWK28-31001-B1 SWK28-31001-B3 SWK28-31001-B4 steel 0.7
28-31002 Stops 150x50x25 SWK28-31002-B1 SWK28-31002-B3 SWK28-31002-B4 steel 0.8
28-31003 Stops 225x50x25 SWK28-31003-B1 SWK28-31003-B3 SWK28-31003-B4 steel 1.4
28-31004 Stops 300x50x25 SWK28-31004-B1 SWK28-31004-B3 SWK28-31004-B4 steel 1.9
28-31005 Stops 400x50x25 SWK28-31005-B1 SWK28-31005-B3 SWK28-31005-B4 steel 2.4
28-31006 Stops 500x75x25 SWK28-31006-B1 SWK28-31006-B3 SWK28-31006-B4 steel 5.8
28-31007 Stops 800x100x25 SWK28-31007-B1 SWK28-31007-B3 SWK28-31007-B4 steel 9.8
28-31008 Stops 1000x100x25 SWK28-31008-B1 SWK28-31008-B3 SWK28-31008-B4 steel 16.7
28-32001 L-Stops 175x200x25 SWK28-32001-B1 SWK28-32001-B3 SWK28-32001-B4 steel 2.0
28-32002 L-Stops 225x250x25 SWK28-32002-B1 SWK28-32002-B3 SWK28-32002-B4 steel 2.7
28-32003 L-Stops 225x350x25 SWK28-32003-B1 SWK28-32003-B3 SWK28-32003-B4 steel 3.2
28-32004 L-Stops 375x500x25 SWK28-32004-B1 SWK28-32004-B3 SWK28-32004-B4 steel 12.3
28-32005 T-Stops 250x200x25 SWK28-32005-B1 SWK28-32005-B3 SWK28-32005-B4 steel 2.5


V-block


Product name Spec. Products Code Material Weight
ID LxWxH(mm) Blackening Anodic oxidation (kg)
28-33001 V-block locations φ58/130°(steel) SWK28-33001-B1 steel 0.7
28-33101 V-block locations φ58/130°(AL) SWK28-33101-B0 Aluminum alloy 0.3
28-33002 V-block locations φ80/130°(steel) SWK28-33002-B1 steel 1.5
28-33102 V-block locations φ80/130°(AL) SWK28-33102-B0 Aluminum alloy 0.5
28-33003 V-block locations φ110/130°(steel) SWK28-33003-B1 steel 2.0
28-33103 V-block locations φ110/130°(AL) SWK28-33103-B0 Aluminum alloy 1.0


Others


Product name Spec. Products Code Material Weight
ID LxWxH(mm) Blackening Nitriding & Blackening (kg)
28-34001 Locating disk 50xφ75x25 SWK28-34001-B1 steel 0.7
28-34002 Locating disk 75xφ100x25 SWK28-34002-B1 steel 1.4
28-35001 Adjustable Angle bracket 200x200x75-L SWK28-35001-B1 SWK28-35001-B3 steel 7.0
28-35002 200x200x75-R SWK28-35002-B1 SWK28-35002-B3 steel 7.0
28-36001 Adapter plate 150x150x25 SWK28-36001-B1 SWK28-36001-B3 steel 3.3
28-37001
Flanges
(Including bolts)
350x250x25 SWK28-37001-B1 SWK28-37001-B3 steel 12.0
28-37002 550x350x25 SWK28-37002-B1 SWK28-37002-B3 steel 30.0
28-38001 Angle-setting template 250x150x12 SWK28-38001-B3 steel 3.0
