D28 ^{system Clamps}

>>> PARTS CATALOGUE			Versatile clamping systems,Ensure a clamp for your every need.
>	TABLE LEGS
>	SPACER BLOCKS
>	ANGLE & OTHER
>	LOCATING PARTS
●	CLAMPS
>	CLAMPING BOLTS
>	SPACER & OTHERS
>	TABLE ACCESSORIES
>	FIXTURING KITS


	90°Fixed Screw Clamp		90°Fixed Screw Clamp with Ratchet		90°Fixed Screw Clamp with Rotating handle		90°Flexible Screw Clamp with Plastic Handle




	180°Flexible Screw Clamp		180°Flexible Screw Clamp (with Ratchet)		180°Flexible Screw Clamp (with Rotating handle)		Clamping with thread bushing




	45°Flexible Screw Clamp		360°Flexible Screw Clamp (with Plastic Handle)		360°Flexible Screw Clamp (with External hexagonal handle)		Toggle Clamp

90° Clamps

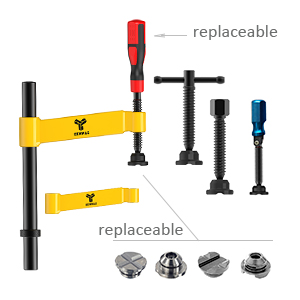

		The pressure plate can be replaced with other materials,Such as stainless steel, aluminum alloy,clamping bridge can also be used(ID: 81001 or 81101). "L" can be ordered as needed.		ID	Product name	Spec.(W x L mm)	Products Code	Surface	Material	Weight(kg)
				28-50001	90° Fixed Screw Clamp (with Plastic Handle)	150x320	SWK28-50001-B0	Painting/Blackening	steel	2.3
				28-50002	90° Fixed Screw Clamp (with Plastic Handle)	200x320	SWK28-50002-B0	Painting/Blackening	steel	2.4
				28-50101	90° Fixed Screw Clamp (with Quick-action Handle)	150x320	SWK28-50101-B0	Painting/Blackening	steel	2.3
				28-50102	90° Fixed Screw Clamp (with Quick-action Handle)	200x320	SWK28-50102-B0	Painting/Blackening	steel	2.4
				28-50201	90° Fixed Screw Clamp (with External hexagonal handle )	150x320	SWK28-50201-B0	Painting/Blackening	steel	2.3
				28-50202	90° Fixed Screw Clamp (with External hexagonal handle )	200x320	SWK28-50202-B0	Painting/Blackening	steel	2.3
				28-50301	90° Fixed Screw Clamp with Ratchet	150x320	SWK28-50003-B0	Painting/Blackening	steel
				28-50302	90° Fixed Screw Clamp with Ratchet	200x320	SWK28-50004-B0	Painting/Blackening	steel
				28-50401	90° Fixed Screw Clamp (with Rotating handle)	150x320	SWK28-50005-B0	Painting/Blackening	steel	2.4
				28-50402	90° Fixed Screw Clamp (with Rotating handle)	200x320	SWK28-50006-B0	Painting/Blackening	steel	2.4
				28-53001	90° Flexible Screw Clamp with Plastic Handle	220x220	SWK28-51001-B1	Blackening	steel	1.6

180° Clamps

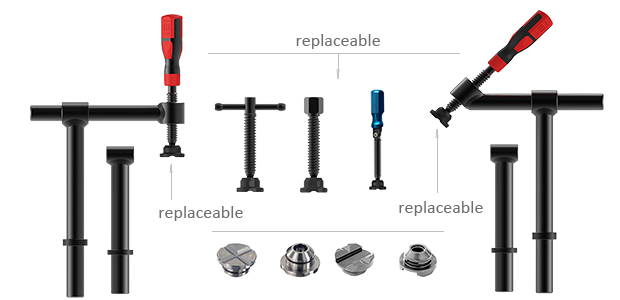

		The pressure plate can be replaced with other materials,Such as stainless steel, aluminum alloy,clamping bridge can also be used(ID: 81001 or 81101). "L" can be ordered as needed.		ID	Product name	Spec.(W x L mm)	Products Code	Surface	Material	Weight(kg)
				28-51001	180° Flexible Screw Clamp (with Plastic Handle)	220x220	SWK28-51001-B1	Blackening	steel	2.3
				28-51002	180° Flexible Screw Clamp (with Plastic Handle)	220x320	SWK28-51002-B1	Blackening	steel	2.4
				28-51101	180° Flexible Screw Clamp (with Quick-action Handle )	220x220	SWK28-51101-B1	Blackening	steel	2.3
				28-51102	180° Flexible Screw Clamp (with Quick-action Handle )	220x320	SWK28-51102-B1	Blackening	steel	2.4
				28-51201	180° Flexible Screw Clamp (with External hexagonal handle)	220x220	SWK28-51201-B1	Blackening	steel	2.3
				28-51202	180° Flexible Screw Clamp (with External hexagonal handle)	220x320	SWK28-51202-B1	Blackening	steel	2.3
				28-51301	180° Flexible Screw Clamp (with Ratchet)	220x220	SWK28-51003-B1	Blackening	steel
				28-51302	180° Flexible Screw Clamp (with Ratchet)	220x320	SWK28-51004-B1	Blackening	steel
				28-51401	180° Flexible Screw Clamp (with Rotating handle)	220x220	SWK28-51005-B1	Blackening	steel	2.3
				28-51402	180° Flexible Screw Clamp (with Rotating handle)	220x320	SWK28-51006-B1	Blackening	steel	2.4

45°/360° Clamps

		The pressure plate can be replaced with other materials,Such as stainless steel, aluminum alloy,clamping bridge can also be used(ID: 81001 or 81101). "L" can be ordered as needed.		ID	Product name	Spec.(W x L mm)	Products Code	Surface	Material	Weight(kg)
				28-52001	45° Flexible Screw Clamp (with Plastic Handle)	220x220	SWK28-52001-B1	Blackening	steel	2.3
				28-52002	45° Flexible Screw Clamp (with Plastic Handle)	220x320	SWK28-52002-B1	Blackening	steel	2.4
				28-52101	45° Flexible Screw Clamp (with Quick-action Handle)	220x220	SWK28-52101-B1	Blackening	steel	2.3
				28-52102	45° Flexible Screw Clamp (with Quick-action Handle)	220x320	SWK28-52102-B1	Blackening	steel	2.4
				28-52201	45° Flexible Screw Clamp (with External hexagonal handle)	220x220	SWK28-52201-B1	Blackening	steel	2.3
				28-52202	45° Flexible Screw Clamp (with External hexagonal handle)	220x320	SWK28-52202-B1	Blackening	steel	2.3
				28-52301	360°Flexible Screw Clamp (with Plastic Handle)	220x220	SWK28-52003-B1	Blackening	steel	2.3
				28-52302	360°Flexible Screw Clamp (with Plastic Handle)	220x320	SWK28-52004-B1	Blackening	steel	2.4
				28-52401	360°Flexible Screw Clamp (with External hexagonal handle)	220x220	SWK28-52203-B1	Blackening	steel	2.3
				28-52402	360°Flexible Screw Clamp (with External hexagonal handle)	220x320	SWK28-52204-B1	Blackening	steel	2.4

Quick Release

				ID	Product name	Spec.	Products Code	Surface	Material	Weight(kg)
				28-55001	Clamping with thread bushing （Plastic Rotating Handle）		SWK28-55002-B1	Blackening	steel
				28-55002	Clamping with thread bushing （External hexagonal handle）		SWK28-55003-B1	Blackening	steel

Toggle Clamps

				ID	Product name	Spec.	Products Code	Surface	Material	Weight(kg)
				28-54001	Toggle Clamp with round-base（Vertical ）	SW-Y12132	SWK28-54001-B1	Blackening	steel
				28-54002	Toggle Clamp with round-base（Horizontal）	SW-Y304-CM	SWK28-54002-B1	Blackening	steel
				28-54003	Toggle Clamp with round-base（Vertical）	SW-Y203FL	SWK28-54003-B1	Blackening	steel
				28-54101	Toggle Clamp with square-base（Vertical）	SW-F12265	SWK28-54101-B1	Blackening	steel
				28-54102	Toggle Clamp with Square-base（Horizontal）	SW-F304-EM	SWK28-54102-B1	Blackening	steel
				28-54103	Toggle Clamp with Square-base（Vertical）	SW-F203FL	SWK28-54103-B1	Blackening	steel
