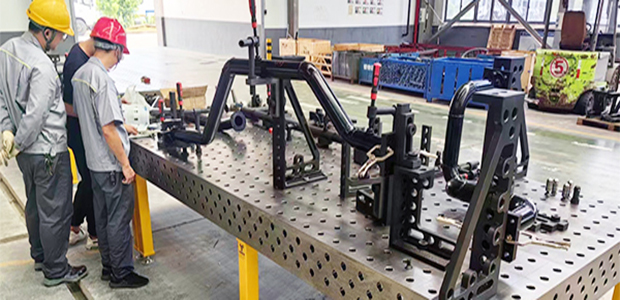

Multi-function 3D welding table
Modular clamp holding system
Modular clamp holding system
Hotline：400-004-8480
| System: | D28 | | | D22 | | | D16 | D28 system Angle ＆ others | ||||||||||
> | ● With the new design, stability was increased by up to 40 % depending on the loading case. ● With the integrated system bores in the size 50 grid on all faces and the extended face plate. ● Reinforcement in the corners with 90° system groove in kidney shape supports continuously variable use. ● Higher number of cross braces with bores,50 mm bore hole grid on all faces. |  | ||
> | ||||
● | ANGLE & OTHER | |||
> | ||||
> | ||||
> | ||||
> | ||||
> | ||||
> | ||||
 |
 |
 |
 |
||||
| Locating Angle | Corner module | Support and console | Pivot and tilt angle | ||||
| Continuous adjustment and locking,Three full clamping sides with system bores,With oblong holes for continuous adjustment. | Diagonal table expansion, flexible in application as V-block, support, stop and more. |
With oblong hole as well as grid bores both in X-Y direction. |
Continuously adjustable from 0° to 225° with precision scaling. |
||||
 |
|||||||
| Console | |||||||
| Five full clamping sides with system bores result in numerous application possibilities. |
|||||||
| Others |
| Product name | Spec. | Products Code | Material | Weight | ||||||
 |
 |
 |
ID | LxWxH(mm) | Blackening | Nitriding & Blackening | （kg） | |||
| 28-23001 | Corner module | 200x200x175 | SWK28-23001-B1 | SWK28-23001-B3 | high strength steel | 15.7 | ||||
| 28-24001 | Support and console | 200x200x100 | SWK28-24001-B1 | SWK28-24001-B3 | high strength steel | 13.0 | ||||
| 28-24002 | Support and console | 200x150x100 | SWK28-24002-B1 | SWK28-24002-B3 | high strength steel | 11.1 | ||||
 |
 |
28-24003 | Support and console | 200x100x100 | SWK28-24003-B1 | SWK28-24003-B3 | high strength steel | 9.3 | ||
| 28-70001 | Pivot and tilt angle | 475x100x100 | SWK28-70001-B1 | SWK28-70001-B3 | high strength steel | 49.3 | ||||
| 28-25001 | Console | 300x200x100-L | SWK28-25001-B1 | SWK28-25001-B3 | high strength steel | 23.1 | ||||
| 28-25002 | Console | 300x200x100-R | SWK28-25002-B1 | SWK28-25002-B3 | high strength steel | 23.1 | ||||
|
