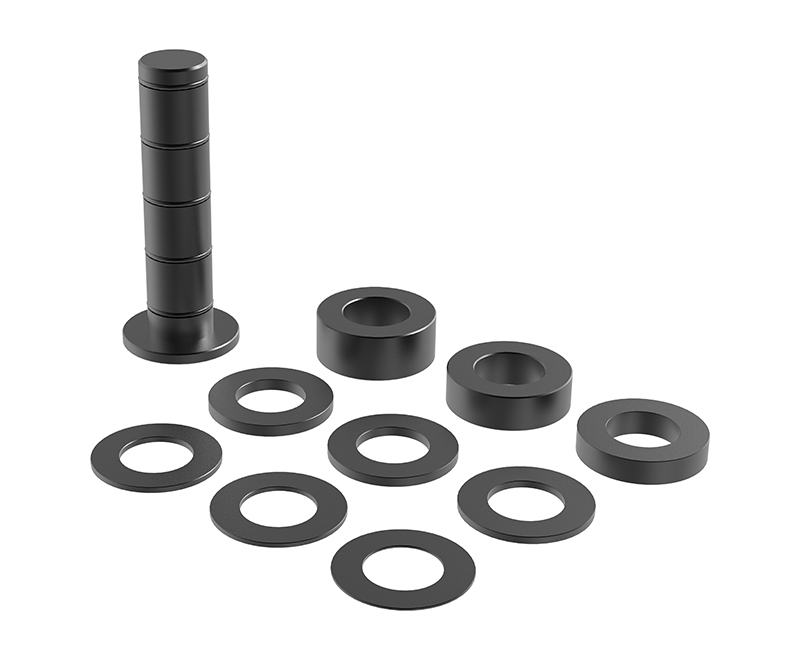

Description: D16-Spacer Set,9-pieces
● Material: High quality carbon steel
● For 5-50 mm height compensation on the respective supporting surface，Smallest increment 1mm.
● Support mandrel fitting each system bore 16.
● Self-locking with O-Ring.
● On the top of the support mandrel M8 thread for customer-specific elements available on request.

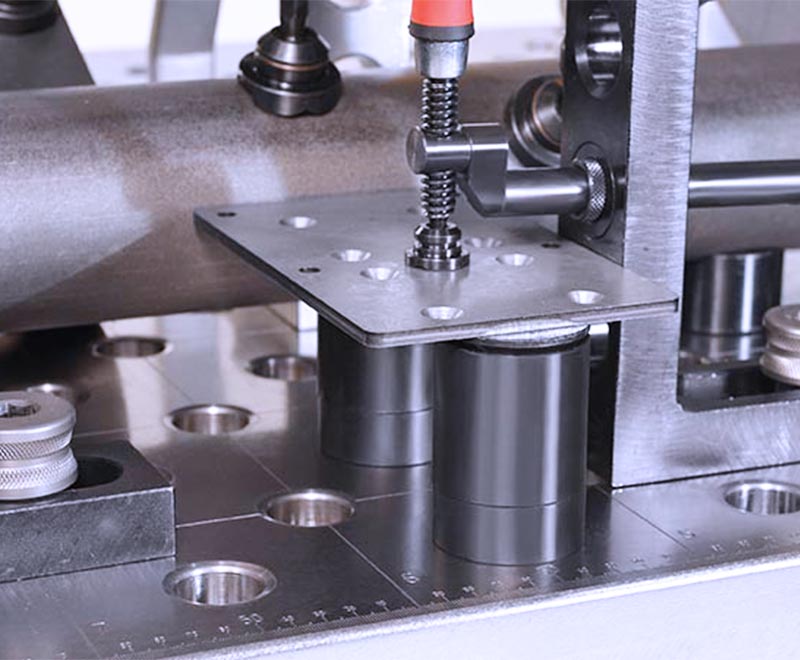

● Exact positioning of height via bearer sleeves in various lengths.
● 9-pieces: support mandrel, bearer sleeve L1, L2, L2.5 , L3, L4, L5, L10, L20，L75+5 .
● Ordering instruction:
|
Description |
Specifications |
Products Code |
Weight(kg) |
|
D16-Spacer Set,11-pieces |
1、2、2.5、3、4、5、10-2、20-2、L75+5 |
SWK16-40101-B1 |
|
