Spacer set D22 (11-pieces)

>D28>D16
  • Spacer set D22 (11-pieces)
  • Spacer set D22 (11-pieces)
Product Parameters

Description: D22-Spacer Set,11-pieces

● Material: High quality carbon steel

● For 5-100 mm height compensation on the respective supporting surface,Smallest increment 1mm.

● Support mandrel fitting each system bore 22.

● Self-locking with O-Ring.

● On the top of the support mandrel M12 thread for customer-specific elements available on request.

● Exact positioning of height via bearer sleeves in various lengths.

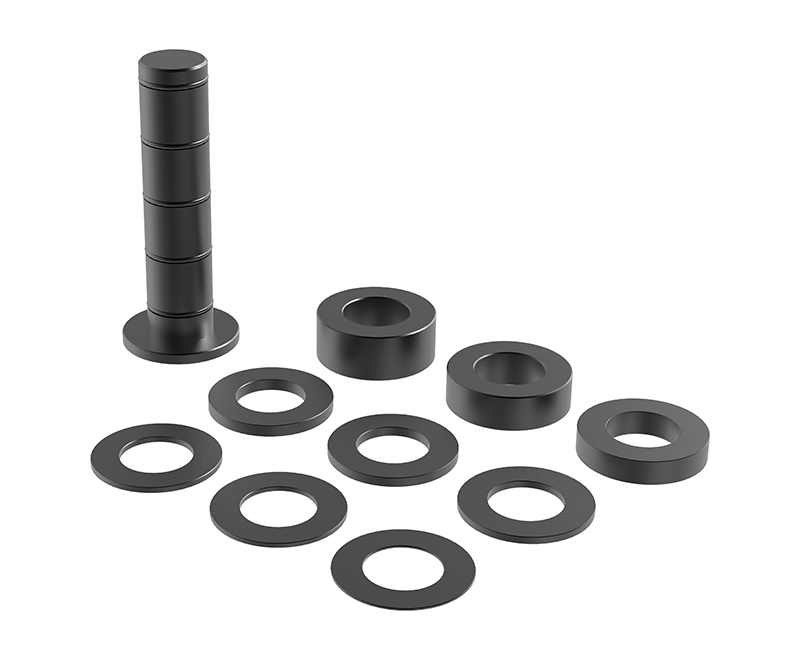

● 11-pieces: support mandrel, bearer sleeve L1, L2, L2.5 , L3, L4, L5, L10(2 pieces), L20(2 pieces),L120+5 .

● Ordering instruction:

Description

Specifications

Products Code

Weight(kg)

D22-Spacer Set,11-pieces

122.534510x220x2L75+5

SWK22-40101-B1



Related Spacer & Others Products

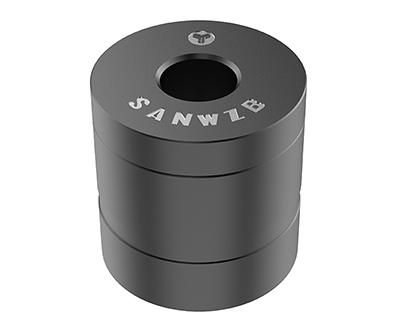

Spacer set with thread
Spacer set with thread

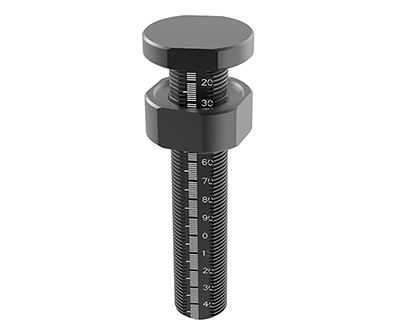

Adjustable spacer
Adjustable spacer

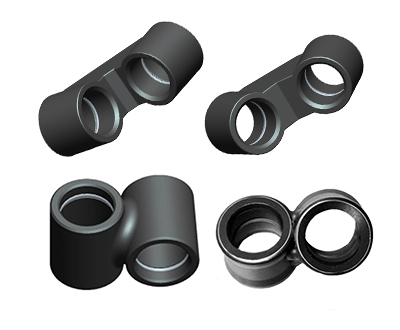

Angle bushing
