Angle bushing

  • Angle bushing
  • Angle bushing
  • Angle bushing
  • Angle bushing
  • Angle bushing
Product Parameters
■ Angle bushing 45° / 90°:
● Can be used as corner stop
 Axis distance 50 mm
■ Angle bushing 90° with precision scaling ( in 15° increments ):
 User-friendly 360° precision scaling
 Especially handy in combination with toggle clamps
 Can also be used in combination with short or normal spindle with threaded bushing
 Axis distance 50 mm

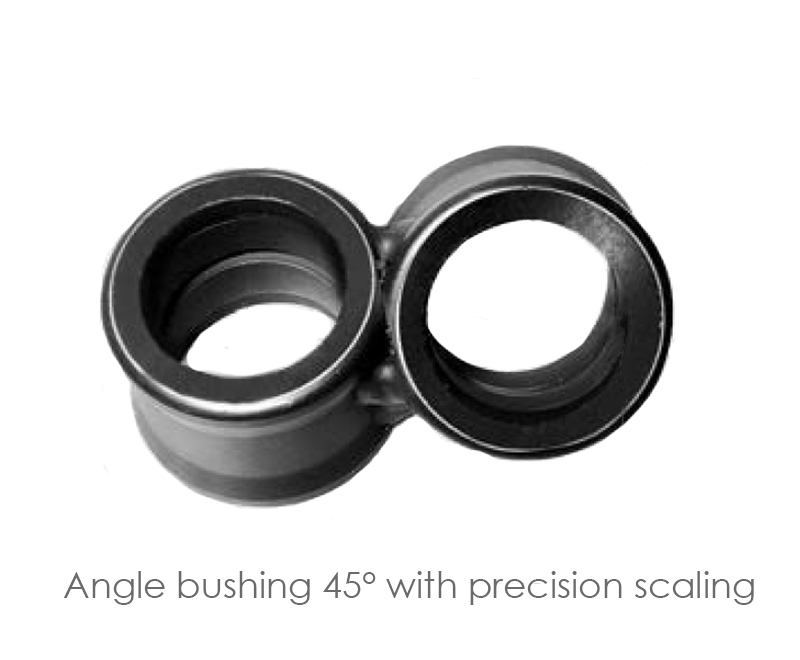

■ Angle bushing 45° with precision scaling ( in 15° increments ):
 User-friendly 360° precision scaling
 Especially handy in combination with toggle clamps
 Can also be used in combination with short or normal spindle with threaded bushing
 Axis distance 50 mm
 Ordering instruction:


Description

Specifications

Products Code

Weight(kg)

Description

Specifications

Products Code

Weight(kg)

D28-Angle bushing 90°

φ28x90°

SWK28-80001-B1



D28-Angle bushing 45°

φ28x45°

SWK28-80101-B1



D22-Angle bushing 90°

φ22x90°

SWK22-80001-B1



D22-Angle bushing 45°

φ22x45°

SWK22-80101-B1



D16-Angle bushing 90°

φ16x90°

SWK16-80001-B1



D16-Angle bushing 45°

φ16x45°

SWK16-80101-B1




Description

Specifications

Products Code

Weight(kg)

D28-Angle bushing 90°with precision scaling

φ28x90°

SWK28-80002-B1



D22-Angle bushing 90°with precision scaling

φ22x90°

SWK22-80002-B1



D16-Angle bushing 90°with precision scaling

φ16x90°

SWK16-80002-B1



Description

Specifications

Products Code

Weight(kg)

D28-Angle bushing 45°with precision scaling

φ28x45°

SWK28-80102-B1



D22-Angle bushing 45°with precision scaling

φ22x45°

SWK22-80102-B1



D16-Angle bushing 45°with precision scaling

φ16x45°

SWK16-80102-B1
