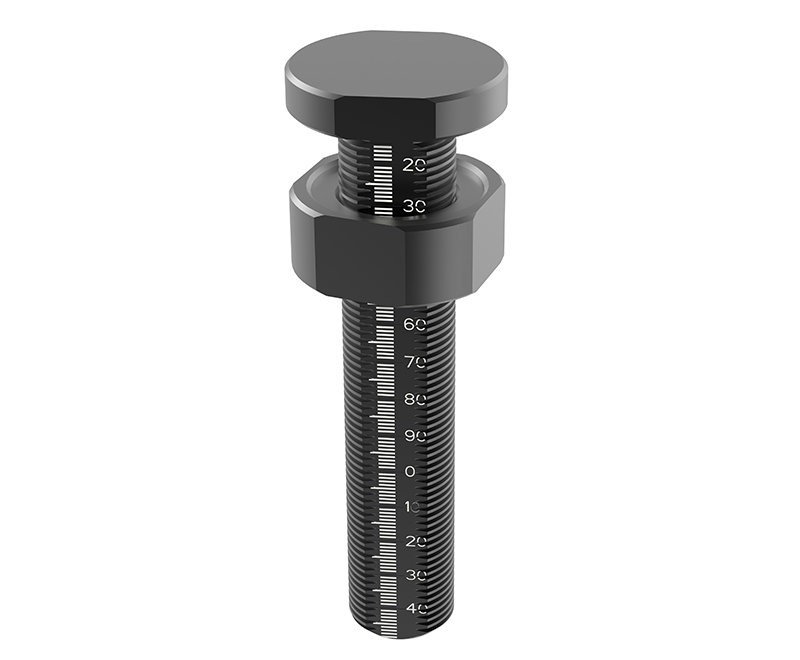

Description: Spacer set with thread
● Material: High quality carbon steel
● Height compensation continously
● As support surface on system components or directly on the table
● For D28 / D22 : Adjustment path 22-105 mm continuous
For D16 :Adjustment path 22-75 mm continuous
● With 0.1 mm precision scaling
● For D28 / D22 : Max. load capacity 500 kg
For D16 : Max. load capacity 200 kg
● Includes counter nut M28(For D28) / M22(For D22) / M16(For D16)
● Ordering instruction:
|
Specifications |
Products Code |
Weight(kg) |
For D28 |
φ50x (75-100) |
SWK28-40002-B1 |
|
For D22 |
φ50x (75-100 ) |
SWK22-40002-B1 |
|
For D16 |
φ30x (25-75) |
SWK16-40002-B1 |
|
