Location:Home » Products » FIXTURING ACCESSORIES » Spacer & Others » Adjustable spacer

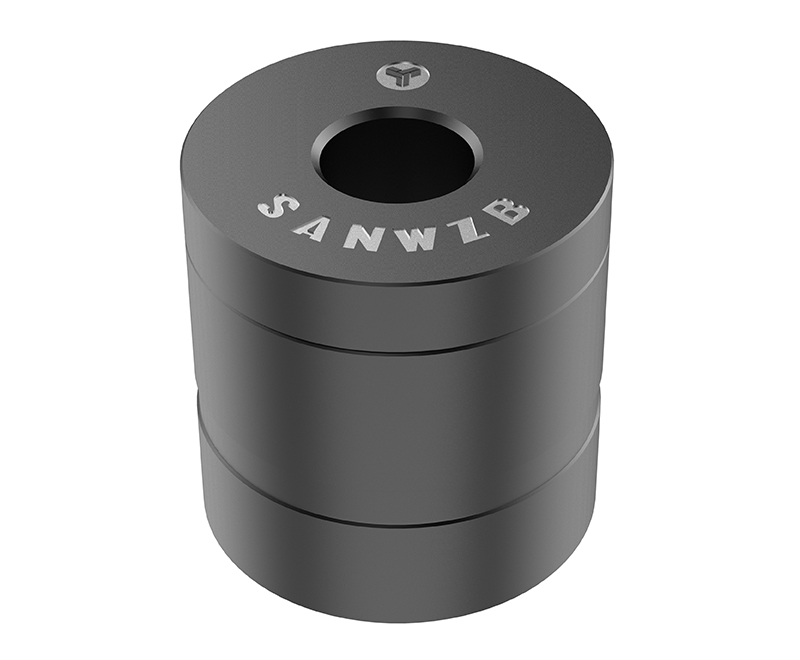

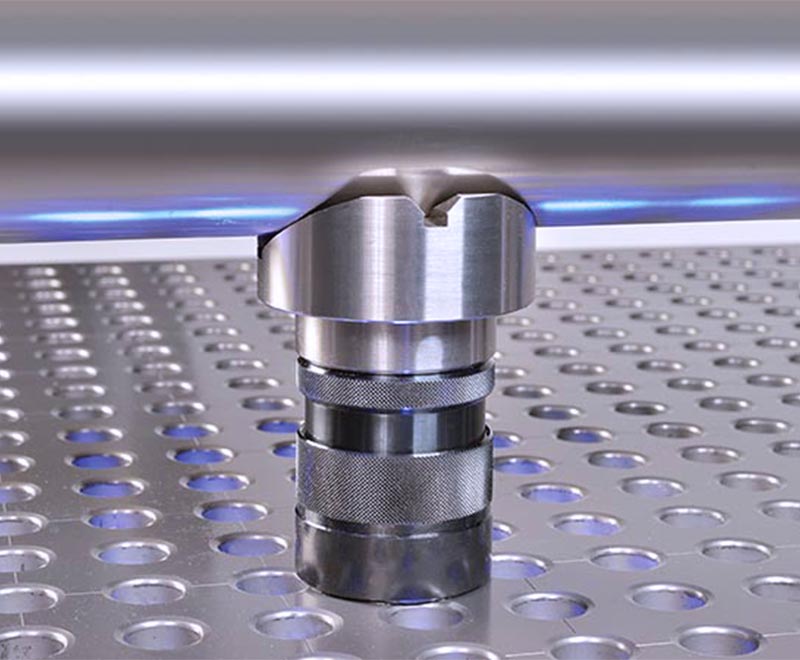

Adjustable spacer

  • Adjustable spacer
  • Adjustable spacer
Product Parameters
Description: Adjustable spacer
● Material: High quality carbon steel
● Support continuously adjustable:
   For D28 / D22 : from 75 to 95 mm
   For D16 : from 60 to 90 mm
● Especially well suited for V-block locations with arbour.
● For direct insertion in the adjustable spacer.
● Stops etc. with bolts can also be clamped in the system bore.
● Ordering instruction:



Specifications

Products Code

Weight(kg)

For D28

φ78x(75-100)

SWK28-40001-B1

2.3

For D22

φ78x(75-100)

SWK22-40001-B1

2.3

For D16

φ48x(60-90)

SWK16-40001-B1
