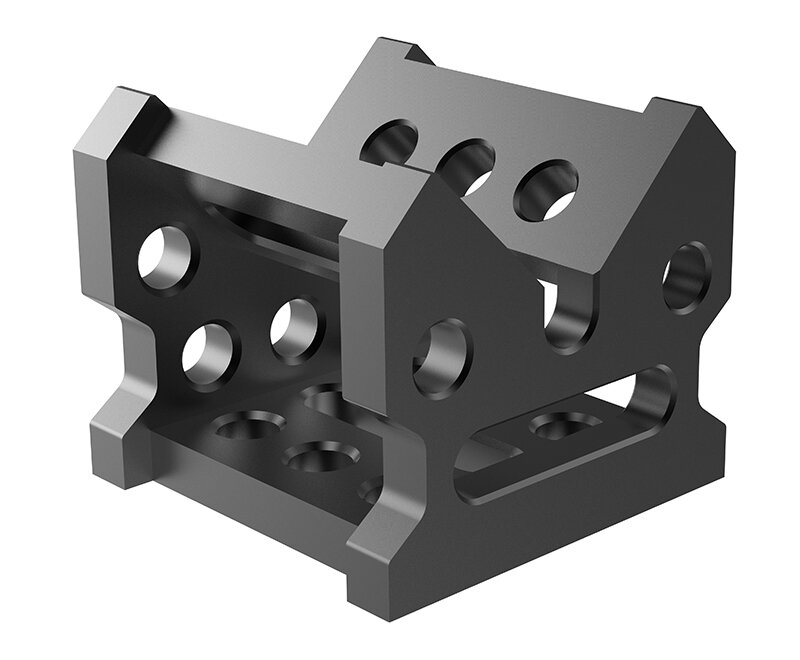

Corner Module

< >

Product Parameters

Description: Corner Module

● Material: Q355B

● Diagonal table expansion

● Flexible application as V-block, support, stop and more

● Long profiles and girders can be clamped even on smaller worktables – corner module positioned in the corner and extended with two angles.

Hole system	Specifications	Products Code	Surface	Weight（kg）
D28	200x200x175	SWK28-23001-B1	Blackening	15.7
D28	200x200x175	SWK28-23001-B2	Nitriding	15.7
D22	200x200x175	SWK22-23001-B1	Blackening	13.5
D22	200x200x175	SWK22-23001-B2	Nitriding	13.5
D16	100x100x75	SWK16-23001-B1	Blackening	4.7
D16	100x100x75	SWK16-23001-B2	Nitriding	4.7

Fitting accessories

Bolts

Countersunk Rapid Bolts

Countersunk Bolts

Bolts with handle

Brush

Ground Connector

Assembly lever
