Locating Angle (system D22)

>D28 >D16

< >

Product Parameters

Description: D22-Locating Angle

• Material: Cast Steel (Q355B) (The actual supply shall prevail)

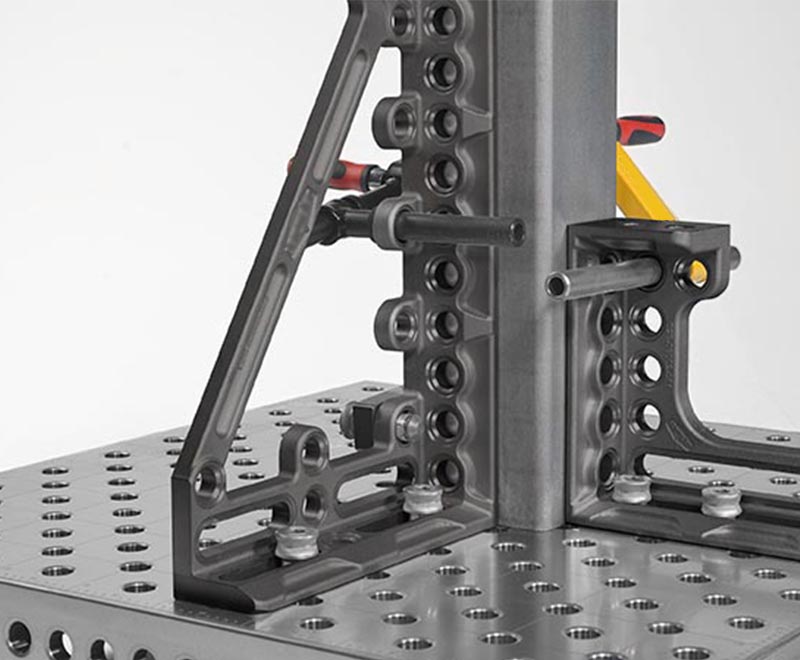

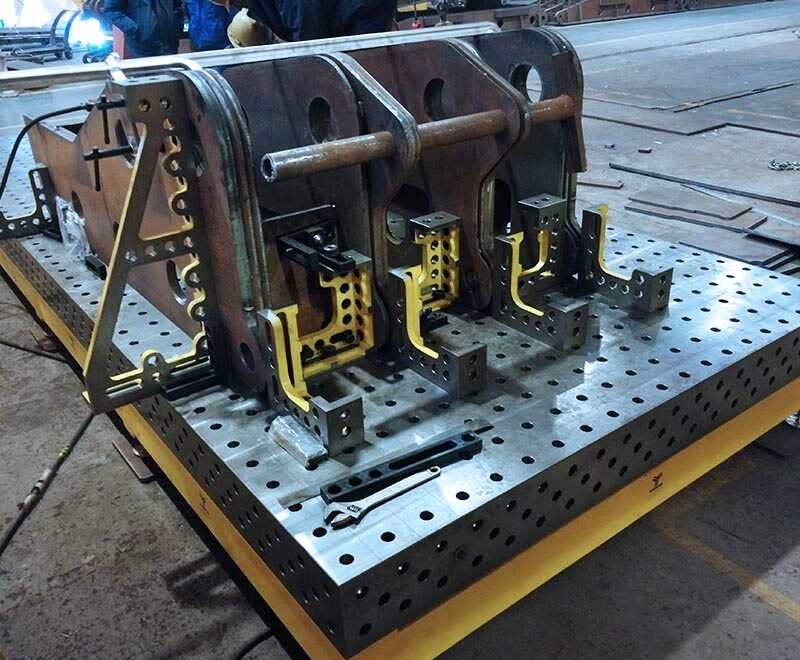

• Main application:For use e.g. as a tall stop or table extension,Locate or support relatively large workpieces,An extension of the four sides of the table.

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅22D10(+0.149/+0.065) ∥ Parallelism: 0.1/1000 (mm)

⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:h=18-18.5 (mm)

• With face plate for additional superstructures.

• With the help of the connection bolts, it is connected to the welding table or other components,Continuous adjustment and locking.

• Three full clamping sides with system bores,With oblong holes for continuous adjustment,Incl. precision scaling to adjust the stop dimensions.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Ordering in pairs is recommended.

Technical data

Description	Specifications	Blackening	Nitriding	Weight（kg）

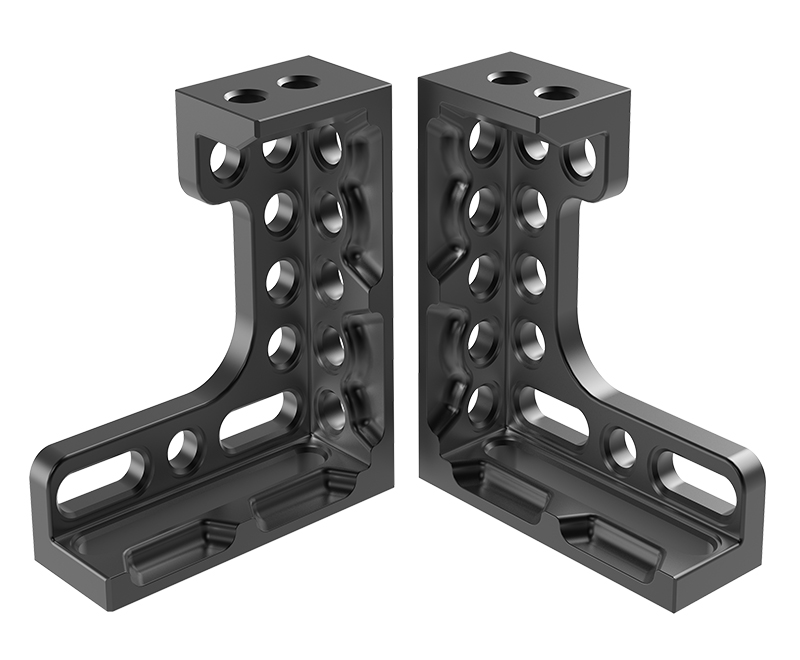

300 locating angle	275x100x300-L	SWK22-22101-B1	SWK22-22101-B2	11.6
300 locating angle	275x100x300-R	SWK22-22102-B1	SWK22-22102-B2	11.6

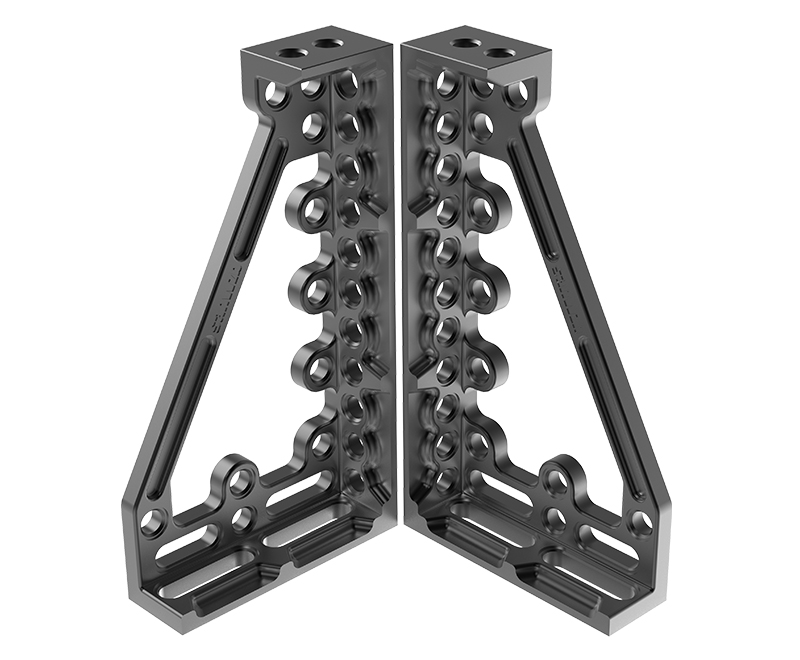

600 locating angle	325x100x600-L	SWK22-22103-B1	SWK22-22103-B2	20
600 locating angle	325x100x600-R	SWK22-22104-B1	SWK22-22104-B2	20

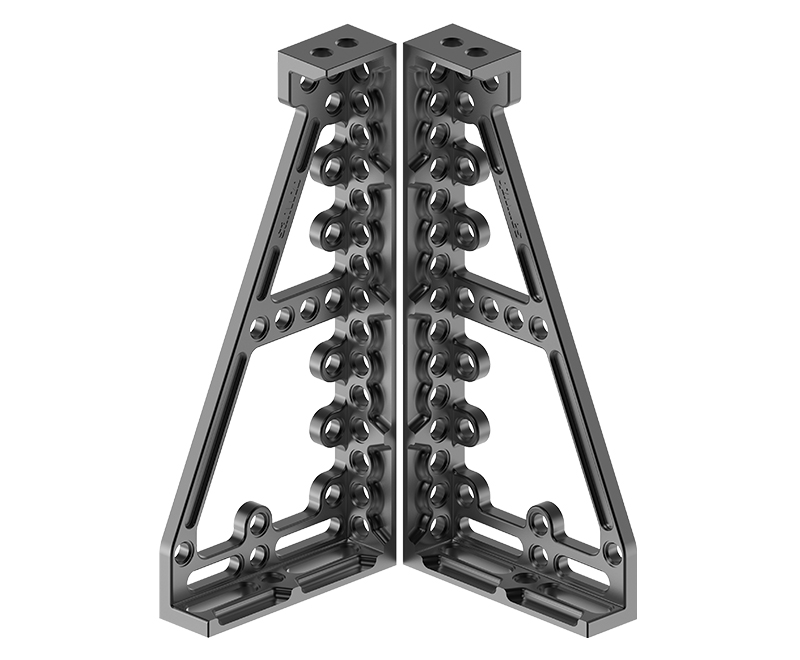

800 locating angle	375x100x800-L	SWK22-22105-B1	SWK22-22105-B2	28.8
800 locating angle	375x100x800-R	SWK22-22106-B1	SWK22-22106-B2	28.8
