Locating Angle (system D16)

>D28 >D22

< >

Product Parameters

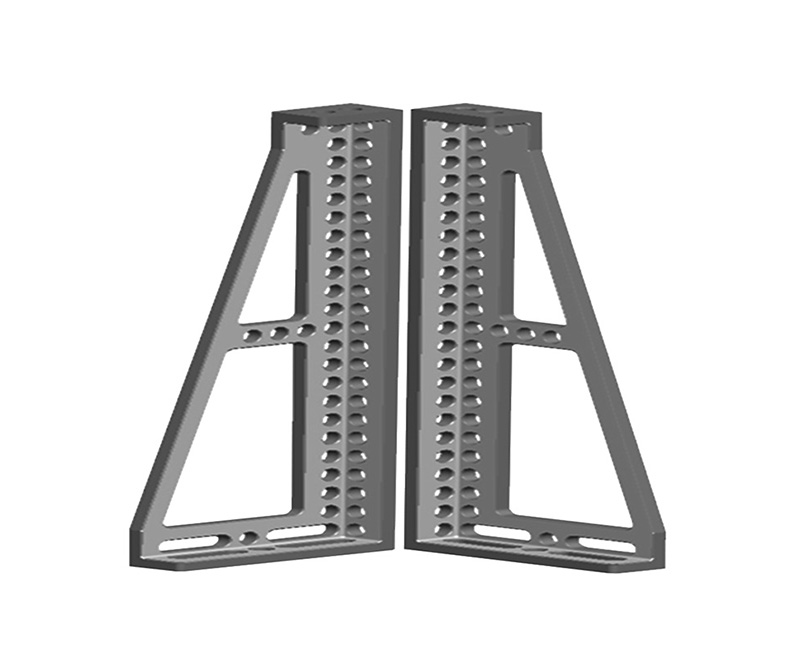

Description: D16-Locating Angle

• Material: Cast Steel (Q355B) (The actual supply shall prevail)

• Main application:For use e.g. as a tall stop or table extension,Locate or support relatively large workpieces,An extension of the four sides of the table.

• Tolerance parameters

□ L^±0.1 x W^±0.1 x H^±0.1(mm) ○ Hole: ∅16D10(+0.120/+0.050) ∥ Parallelism: 0.1/1000 (mm)

⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:h=12-12.5 (mm)

• With face plate for additional superstructures.

• With the help of the connection bolts, it is connected to the welding table or other components,Continuous adjustment and locking.

• Three full clamping sides with system bores,With oblong holes for continuous adjustment,Incl. precision scaling to adjust the stop dimensions.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Ordering in pairs is recommended.

Technical data

Description	Specifications	Blackening	Nitriding	Weight（kg）

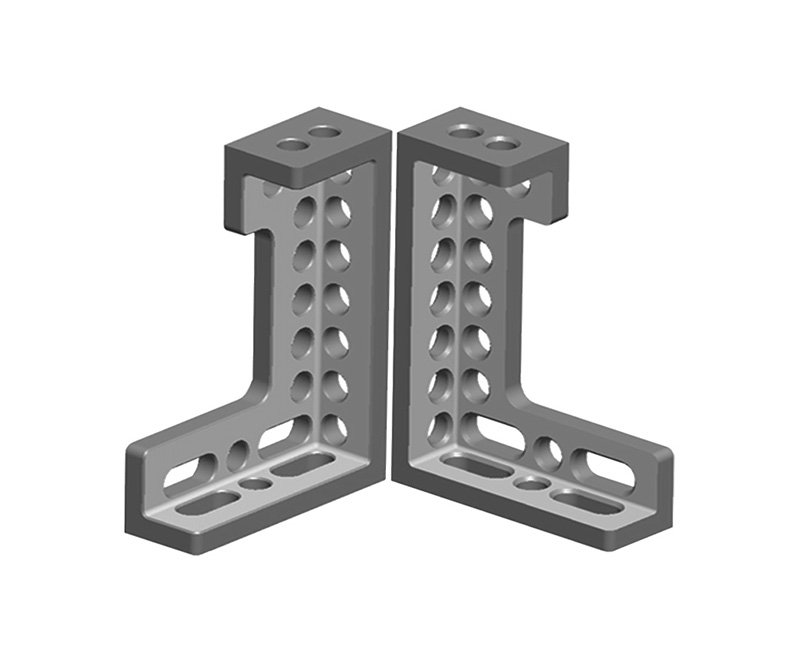

200 locating angle	150x50x200-L	SWK16-22101-B1	SWK16-22101-B2	7.4
200 locating angle	150x50x200-L	SWK16-22102-B1	SWK16-22102-B2	7.4
400 locating angle	200x50x400-L	SWK16-22103-B1	SWK16-22103-B2	18.1
400 locating angle	200x50x400-R	SWK16-22104-B1	SWK16-22104-B2	18.1

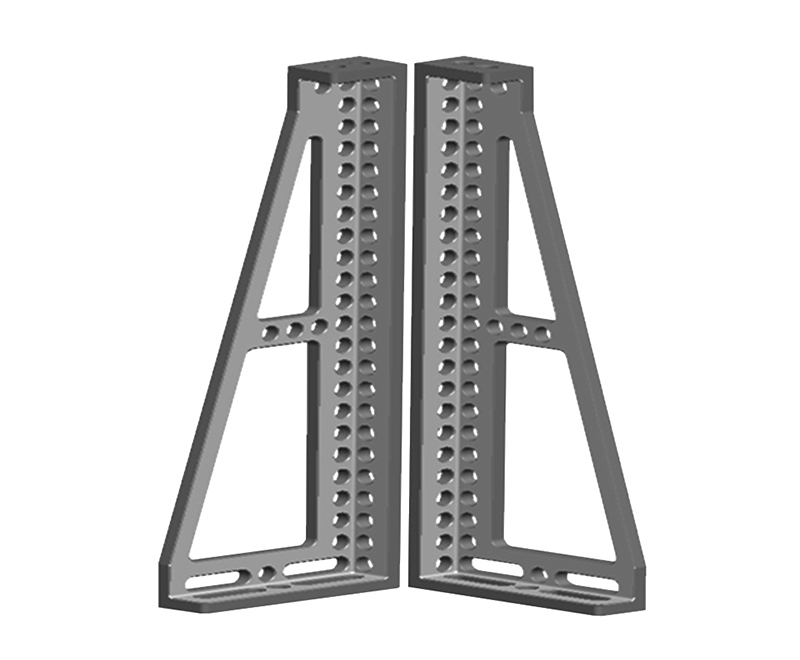

600 locating angle	200x50x600-L	SWK16-22105-B1	SWK16-22105-B2	27.2
600 locating angle	200x50x600-R	SWK16-22106-B1	SWK16-22106-B2	27.2
