Bolts with handle

  • Bolts with handle
  • Bolts with handle
Product Parameters
○ Material:Steel
○ For quick clamping of the system components.
○ Connecting element for all system components on tables, perforated plates etc. or for special fixtures.
○ Defined adjustment position and optimum implementation to ensure constant maximum clamping force.
○ High closing and shear force.
○ Used without additional tools.

Technical data



Description

Spec.

Products Code

Weightkg

Clamping range

Tensile force in kN

Shear force in kN

Tightening torque in Nm

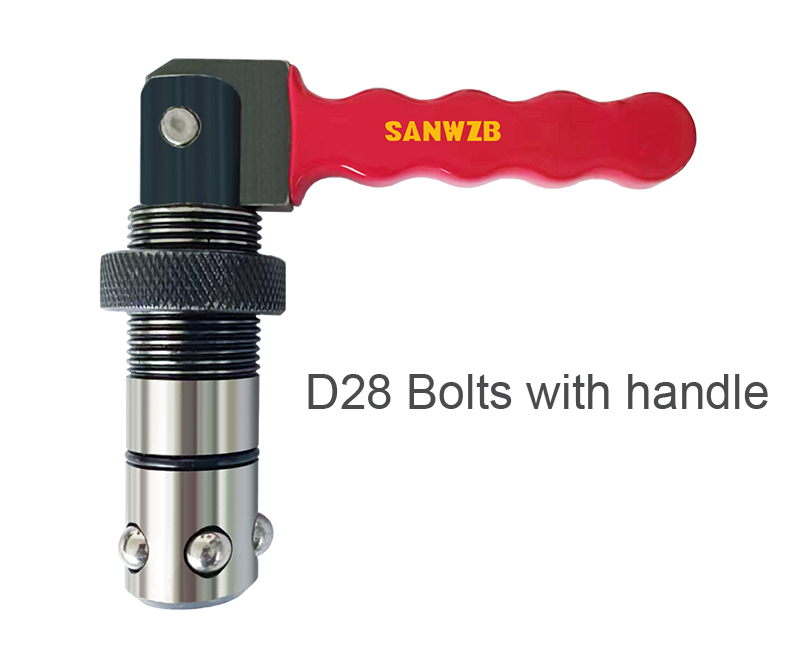

D28-Bolts

φ28x50

SWK28-60301-B0

0.80

L1:45-50(mm)




D22-Bolts

φ22x36

SWK22-60301-B0


L1:33-36(mm)







D16-Bolts

φ16x24

SWK16-60301-B0


L1:21-24(mm)




φ16x36

SWK16-60302-B0


L2:33-36(mm)
