Bolts

  • Bolts
  • Bolts
  • Bolts
  • Bolts

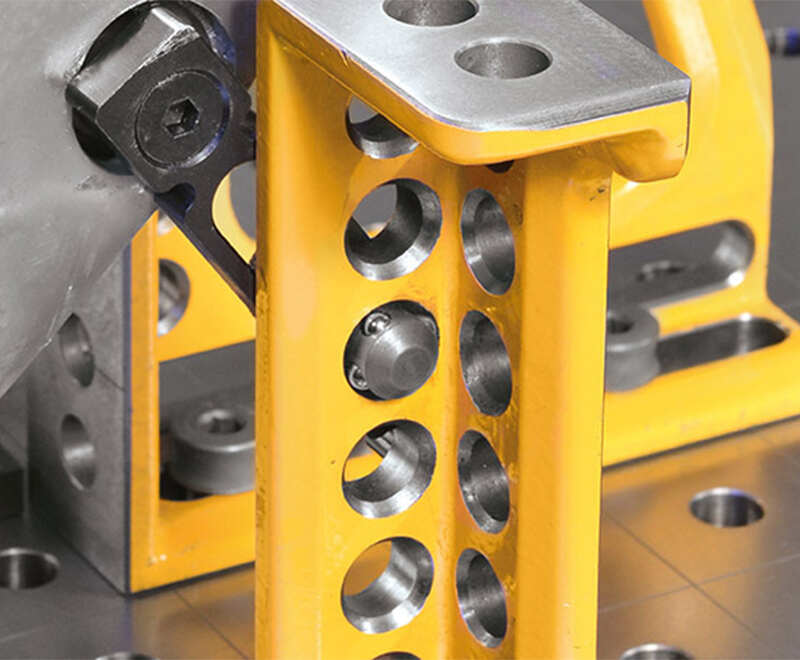

Product Parameters
○ Material:Steel
○ Connecting element for all system components on tables, perforated plates etc. or for special fixtures.
○ Very fast connection with large clamping stroke.
○ Very high clamping force due to planetary gear effect and by avoiding a double-start thread
○ Force-fitting and form-fitting, O-ring for self-centring connection .
○ High-quality hardened steel, maximum precision thanks to ground design.
○ O-rings prevent simultaneous rotation while tightening and clean the system bore at the same time.
○ The short version connects 2 system components together or 1 system component on the welding table.
○ The specified loads must not be exceeded when using the clamping bolts. The discharge of welding voltages, unfavourable leverage and impacts have to be avoided.

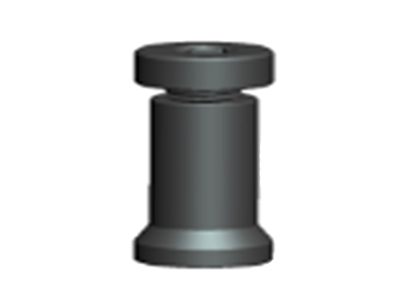

● Schematic diagram of locking pin lock length
 (Short locking pin:L1, Product ID  60001,
   Long locking pin:L2, Product ID 60002)

Technical data



Description

Spec.

Products Code

Weightkg

Clamping range

Tensile force in kN

Shear force in kN

Tightening torque in Nm

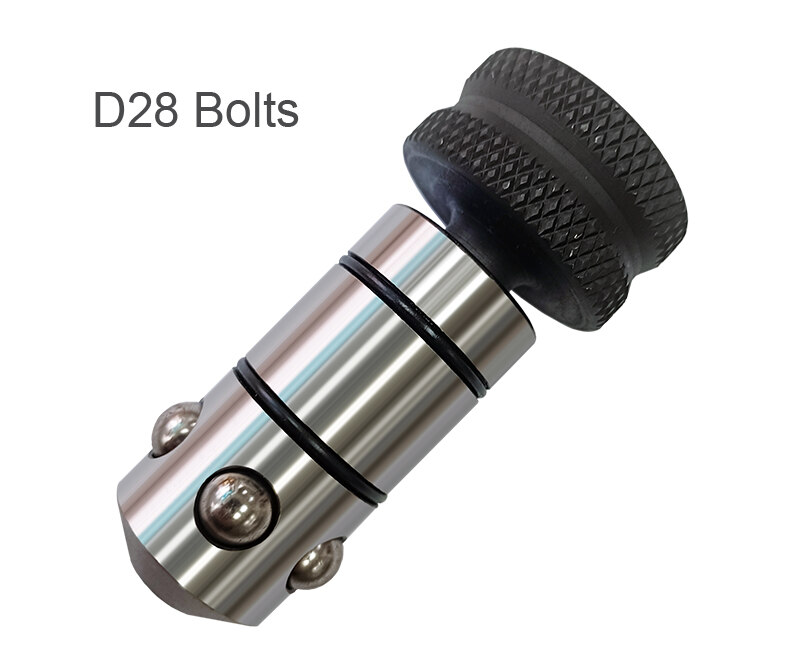

D28-Bolts

φ28x50

SWK28-60001-B0

0.40

L1:48-52(mm)

25

200

70

φ28x75

SWK28-60002-B0

0.50

L2:73-77(mm)

25

200

70

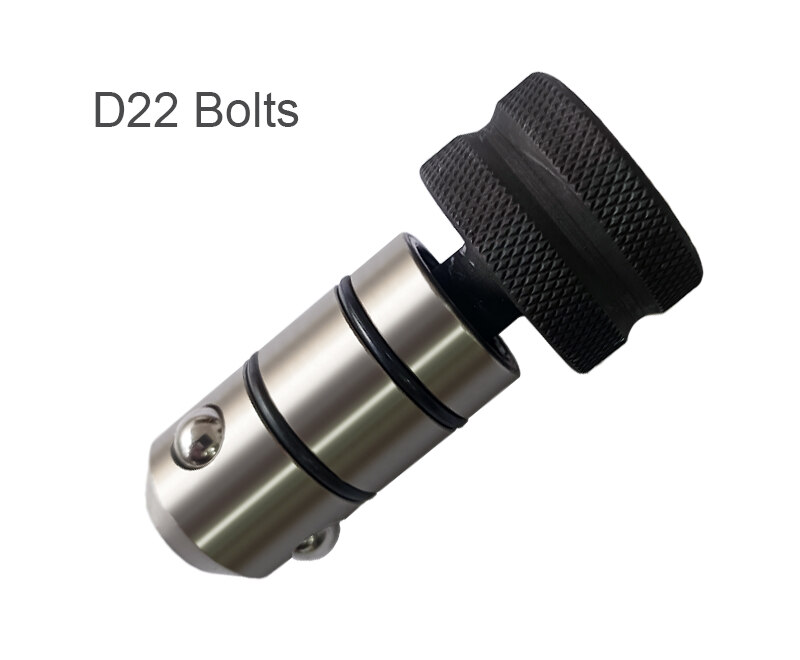

D22-Bolts

φ22x36

SWK22-60001-B0

0.35

L1:34-38(mm)







φ22x54

SWK22-60002-B0

0.40

L2:52-57(mm)







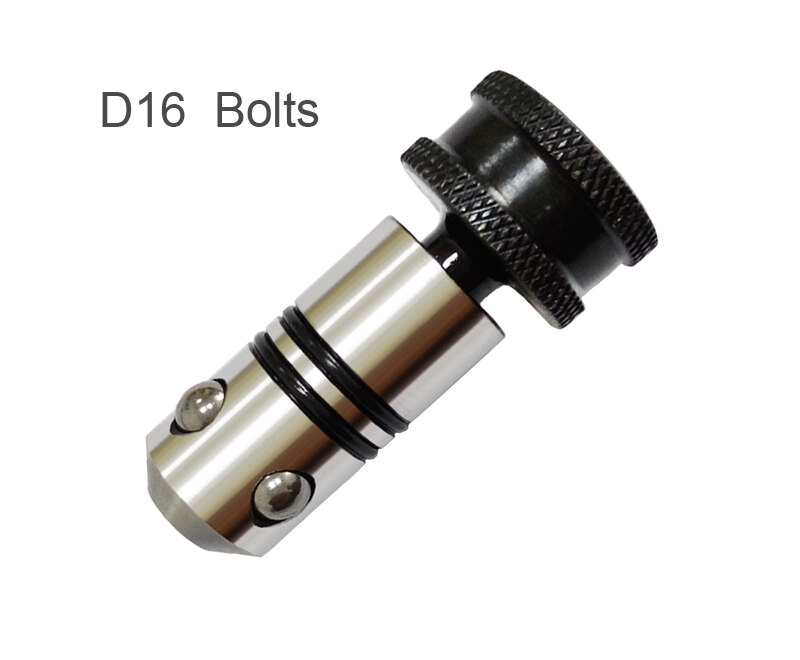

D16-Bolts

φ16x24

SWK16-60001-B0

0.08

L1:23-25(mm)

10

50

20

φ16x36

SWK16-60002-B0

0.10

L2:35-37(mm)

10

50

20


Related Clamping Bolts Products

Connection Bolts B
Connection Bolts B
Connection Bolts A
Connection Bolts A
Magnetic Bolts
Magnetic Bolts
Positioning Bolts
Positioning Bolts
Bolts with handle
Bolts with handle
Countersunk Bolts
Countersunk Bolts
Countersunk Rapid Bolts
Countersunk Rapid Bolts
