Countersunk Rapid Bolts

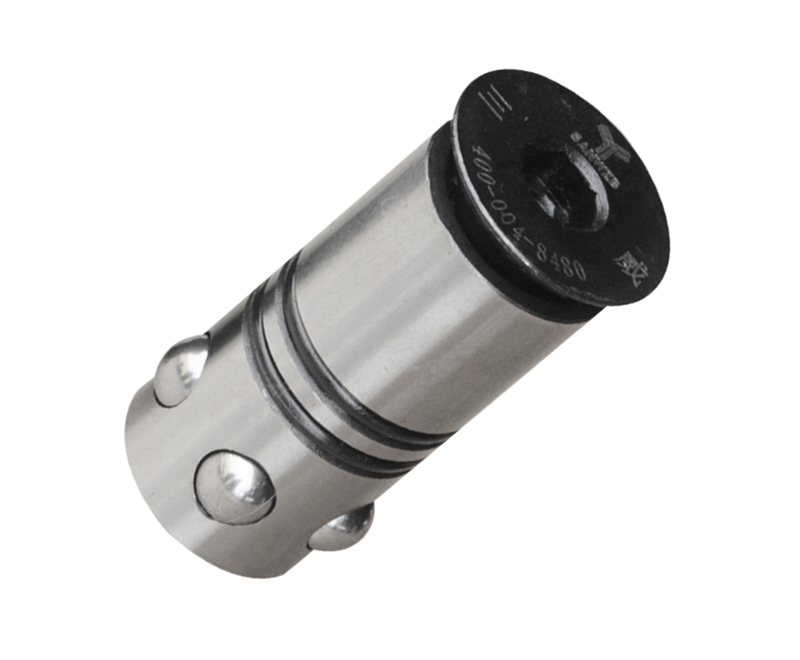

  • Countersunk Rapid Bolts
  • Countersunk Rapid Bolts
Product Parameters
○ Material:Steel
○ Countersunk bolt head (no interfering edges).
○ Only for connecting bores (not oblong holes).
○ Countersunk bolts may only be used in bores and not in oblong holes.

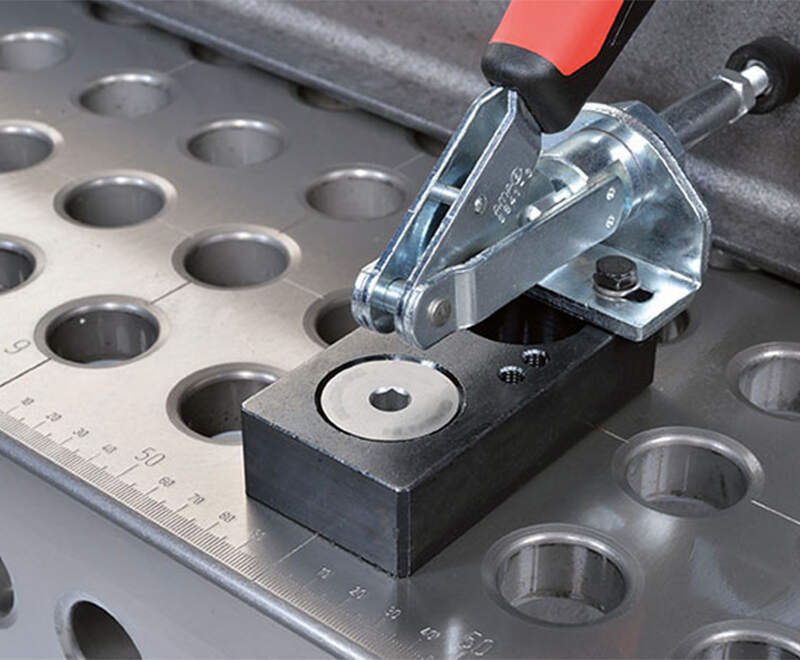

○ The short version connects 2 system components together or 1 system component on the welding table.
○ The specified loads must not be exceeded when using the clamping bolts. The discharge of welding voltages, unfavourable leverage and impacts have to be avoided.

Technical data



Description

Spec.

Products Code

Weightkg

Clamping range

Tensile force in kN

Shear force in kN

Tightening torque in Nm

D28-Bolts

φ28x50

SWK28-60101-B0

0.40

L1:41-47(mm)

10

200

50

φ28x75

SWK28-60102-B0

0.50

L2:66-72(mm)

10

200

50

D22-Bolts

φ22x36

SWK22-60101-B0


L1:34-36(mm)







φ22x54

SWK22-60102-B0


L2:52-54(mm)







D16-Bolts

φ16x24

SWK16-60101-B0

0.04

L1:22-24(mm)

3

50

10

φ16x36

SWK16-60102-B0

0.07

L2:34-36(mm)

3

50

10
