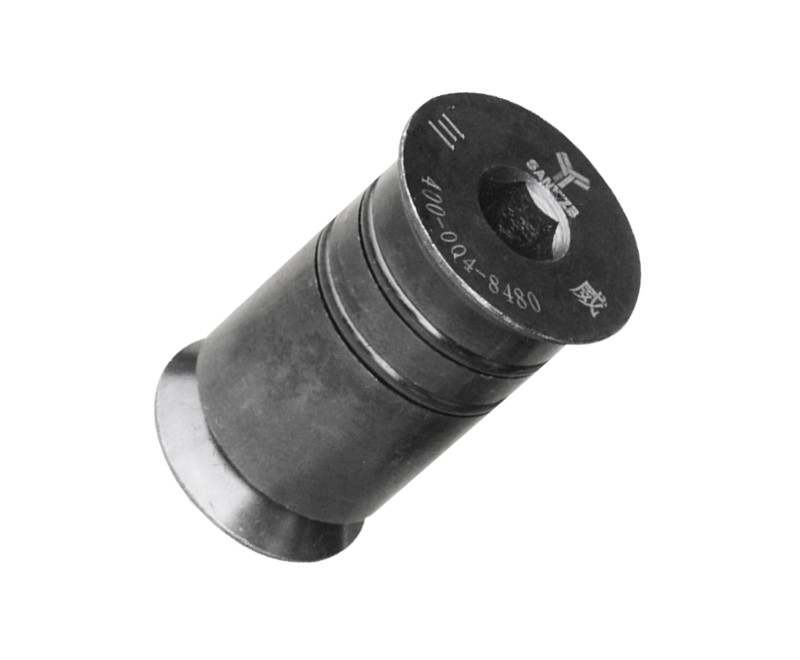

Countersunk Bolts

  • Countersunk Bolts
  • Countersunk Bolts
Product Parameters
○ Material:Steel
○ Suitable for system bores.
○ Connects 2 system components together or 1 system component on the welding table.
○ For use as long-term connection.
○ With self-centring countersunk head on both sides.

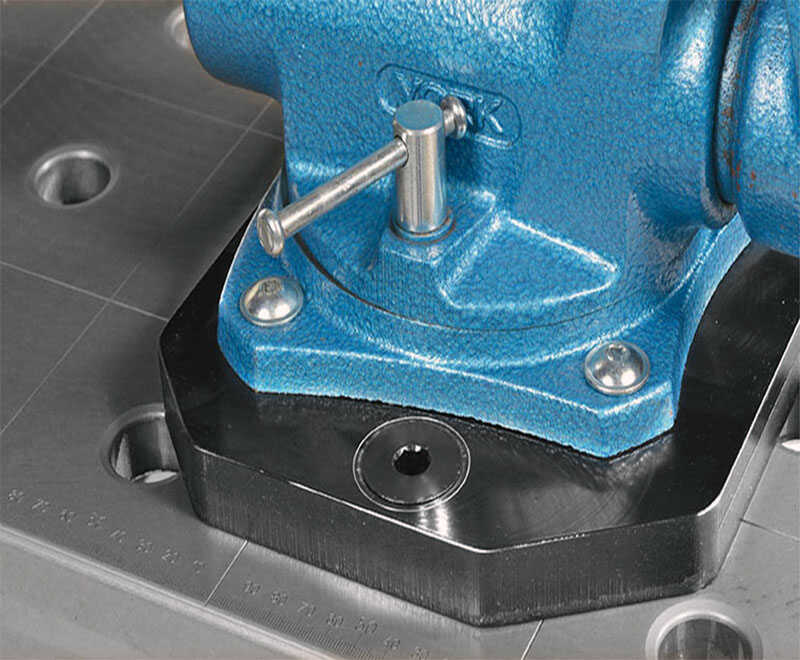

○ Ideal for connecting welding tables with U-shaped spacer blocks.
● Schematic diagram of locking pin lock length
 (Short locking pin:L1, Product ID  60201,
   Long locking pin:L2, Product ID 60202)

Technical data



Description

Spec.

Products Code

Weightkg

Clamping range

Tensile force in kN

Shear force in kN

Tightening torque in Nm

D28-Bolts

φ28x50

SWK28-60201-B0

0.18

L1:47-50(mm)




φ28x75

SWK28-60202-B0

0.23

L2:73-75(mm)




D22-Bolts

φ22x36

SWK22-60201-B0

0.1

L1:34-36(mm)







φ22x54

SWK22-60202-B0

0.15

L2:52-54(mm)







D16-Bolts

φ16x24

SWK16-60201-B0

0.04

L1:22-24(mm)




φ16x36

SWK16-60202-B0

0.07

L2:34-36(mm)
