Fixturing Kits (system D28)

>D22>D16
  • Fixturing Kits (system D28)
  • Fixturing Kits (system D28)
  • Fixturing Kits (system D28)
  • Fixturing Kits (system D28)
Product Parameters
◆ A complete welding table system, including welding table and clamp accessories,
easy to use, we recommend 4 Fixturing Kits.
◆ Suitable for standard grid 100x100 (mm) welding table and Diagonal grid 100x100 (mm) welding table.
◆ The surface requirements of the fixture accessories listed in the list are recommended by default.
 If there are other requirements, you can choose the corresponding product code in the Product Catalog.
◆ In order to facilitate the selection, we have listed the commonly used welding table sizes and their surface treatment. If the welding tables need other sizes and specifications, you can contact us offline.(Refer to the welding table selection below on this page)
◆ For easy selection, a support legs list is available below this page.If you need other support types, please contact us offline.






﹥﹥﹥Download the Fixturing Kits List
 Product details:

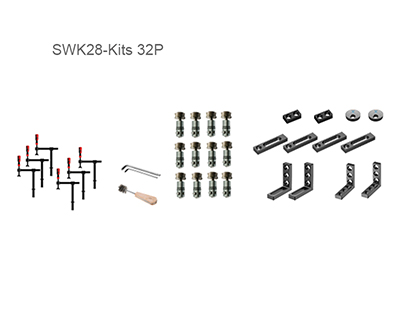

Kit code:SWK28-Kits 32P

No.

Description

Spec.

Products Code

Quty.

Remarks



1

180°Flexible Screw Clamp

220x220

SWK28-51001-B1

6

Plastic Handle

2

Bolts

D28x50

SWK28-60001-B0

12



3

Stops

225x50x25

SWK28-31003-B1

4



4

Stops

100x50x25

SWK28-31001-B1

2



5

Clamping and locating angle

175x50x175-KC

SWK28-30005-B1

2



6

Clamping and locating angle

175x50x175-KK

SWK28-30003-B1

2



7

Locating disk

50xφ75x25

SWK28-34001-B1

2



8

Ball end hex wrench

14#10#

SWK28-90301-B0

1



9

Brush

φ30x150

SWK28-90401-B0

1



10

summation

32

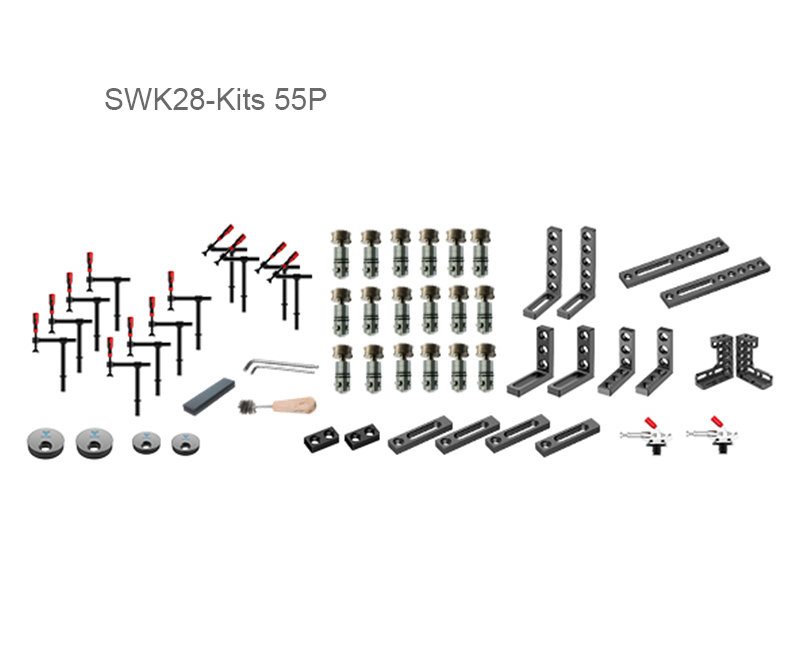

Kit code:SWK28-Kits 55P

No.

Description

Spec.

Products Code

Quty.

Remarks



1

180°Flexible Screw Clamp

220x220

SWK28-51001-B1

6

Plastic Handle

2

180°Flexible Screw Clamp

220x320

SWK28-51002-B1

2

Plastic Handle

3

45°Flexible Screw Clamp

220x220

SWK28-52001-B1

4

Plastic Handle

4

Bolts

D28x50

SWK28-60001-B0

18



5

Stops

225x50x25

SWK28-31003-B1

4



6

Stops

100x50x25

SWK28-31001-B1

2



7

Stops

500x75x25

SWK28-31006-B1

2



8

Clamping and locating angle

175x50x175-KC

SWK28-30005-B1

2



9

Clamping and locating angle

175x50x175-KK

SWK28-30003-B1

2



10

Clamping and locating angle

175x50x275

SWK28-30006-B1

2



11

Locating disk

50xφ75x25

SWK28-34001-B1

2



12

Locating disk

75xφ100x25

SWK28-34002-B1

2



13

300 locating angle

275x100x300-L

SWK28-22101-B1

1



14

300 locating angle

275x100x300-R

SWK28-22102-B1

1



15

Toggle Clamp with round-base

SW-Y304-CM

SWK28-54002-B1

2

  Horizontal

16

Bench Stone

180x60x30

SWK28-90101-B0

1



17

Ball end hex wrench

14#10#

SWK28-90301-B0

1



18

Brush

φ30x150

SWK28-90401-B0

1



19

summation

55

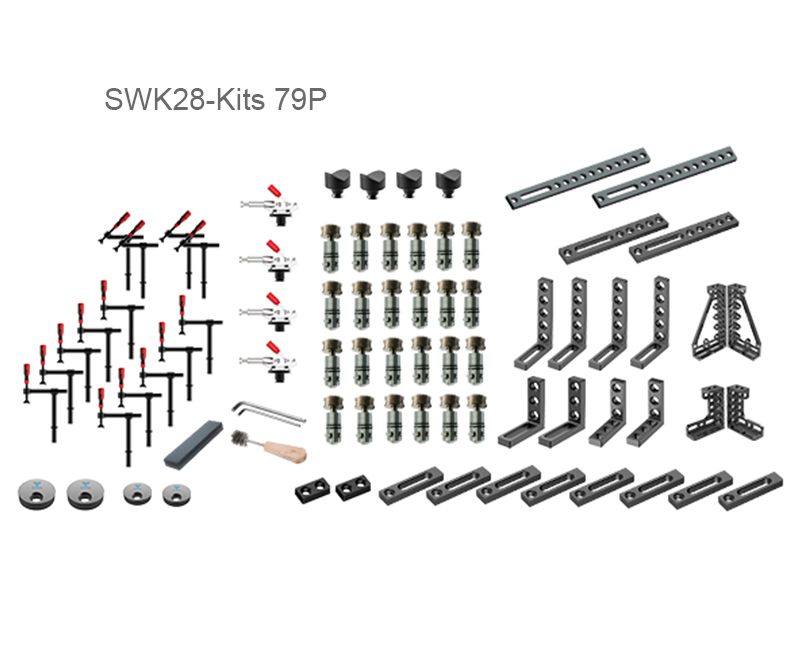

Kit code:SWK28-Kits 79P

No.

Description

Spec.

Products Code

Quty.

Remarks



1

180°Flexible Screw Clamp

220x220

SWK28-51001-B1

6

Plastic Handle

2

180°Flexible Screw Clamp

220x320

SWK28-51002-B1

4

Plastic Handle

3

45°Flexible Screw Clamp

220x220

SWK28-52001-B1

4

Plastic Handle

4

Bolts

D28x50

SWK28-60001-B0

24



5

Stops

225x50x25

SWK28-31003-B1

8



6

Stops

100x50x25

SWK28-31001-B1

2



7

Stops

500x75x25

SWK28-31006-B1

2



8

Stops

800x100x25

SWK28-31007-B1

2



9

Clamping and locating angle

175x50x175-KC

SWK28-30005-B1

2



10

Clamping and locating angle

175x50x175-KK

SWK28-30003-B1

2



11

Clamping and locating angle

175x50x275

SWK28-30006-B1

4



12

Locating disk

50xφ75x25

SWK28-34001-B1

2



13

Locating disk

75xφ100x25

SWK28-34002-B1

2



14

300 locating angle

275x100x300-L

SWK28-22101-B1

1



15

300 locating angle

275x100x300-R

SWK28-22102-B1

1



16

600 locating angle

325x100x600-L

SWK28-22103-B1

1



17

600 locating angle

325x100x600-R

SWK28-22104-B1

1



18

V-block locations

φ58/130°steel

SWK28-33001-B1

4



19

Toggle Clamp with round-base

SW-Y304-CM

SWK28-54002-B1

4

  Horizontal

20

Bench Stone

180x60x30

SWK28-90101-B0

1



21

Ball end hex wrench

14#10#

SWK28-90301-B0

1



22

Brush

φ30x150

SWK28-90401-B0

1



23

summation

79




Kit code:SWK28-Kits 105P

No.

Description

Spec.

Products Code

Quty.

Remarks



1

180°Flexible Screw Clamp

220x220

SWK28-51001-B1

6

Plastic Handle

2

180°Flexible Screw Clamp

220x320

SWK28-51002-B1

6

Plastic Handle

3

45°Flexible Screw Clamp

220x220

SWK28-52001-B1

8

Plastic Handle

4

Bolts

D28x50

SWK28-60001-B0

32



5

Stops

225x50x25

SWK28-31003-B1

8



6

Stops

100x50x25

SWK28-31001-B1

2



7

Stops

500x75x25

SWK28-31006-B1

2



8

Stops

800x100x25

SWK28-31007-B1

2



9

Clamping and locating angle

175x50x175-KC

SWK28-30005-B1

4



10

Clamping and locating angle

175x50x175-KK

SWK28-30003-B1

4



11

Clamping and locating angle

175x50x275

SWK28-30006-B1

4



12

Locating disk

50xφ75x25

SWK28-34001-B1

2



13

Locating disk

75xφ100x25

SWK28-34002-B1

2



14

300 locating angle

275x100x300-L

SWK28-22101-B1

1



15

300 locating angle

275x100x300-R

SWK28-22102-B1

1



16

600 locating angle

325x100x600-L

SWK28-22103-B1

1



17

600 locating angle

325x100x600-R

SWK28-22104-B1

1



18

800 locating angle

375x100x800-L

SWK28-22105-B1

1



19

800 locating angle

375x100x800-R

SWK28-22106-B1

1



20

V-block locations

φ58/130°steel

SWK28-33001-B1

8



21

Connection Bolts A

φ28x50

SWK28-60601-B1

4



22

Tool Cart

1000x600x1100

SWK28-83001-B0

1



23

Pump Bottle

1L

SWK28-90201-B0

1



24

Ball end hex wrench

14#10#

SWK28-90301-B0

1



25

Brush

φ30x150

SWK28-90401-B0

1



26

Bench Stone

180x60x30

SWK28-90101-B0

1



27

summation





105




Welding table selection

3D steel welding table,standard grid 100x100 (mm) welding table

No.

Spec.

Painting on non-working surface

Phosphating Blackening

Plasma Nitride

Hardened tool steel + Nitriding

Hard Chrome plating

Leg QTY

1

1000x1000x200

SWK28-10001-B0

SWK28-10001-B1

SWK28-10001-B2

SWK28-10001-B3

SWK28-10001-B4

4

2

1200x1200x200

SWK28-10002-B0

SWK28-10002-B1

SWK28-10002-B2

SWK28-10002-B3

SWK28-10002-B4

4

3

1500x1000x200

SWK28-10003-B0

SWK28-10003-B1

SWK28-10003-B2

SWK28-10003-B3

SWK28-10003-B4

4

4

1500x1500x200

SWK28-10004-B0

SWK28-10004-B1

SWK28-10004-B2

SWK28-10004-B3

SWK28-10004-B4

4

5

2000x1000x200

SWK28-10005-B0

SWK28-10005-B1

SWK28-10005-B2

SWK28-10005-B3

SWK28-10005-B4

4

6

2000x1500x200

SWK28-10006-B0

SWK28-10006-B1

SWK28-10006-B2

SWK28-10006-B3

SWK28-10006-B4

4

7

2400x1200x200

SWK28-10007-B0

SWK28-10007-B1

SWK28-10007-B2

SWK28-10007-B3

SWK28-10007-B4

6

8

3000x1500x200

SWK28-10008-B0

SWK28-10008-B1

SWK28-10008-B2

SWK28-10008-B3

SWK28-10008-B4

6

9

4000x2000x200

SWK28-10009-B0

SWK28-10009-B1

SWK28-10009-B2

SWK28-10009-B3

SWK28-10009-B4

11

10

3000x2000x200

SWK28-10010-B0

SWK28-10010-B1

SWK28-10010-B2

SWK28-10010-B3

SWK28-10010-B4

8

11

2000x2000x200

SWK28-10011-B0

SWK28-10011-B1

SWK28-10011-B2

SWK28-10011-B3

SWK28-10011-B4

5


3D steel welding table,Diagonal grid 100x100 (mm) welding table

No.

Spec.

Painting on non-working surface

Phosphating Blackening

Plasma Nitride

Hardened tool steel + Nitriding

Hard Chrome plating

Leg QTY

1

1000x1000x200

SWK28-10001-X0

SWK28-10001-X1

SWK28-10001-X2

SWK28-10001-X3

SWK28-10001-X4

4

2

1200x1200x200

SWK28-10002-X0

SWK28-10002-X1

SWK28-10002-X2

SWK28-10002-X3

SWK28-10002-X4

4

3

1500x1000x200

SWK28-10003-X0

SWK28-10003-X1

SWK28-10003-X2

SWK28-10003-X3

SWK28-10003-X4

4

4

1500x1500x200

SWK28-10004-X0

SWK28-10004-X1

SWK28-10004-X2

SWK28-10004-X3

SWK28-10004-X4

4

5

2000x1000x200

SWK28-10005-X0

SWK28-10005-X1

SWK28-10005-X2

SWK28-10005-X3

SWK28-10005-X4

4

6

2000x1500x200

SWK28-10006-X0

SWK28-10006-X1

SWK28-10006-X2

SWK28-10006-X3

SWK28-10006-X4

4

7

2400x1200x200

SWK28-10007-X0

SWK28-10007-X1

SWK28-10007-X2

SWK28-10007-X3

SWK28-10007-X4

6

8

3000x1500x200

SWK28-10008-X0

SWK28-10008-X1

SWK28-10008-X2

SWK28-10008-X3

SWK28-10008-X4

6

9

4000x2000x200

SWK28-10009-X0

SWK28-10009-X1

SWK28-10009-X2

SWK28-10009-X3

SWK28-10009-X4

11

10

3000x2000x200

SWK28-10010-X0

SWK28-10010-X1

SWK28-10010-X2

SWK28-10010-X3

SWK28-10010-X4

8

11

2000x2000x200

SWK28-10011-X0

SWK28-10011-X1

SWK28-10011-X2

SWK28-10011-X3

SWK28-10011-X4

5


2D steel welding table

No.

Spec.

Painting on non-working surface

Phosphating Blackening

Plasma Nitride

Hardened tool steel + Nitriding

Hard Chrome plating

Leg QTY

1

1000x1000x150

SWK28-11001-B0

SWK28-11001-B1

SWK28-11001-B2

SWK28-11001-B3

SWK28-11001-B4

4

2

1200x1200x150

SWK28-11002-B0

SWK28-11002-B1

SWK28-11002-B2

SWK28-11002-B3

SWK28-11002-B4

4

3

1500x1000x150

SWK28-11003-B0

SWK28-11003-B1

SWK28-11003-B2

SWK28-11003-B3

SWK28-11003-B4

4

4

1500x1500x150

SWK28-11004-B0

SWK28-11004-B1

SWK28-11004-B2

SWK28-11004-B3

SWK28-11004-B4

4

5

2000x1000x150

SWK28-11005-B0

SWK28-11005-B1

SWK28-11005-B2

SWK28-11005-B3

SWK28-11005-B4

4

6

2000x1500x150

SWK28-11006-B0

SWK28-11006-B1

SWK28-11006-B2

SWK28-11006-B3

SWK28-11006-B4

4

7

2400x1200x150

SWK28-11007-B0

SWK28-11007-B1

SWK28-11007-B2

SWK28-11007-B3

SWK28-11007-B4

4

8

3000x1500x200

SWK28-11008-B0

SWK28-11008-B1

SWK28-11008-B2

SWK28-11008-B3

SWK28-11008-B4

6

9

4000x2000x200

SWK28-11009-B0

SWK28-11009-B1

SWK28-11009-B2

SWK28-11009-B3

SWK28-11009-B4

11

10

3000x2000x200

SWK28-11010-B0

SWK28-11010-B1

SWK28-11010-B2

SWK28-11010-B3

SWK28-11010-B4

8


Choose support legs



Standard Square Leg

Fixable Standard Square Leg

Square Leg with brake caster

No.

Spec.

Products Code

Spec.

Products Code

Spec.

Products Code

1

80×200+50

SWK28-71001-B0

80×200+50

SWK28-71101-B0

80×200+150

SWK28-71201-B0

2

80×300+50

SWK28-71002-B0

80×300+50

SWK28-71102-B0

80×300+150

SWK28-71202-B0

3

80×400+50

SWK28-71003-B0

80×400+50

SWK28-71103-B0

80×400+150

SWK28-71203-B0

4

80×500+50

SWK28-71004-B0

80×500+50

SWK28-71104-B0

80×500+150

SWK28-71204-B0

5

80×600+50

SWK28-71005-B0

80×600+50

SWK28-71105-B0






Related Fixturing Kits Products

Fixturing Kits (system D16)
Fixturing Kits (system D16)
Fixturing Kits (system D22)
Fixturing Kits (system D22)
CopyRight©DONGGUAN SANWEI FLEXIBLE AUTO-EQUIPMENT CO.,LTD   Design:0086ZG   Admin   Mail
Twitter Facebook YouTube LinkedIn Instagram
