Fixturing Kits (system D16)

>D28 >D22

< >

Product Parameters

◆ A complete welding table system, including welding table and clamp accessories,

easy to use, we recommend 4 Fixturing Kits.

◆ Suitable for standard grid 50x50 (mm) welding table and Diagonal grid 50x50 (mm) welding table.

◆ The surface requirements of the fixture accessories listed in the list are recommended by default.

If there are other requirements, you can choose the corresponding product code in the Product Catalog.

◆ In order to facilitate the selection, we have listed the commonly used welding table sizes and their surface treatment. If the welding tables need other sizes and specifications, you can contact us offline.(Refer to the welding table selection below on this page)

◆ For easy selection, a support legs list is available below this page.If you need other support types, please contact us offline.

﹥﹥﹥Download the Fixturing Kits List

Product details:

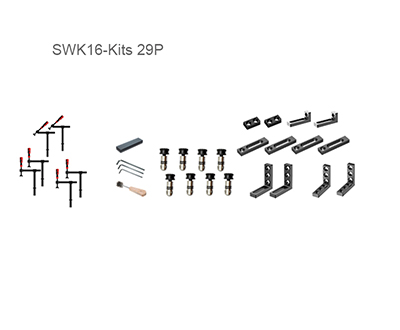

Kit code:SWK16-Kits 29P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	160x200	SWK16-51001-B1	4	Plastic Handle
2	45°Flexible Screw Clamp	160x200	SWK16-52001-B1	2	Plastic Handle
3	Bolts	D16x24	SWK28-60001-B0	8
4	Stops	115x30x12	SWK16-31003-B1	4
5	Stops	55x30x12	SWK16-31001-B1	2
6	Clamping and locating angle	90x30x40	SWK16-30002-B1	2
7	Clamping and locating angle	90x30x90-KC	SWK16-30005-B1	2
8	Clamping and locating angle	90x30x90-KK	SWK16-30003-B1	2
9	Bench Stone	200x50x25	SWK16-90101-B0	1
10	Ball end hex wrench	SW5	SWK16-90301-B0	1
11	Brush	φ18x150	SWK16-90401-B0	1
12	summation			29

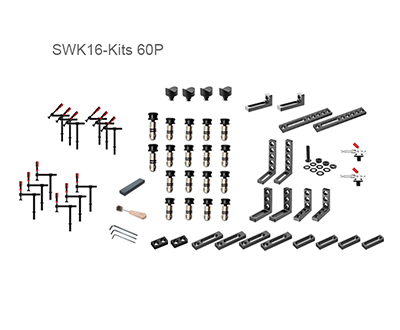

Kit code:SWK16-Kits 60P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	160x200	SWK16-51001-B1	6	Plastic Handle
2	45°Flexible Screw Clamp	160x200	SWK16-52001-B1	6	Plastic Handle
3	Bolts	φ16x24	SWK16-60001-B0	16
4	Bolts	φ16x36	SWK16-60002-B0	2
5	Stops	55x30x12	SWK16-31001-B1	2
6	Stops	90x30x12	SWK16-31002-B1	4
7	Stops	115x30x12	SWK16-31003-B1	4
8	Stops	300x50x12	SWK16-31007-B1	2
9	Clamping and locating angle	90x30x40	SWK16-30002-B1	2
10	Clamping and locating angle	90x30x90-KK	SWK16-30003-B1	2
11	Clamping and locating angle	90x30x90-KC	SWK16-30005-B1	2
12	Clamping and locating angle	90x30x140	SWK16-30006-B1	2
13	V-block locations	φ48/130°steel	SWK16-33001-B1	4
14	Toggle Clamp with round-base	SW-Y304-CM	SWK16-54002-B1	2	Horizontal
15	Spacer set	1/2/2.5/3/4/5/10/L50+5	SWK16-40101-B1	1
16	Bench Stone	180x60x30	SWK16-90101-B0	1
17	Ball end hex wrench	SW5	SWK16-90301-B0	1
18	Brush	φ18x150	SWK16-90401-B0	1
19	summation			60

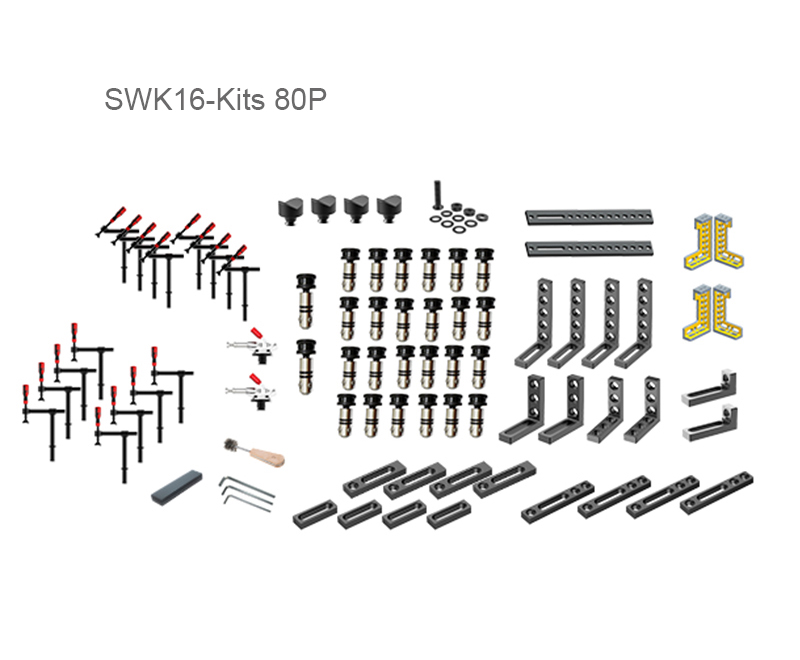

Kit code:SWK16-Kits 80P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	160x200	SWK16-51001-B1	8	Plastic Handle
2	45°Flexible Screw Clamp	160x200	SWK16-52001-B1	8	Plastic Handle
3	Bolts	φ16x24	SWK16-60001-B0	24
4	Bolts	φ16x36	SWK16-60002-B0	2
5	Stops	90x30x12	SWK16-31002-B1	4
6	Stops	115x30x12	SWK16-31003-B1	4
7	Stops	150x30x12	SWK16-31004-B1	4
8	Stops	400x50x12	SWK16-31008-B1	2
9	Clamping and locating angle	90x30x40	SWK16-30002-B1	2
10	Clamping and locating angle	90x30x90-KK	SWK16-30003-B1	2
11	Clamping and locating angle	90x30x90-KC	SWK16-30005-B1	2
12	Clamping and locating angle	90x30x140	SWK16-30006-B1	4
13	200 locating angle	150x50x200-L	SWK16-22101-B1	2
14	200 locating angle	150x50x200-R	SWK16-22102-B1	2
15	V-block locations	φ48/130°steel	SWK16-33001-B1	4
16	Toggle Clamp with round-base	SW-Y304-CM	SWK16-54002-B1	2	Horizontal
17	Spacer set	1/2/2.5/3/4/5/10/L50+5	SWK16-40101-B1	1
18	Bench Stone	180x60x30	SWK16-90101-B0	1
19	Ball end hex wrench	SW5	SWK16-90301-B0	1
20	Brush	φ18x150	SWK16-90401-B0	1
21	summation			80

Kit code:SWK16-Kits 112P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	160x200	SWK16-51001-B1	8	Plastic Handle
2	45°Flexible Screw Clamp	160x200	SWK16-52001-B1	8	Plastic Handle
3	Bolts	φ16x24	SWK16-60001-B0	32
4	Bolts	φ16x36	SWK16-60002-B0	4
5	Countersunk Bolts	φ16x24	SWK16-60201-B1	4
6	Stops	55x30x12	SWK16-31001-B1	4
7	Stops	90x30x12	SWK16-31002-B1	5
8	Stops	115x30x12	SWK16-31003-B1	5
9	Stops	150x30x12	SWK16-31004-B1	4
10	Stops	300x50x12	SWK16-31007-B1	4
11	Stops	400x50x12	SWK16-31008-B1	2
12	Clamping and locating angle	90x30x40	SWK16-30002-B1	4
13	Clamping and locating angle	90x30x90-KK	SWK16-30003-B1	3
14	Clamping and locating angle	90x30x90-KC	SWK16-30005-B1	3
15	Clamping and locating angle	90x30x90-CC	SWK16-30004-B1	2
16	Clamping and locating angle	90x30x140	SWK16-30006-B1	4
17	200 locating angle	150x50x200-L	SWK16-22101-B1	1
18	200 locating angle	150x50x200-R	SWK16-22102-B1	1
19	V-block locations	φ48/130°steel	SWK16-33001-B1	8
20	Toggle Clamp with round-base	1/2/2.5/3/4/5/10/L50+5	SWK16-40101-B1	2
21	Tool Cart	1000x600x1100	SWK28-83001-B0	1
22	Bench Stone	180x60x30	SWK16-90101-B0	1
23	Ball end hex wrench	SW5	SWK16-90301-B0	1
24	Brush	φ18x150	SWK16-90401-B0	1
25	summation			112

3D steel welding table,standard grid 50x50 (mm) welding table
No.	Spec.	Painting on non-working surface	Phosphating Blackening	Plasma Nitride	Hardened tool steel + Nitriding	Hard Chrome plating	Leg QTY
1	1000x500x100	SWK16-10001-B0	SWK16-10001-B1	SWK16-10001-B2	SWK16-10001-B3	SWK16-10001-B4	4
2	1000x1000x100	SWK16-10002-B0	SWK16-10002-B1	SWK16-10002-B2	SWK16-10002-B3	SWK16-10002-B4	4
3	1200x800x100	SWK16-10003-B0	SWK16-10003-B1	SWK16-10003-B2	SWK16-10003-B3	SWK16-10003-B4	4
4	1200x1200x100	SWK16-10004-B0	SWK16-10004-B1	SWK16-10004-B2	SWK16-10004-B3	SWK16-10004-B4	4
5	1500x1000x100	SWK16-10005-B0	SWK16-10005-B1	SWK16-10005-B2	SWK16-10005-B3	SWK28-10003-B4	4
6	1500x1500x100	SWK16-10006-B0	SWK16-10006-B1	SWK16-10006-B2	SWK16-10006-B3	SWK16-10006-B4	4
7	2000x1000x100	SWK16-10007-B0	SWK16-10007-B1	SWK16-10007-B2	SWK16-10007-B3	SWK16-10007-B4	4
8	2400x1200x100	SWK16-10008-B0	SWK16-10008-B1	SWK16-10008-B2	SWK16-10008-B3	SWK16-10008-B4	6
9	3000x1500x100	SWK16-10009-B0	SWK16-10009-B1	SWK16-10009-B2	SWK16-10009-B3	SWK16-10009-B4	6
10	1500x800x100	SWK16-10010-B0	SWK16-10010-B1	SWK16-10010-B2	SWK16-10010-B3	SWK16-10010-B4	4

2D steel welding table
No.	Spec.	Painting on non-working surface	Phosphating Blackening	Plasma Nitride	Hardened tool steel + Nitriding	Hard Chrome plating	Leg QTY
1	1000x500x100	SWK16-11001-B0	SWK16-11001-B1	SWK16-11001-B2	SWK16-11001-B3	SWK16-11001-B4	4
2	1000x1000x100	SWK16-11002-B0	SWK16-11002-B1	SWK16-11002-B2	SWK16-11002-B3	SWK16-11002-B4	4
3	1200x800x100	SWK16-11003-B0	SWK16-11003-B1	SWK16-11003-B2	SWK16-11003-B3	SWK16-11003-B4	4
4	1200x1200x100	SWK16-11004-B0	SWK16-11004-B1	SWK16-11004-B2	SWK16-11004-B3	SWK16-11004-B4	4
5	1500x1000x100	SWK16-11005-B0	SWK16-11005-B1	SWK16-11005-B2	SWK16-11005-B3	SWK16-11005-B4	4
6	1500x1500x100	SWK16-11006-B0	SWK16-11006-B1	SWK16-11006-B2	SWK16-11006-B3	SWK16-11006-B4	4
7	2000x1000x100	SWK16-11007-B0	SWK16-11007-B1	SWK16-11007-B2	SWK16-11007-B3	SWK16-11007-B4	4
8	2400x1200x100	SWK16-11008-B0	SWK16-11008-B1	SWK16-11008-B2	SWK16-11008-B3	SWK16-11008-B4	6
9	1500x800x100	SWK16-11010-B0	SWK16-11010-B1	SWK16-11010-B2	SWK16-11010-B3	SWK16-11010-B4	4

Choose support legs
	Standard Square Leg		Fixable Standard Square Leg		Square Leg with brake caster
No.	Spec.	Products Code	Spec.	Products Code	Spec.	Products Code
1	□70×200+50	SWK16-71001	□70×200+50	SWK16-71101	□70×200+150	SWK16-71201
2	□70×300+50	SWK16-71002	□70×300+50	SWK16-71102	□70×300+150	SWK16-71202
3	□70×400+50	SWK16-71003	□70×400+50	SWK16-71103	□70×400+150	SWK16-71203
4	□70×500+50	SWK16-71004	□70×500+50	SWK16-71104	□70×500+150	SWK16-71204
5	□70×600+50	SWK16-71005	□70×600+50	SWK16-71105
