Fixturing Kits (system D22)

>D28 >D16

< >

Product Parameters

◆ A complete welding table system, including welding table and clamp accessories,

easy to use, we recommend 4 Fixturing Kits.

◆ Suitable for standard grid 100x100 (mm) welding table and Diagonal grid 100x100 (mm) welding table.

◆ The surface requirements of the fixture accessories listed in the list are recommended by default.

If there are other requirements, you can choose the corresponding product code in the Product Catalog.

◆ In order to facilitate the selection, we have listed the commonly used welding table sizes and their surface treatment. If the welding tables need other sizes and specifications, you can contact us offline.(Refer to the welding table selection below on this page)

◆ For easy selection, a support legs list is available below this page.If you need other support types, please contact us offline.

﹥﹥﹥Download the Fixturing Kits List

Product details:

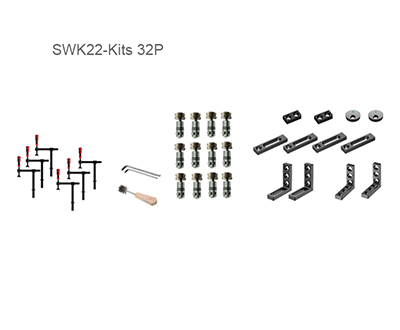

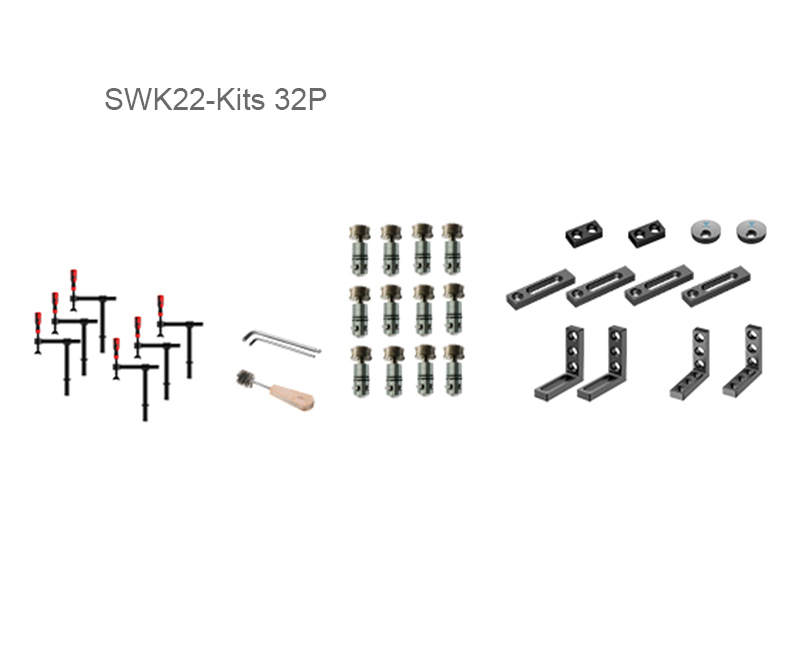

Kit code:SWK22-Kits 32P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	220x220	SWK22-51001-B1	6	Plastic Handle
2	Bolts	φ22x36	SWK22-60001-B0	12
3	Stops	225x50x18	SWK22-31003-B1	4
4	Stops	100x50x18	SWK22-31001-B1	2
5	Clamping and locating angle	175x50x175-KC	SWK22-30005-B1	2
6	Clamping and locating angle	175x50x175-KK	SWK22-30003-B1	2
7	Locating disk	50xφ75x18	SWK22-34001-B1	2
8	Ball end hex wrench	14#、10#	SWK22-90301-B0	1
9	Brush	φ24x150	SWK22-90401-B0	1
10	summation			32

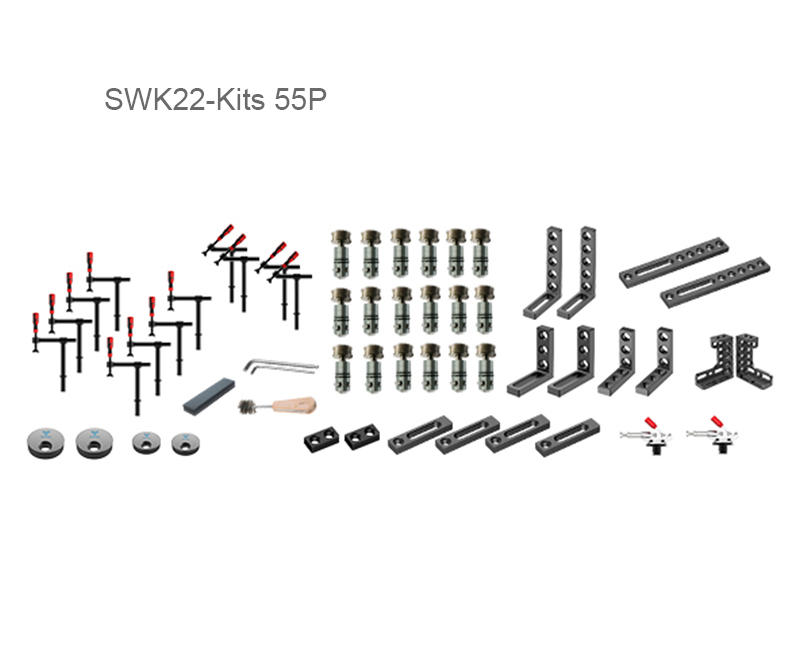

Kit code:SWK22-Kits 55P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	220x220	SWK22-51001-B1	6	Plastic Handle
2	180°Flexible Screw Clamp	220x320	SWK22-51002-B1	2	Plastic Handle
3	45°Flexible Screw Clamp	220x220	SWK22-52001-B1	4	Plastic Handle
4	Bolts	φ22x36	SWK22-60001-B0	18
5	Stops	225x50x18	SWK22-31003-B1	4
6	Stops	100x50x18	SWK22-31001-B1	2
7	Stops	500x75x18	SWK22-31006-B1	2
8	Clamping and locating angle	175x50x175-KC	SWK22-30005-B1	2
9	Clamping and locating angle	175x50x175-KK	SWK22-30003-B1	2
10	Clamping and locating angle	175x50x275	SWK22-30006-B1	2
11	Locating disk	50xφ75x18	SWK22-34001-B1	2
12	Locating disk	75xφ100x18	SWK22-34002-B1	2
13	300 locating angle	275x100x300-L	SWK22-22101-B1	1
14	300 locating angle	275x100x300-R	SWK22-22102-B1	1
15	Toggle Clamp with round-base	SW-Y304-CM	SWK22-54002-B1	2	Horizontal
16	Bench Stone	180x60x30	SWK22-90101-B0	1
17	Ball end hex wrench	14#、10#	SWK22-90301-B0	1
18	Brush	φ24x150	SWK22-90401-B0	1
19	summation			55

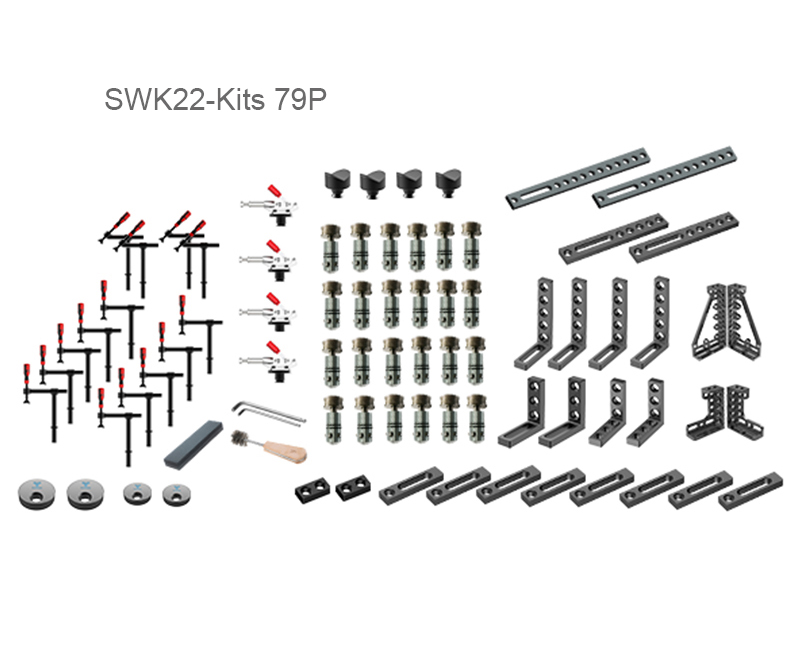

Kit code:SWK22-Kits 79P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	220x220	SWK22-51001-B1	6	Plastic Handle
2	180°Flexible Screw Clamp	220x320	SWK22-51002-B1	4	Plastic Handle
3	45°Flexible Screw Clamp	220x220	SWK22-52001-B1	4	Plastic Handle
4	Bolts	φ22x36	SWK22-60001-B0	24
5	Stops	225x50x18	SWK22-31003-B1	8
6	Stops	100x50x18	SWK22-31001-B1	2
7	Stops	500x75x18	SWK22-31006-B1	2
8	Stops	800x100x18	SWK22-31007-B1	2
9	Clamping and locating angle	175x50x175-KC	SWK22-30005-B1	2
10	Clamping and locating angle	175x50x175-KK	SWK22-30003-B1	2
11	Clamping and locating angle	175x50x275	SWK22-30006-B1	4
12	Locating disk	50xφ75x18	SWK22-34001-B1	2
13	Locating disk	75xφ100x18	SWK22-34002-B1	2
14	300 locating angle	275x100x300-L	SWK22-22101-B1	1
15	300 locating angle	275x100x300-R	SWK22-22102-B1	1
16	600 locating angle	325x100x600-L	SWK28-22103-B1	1
17	600 locating angle	325x100x600-R	SWK28-22104-B1	1
18	V-block locations	φ58/130°steel	SWK22-33001-B1	4
19	Toggle Clamp with round-base	SW-Y304-CM	SWK22-54002-B1	4	Horizontal
20	Bench Stone	180x60x30	SWK22-90101-B0	1
21	Ball end hex wrench	14#、10#	SWK22-90301-B0	1
22	Brush	φ24x150	SWK22-90401-B0	1
23	summation			79

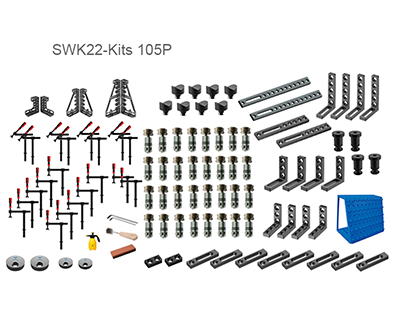

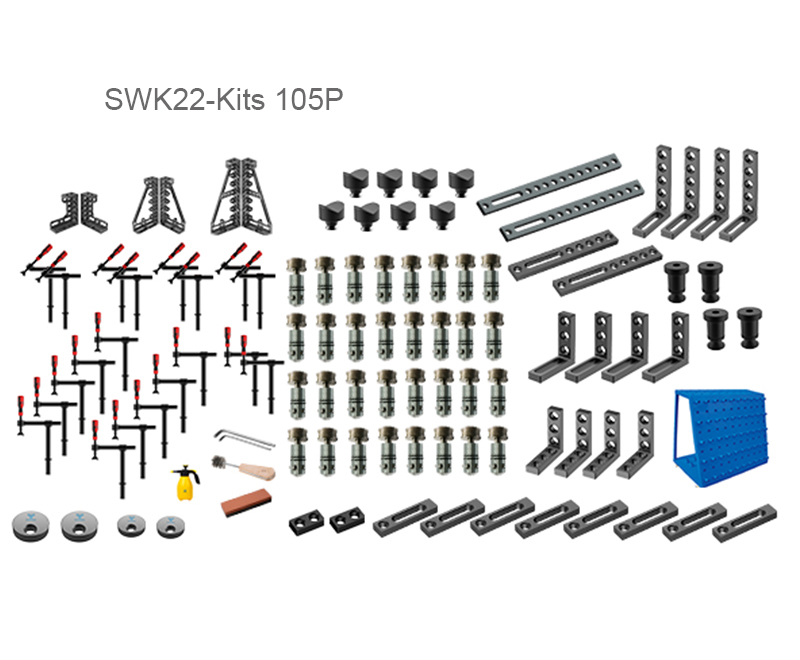

Kit code:SWK22-Kits 105P
No.	Description	Spec.	Products Code	Quty.	Remarks
1	180°Flexible Screw Clamp	220x220	SWK22-51001-B1	6	Plastic Handle
2	180°Flexible Screw Clamp	220x320	SWK22-51002-B1	6	Plastic Handle
3	45°Flexible Screw Clamp	220x220	SWK22-52001-B1	8	Plastic Handle
4	Bolts	φ22x36	SWK22-60001-B0	32
5	Stops	225x50x18	SWK22-31003-B1	8
6	Stops	100x50x18	SWK22-31001-B1	2
7	Stops	500x75x18	SWK22-31006-B1	2
8	Stops	800x100x18	SWK22-31007-B1	2
9	Clamping and locating angle	175x50x175-KC	SWK22-30005-B1	4
10	Clamping and locating angle	175x50x175-KK	SWK22-30003-B1	4
11	Clamping and locating angle	175x50x275	SWK22-30006-B1	4
12	Locating disk	50xφ75x18	SWK22-34001-B1	2
13	Locating disk	75xφ100x18	SWK22-34002-B1	2
14	300 locating angle	275x100x300-L	SWK22-22101-B1	1
15	300 locating angle	275x100x300-R	SWK22-22102-B1	1
16	600 locating angle	325x100x600-L	SWK22-22103-B1	1
17	600 locating angle	325x100x600-R	SWK22-22104-B1	1
18	800 locating angle	375x100x800-L	SWK22-22105-B1	1
19	800 locating angle	375x100x800-R	SWK22-22106-B1	1
20	V-block locations	φ58/130°steel	SWK22-33001-B1	8
21	Connection Bolts A	φ22x36	SWK22-60601-B1	4
22	Tool Cart	1000x600x1100	SWK22-83001-B0	1
23	Pump Bottle	1L	SWK22-90201-B0	1
24	Ball end hex wrench	14#、10#	SWK22-90301-B0	1
25	Brush	φ24x150	SWK22-90401-B0	1
26	Bench Stone	180x60x30	SWK22-90101-B0	1
27	summation			105

3D steel welding table,standard grid 100x100 (mm) welding table
No.	Spec.	Painting on non-working surface	Phosphating Blackening	Plasma Nitride	Hardened tool steel + Nitriding	Hard Chrome plating	Leg QTY
1	1000x1000x150	SWK22-10001-B0	SWK22-10001-B1	SWK22-10001-B2	SWK22-10001-B3	SWK22-10001-B4	4
2	1200x1200x150	SWK22-10002-B0	SWK22-10002-B1	SWK22-10002-B2	SWK22-10002-B3	SWK22-10002-B4	4
3	1500x1000x150	SWK22-10003-B0	SWK22-10003-B1	SWK22-10003-B2	SWK22-10003-B3	SWK22-10003-B4	4
4	1500x1500x150	SWK22-10004-B0	SWK22-10004-B1	SWK22-10004-B2	SWK22-10004-B3	SWK22-10004-B4	4
5	2000x1000x150	SWK22-10005-B0	SWK22-10005-B1	SWK22-10005-B2	SWK22-10005-B3	SWK22-10005-B4	4
6	2000x1500x150	SWK22-10006-B0	SWK22-10006-B1	SWK22-10006-B2	SWK22-10006-B3	SWK22-10006-B4	4
7	2400x1200x150	SWK22-10007-B0	SWK22-10007-B1	SWK22-10007-B2	SWK22-10007-B3	SWK22-10007-B4	6
8	3000x1500x150	SWK22-10008-B0	SWK22-10008-B1	SWK22-10008-B2	SWK22-10008-B3	SWK22-10008-B4	6
9	2000x2000x150	SWK22-10011-B0	SWK22-10011-B1	SWK22-10011-B2	SWK22-10011-B3	SWK22-10011-B4	6

3D steel welding table,Diagonal grid 100x100 (mm) welding table
No.	Spec.	Painting on non-working surface	Phosphating Blackening	Plasma Nitride	Hardened tool steel + Nitriding	Hard Chrome plating	Leg QTY
1	1000x1000x150	SWK22-10001-X0	SWK22-10001-X1	SWK22-10001-X2	SWK22-10001-X3	SWK22-10001-X4	4
2	1200x1200x150	SWK22-10002-X0	SWK22-10002-X1	SWK22-10002-X2	SWK22-10002-X3	SWK22-10002-X4	4
3	1500x1000x150	SWK22-10003-X0	SWK22-10003-X1	SWK22-10003-X2	SWK22-10003-X3	SWK22-10003-X4	4
4	1500x1500x150	SWK22-10004-X0	SWK22-10004-X1	SWK22-10004-X2	SWK22-10004-X3	SWK22-10004-X4	4
5	2000x1000x150	SWK22-10005-X0	SWK22-10005-X1	SWK22-10005-X2	SWK22-10005-X3	SWK22-10005-X4	4
6	2000x1500x150	SWK22-10006-X0	SWK22-10006-X1	SWK22-10006-X2	SWK22-10006-X3	SWK22-10006-X4	4
7	2400x1200x150	SWK22-10007-X0	SWK22-10007-X1	SWK22-10007-X2	SWK22-10007-X3	SWK22-10007-X4	6
8	3000x1500x150	SWK22-10008-X0	SWK22-10008-X1	SWK22-10008-X2	SWK22-10008-X3	SWK22-10008-X4	6
9	2000x2000x150	SWK22-10011-X0	SWK22-10011-X1	SWK22-10011-X2	SWK22-10011-X3	SWK22-10011-X4	6

2D steel welding table
No.	Spec.	Painting on non-working surface	Phosphating Blackening	Plasma Nitride	Hardened tool steel + Nitriding	Hard Chrome plating	Leg QTY
1	1000x1000x150	SWK22-11001-B0	SWK22-11001-B1	SWK22-11001-B2	SWK22-11001-B3	SWK22-11001-B4	4
2	1200x1200x150	SWK22-11002-B0	SWK22-11002-B1	SWK22-11002-B2	SWK22-11002-B3	SWK22-11002-B4	4
3	1500x1000x150	SWK22-11003-B0	SWK22-11003-B1	SWK22-11003-B2	SWK22-11003-B3	SWK22-11003-B4	4
4	1500x1500x150	SWK22-11004-B0	SWK22-11004-B1	SWK22-11004-B2	SWK22-11004-B3	SWK22-11004-B4	4
5	2000x1000x150	SWK22-11005-B0	SWK22-11005-B1	SWK22-11005-B2	SWK22-11005-B3	SWK22-11005-B4	4
6	2000x1500x150	SWK22-11006-B0	SWK22-11006-B1	SWK22-11006-B2	SWK22-11006-B3	SWK22-11006-B4	4
7	2400x1200x150	SWK22-11007-B0	SWK22-11007-B1	SWK22-11007-B2	SWK22-11007-B3	SWK22-11007-B4	4
8	3000x1500x150	SWK22-11008-B0	SWK22-11008-B1	SWK22-11008-B2	SWK22-11008-B3	SWK22-11008-B4	6

Choose support legs
	Standard Square Leg		Fixable Standard Square Leg		Square Leg with brake caster
No.	Spec.	Products Code	Spec.	Products Code	Spec.	Products Code
1	□80×200+50	SWK22-71001-B0	□80×200+50	SWK22-71101-B0	□80×200+150	SWK22-71201-B0
2	□80×300+50	SWK22-71002-B0	□80×300+50	SWK22-71102-B0	□80×300+150	SWK22-71202-B0
3	□80×400+50	SWK22-71003-B0	□80×400+50	SWK22-71103-B0	□80×400+150	SWK22-71203-B0
4	□80×500+50	SWK22-71004-B0	□80×500+50	SWK22-71104-B0	□80×500+150	SWK22-71204-B0
5	□80×600+50	SWK22-71005-B0	□80×600+50	SWK22-71105-B0
