The operation is simple, easy to use , And to win the opportunity to market quickly ,Compared with the ordinary plate welding tables ,
It can improve the working efficiency of 30%-50%, save 15% of raw materials, save money by 20%.
It has the advantages of accurate positioning,convenient disassembly, high interchangeability,
It provides a standardized, green environmental protection, new concept flexible welding process equipment for the welding industry.
We provide:
① 1200X800 (Product code:SW-H1200)
② 1500X800 (Product code:SW-H1500)
Or contact us for an additional size to meet your specific needs.

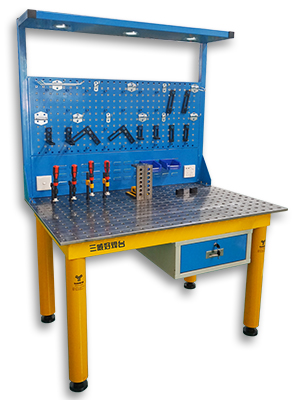

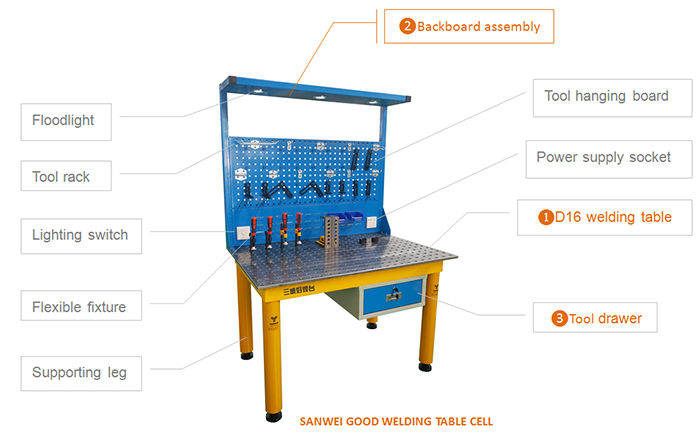

Basic configuration: ❶(D16 welding table) + ❷(Backboard assembly) + ❸(Tool drawer) + Legs(4pcs)
☆ ❷ Backboard assembly is include hanging gear
Fixturing configuration: You can be in D16 Fixturing Kits (① 29pcs Kit ② 60pcs Kit ③ 80pcs Kit ④ 112pcs Kit )
Ordering Remark: product name + product code + Kit code + QTY Order labeling example: Good Welding Table + SW-H1200 + SWK16-PE/PL1600-60 + 5
TECHNICAL PARAMETER SPECIFICATION
1. Good welding table belongs to the D16 hole series of 2D table.
2. Material ① High strength steel (recommend) ② Gray cast iron ③ Stainless steel(SUS304)
3. Manufacturing precision
① Table surface mesh line specifications:50x50±0.05mm;table two adjacent edge X, Y direction of each millimeter scale line.
② The pore size and precision:φ16.08±0.02mm
③ hole spacing:50±0.02mm ④ Plane degree:0.1mm/m2 ⑤ Verticality:0.1mm/200mm
⑥ Parallel degree: 0.1mm/1000mm ⑦ Surface finish of platform: 1.6μm
⑧ Parallelism and perpendicularity (adjacent two sides):0.1/1000mm
⑨ Platform bearing: Supporting leg type: 1.2T/m2
4. Industry application
①New product research and development

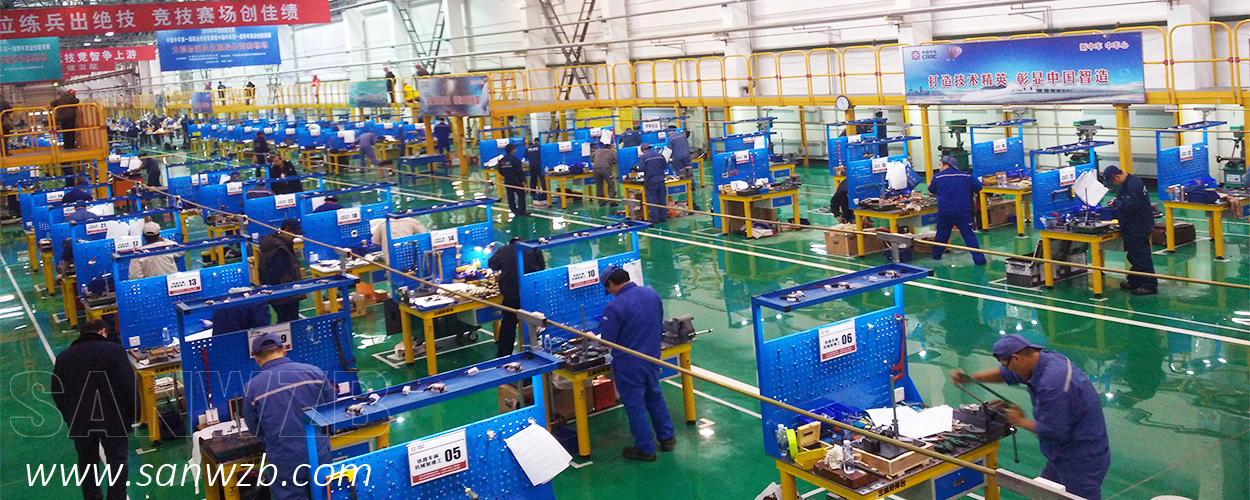

②Workshop manual welding production line
③Welding technical school training
5. Other function instructions(List of hangers,Contains, but is not limited)
Good Welding Table Cell - Multi Function Welding Table Cell , Where there is welding, here it is.
