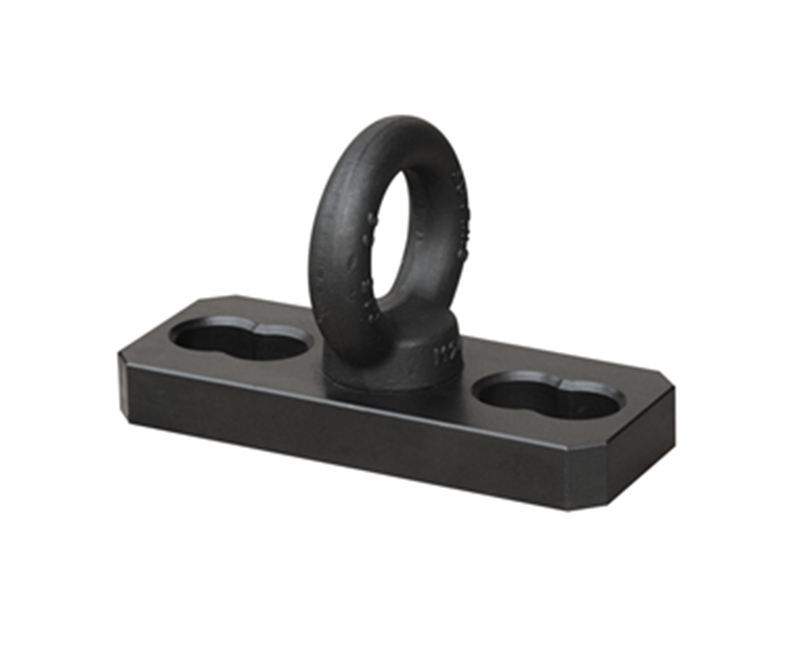

Transport Ring

  • Transport Ring
  • Transport Ring
  • Transport Ring
  • Transport Ring
Product Parameters

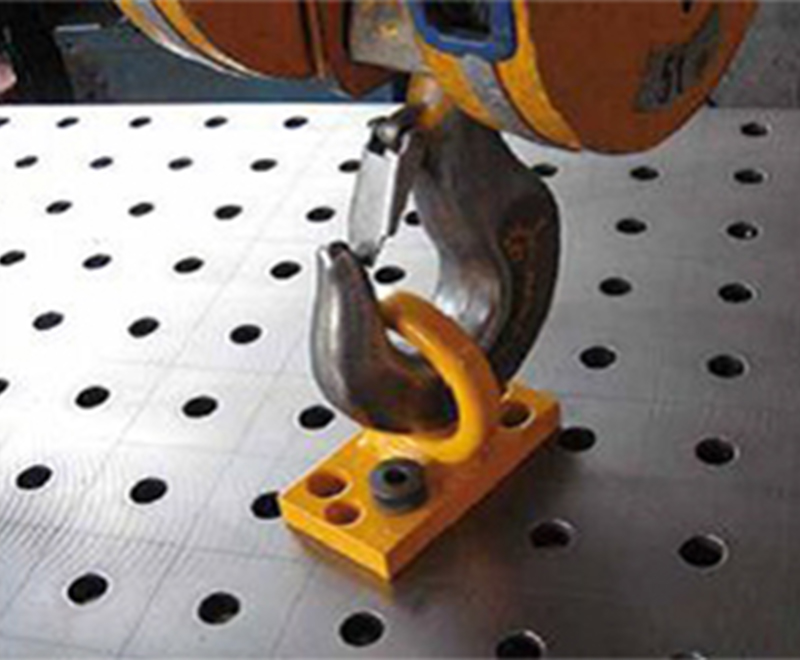

● For fast, easy and safe transportation of all heavy system components (e.g. worktable)
● Transport ring must be attached with at least 2x bolts!

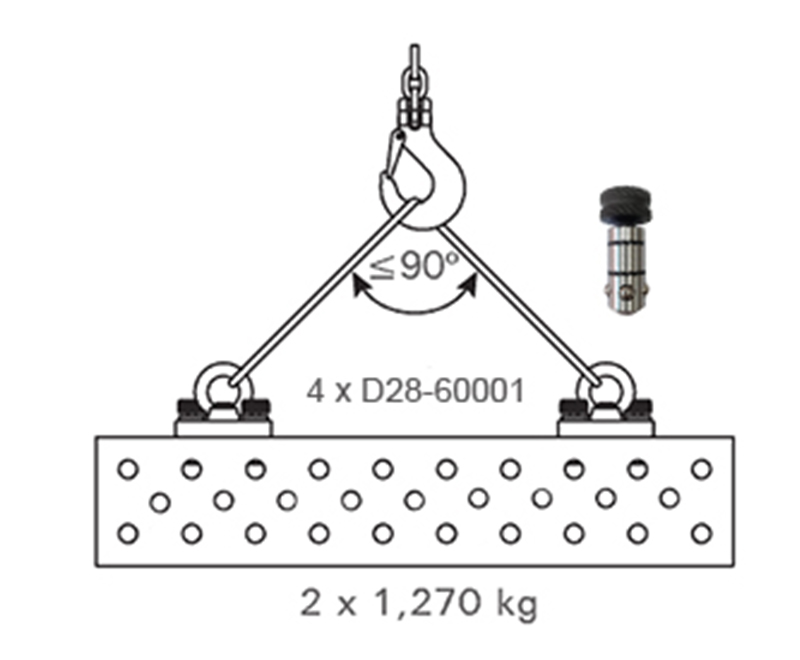

● The transport ring must be fastened centrally on the worktop. When using two transport rings, these must be fastened centrally and symmetrically on the worktop. The maximum diagonal pull may not exceed 45° here (see warnings)
● Loads may only be applied to the transport ring in the ring plane! Do not exceed the load capacity!
● The general regulations for means of transport have to be observed when using the transport ring!
● Only undamaged Transport ring and PPC / PC-bolts may be used!
● Internal operating instructions must be observed!
● Observe the warnings on the transport ring!
● Countersunk head bolts may not be used!
● Do not allow personnel to stand underneath suspended lots.

Technical data



Description

Spec.

Products Code

Weightkg

D28 Transport ring

190x60x140

SWK28-60001-B0

3.9

D22 Transport ring

190x60x140

SWK22-60001-B0

3.9

D16 Transport ring

140x140x100

SWK16-60001-B0

   D28 Transport ring:

                      Max. safety weight:1800kg                                                    Max. safety weight:2540kg
   D22 Transport ring:                                                                                                                                                   D16 Transport ring:

                   Max. safety weight:1800kg                                                    Max. safety weight:2540kg                                            Max. safety weight:1400kg                                            Max. safety weight:2000kg
